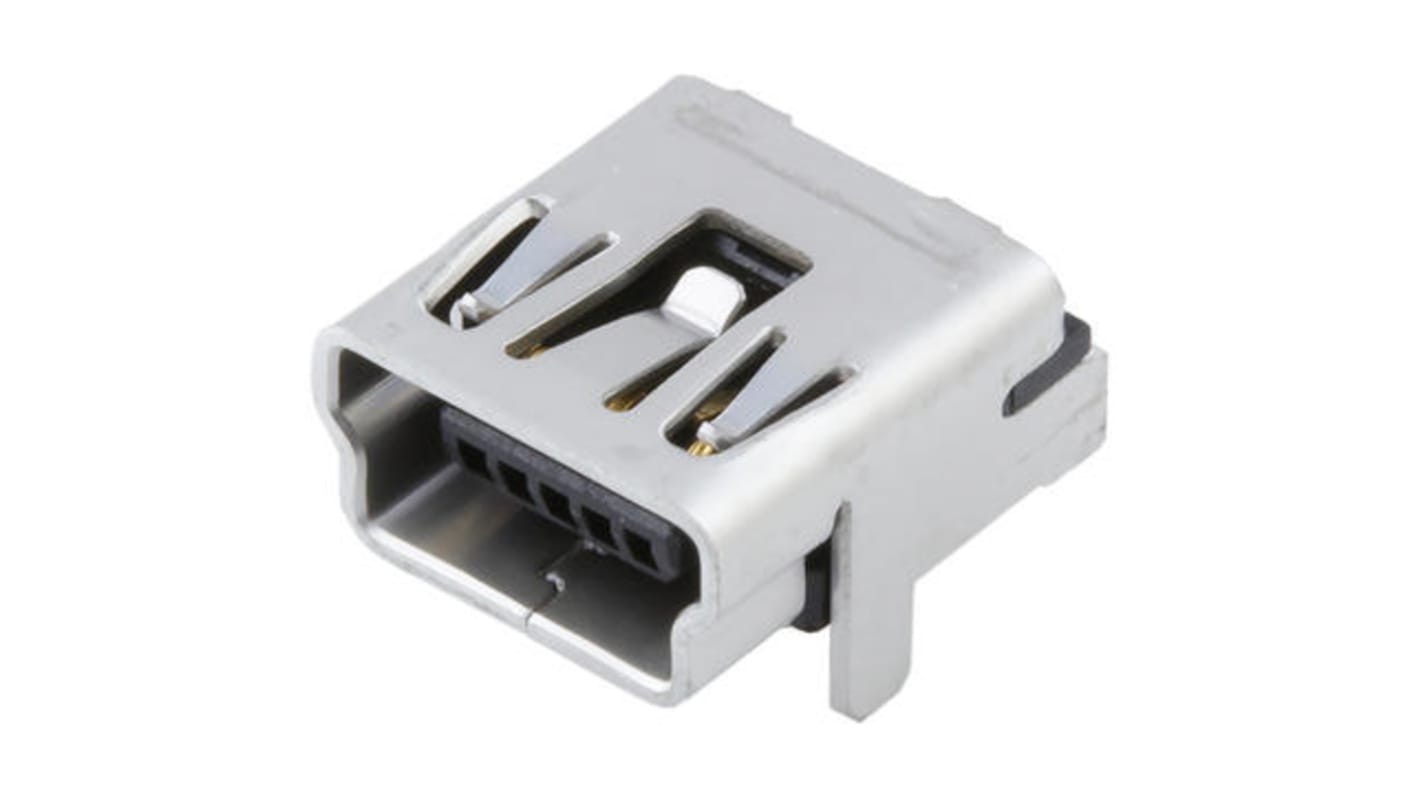

Molex Right Angle, Through Hole, Socket- Single Port Type Mini 2.0 USB Connector

This mini USB connector is designed for high-performance applications that require reliable electrical connectivity. It offers a robust through-hole solution for various mounting options, making it essential for professionals in electrical, mechanical, and automation sectors. Its compact design facilitates easy integration with smaller devices.

• High current capability rated at 1.0A for efficient power transfer
• Right-angle configuration addresses space limitations in confined areas
• Solder termination method ensures secure and stable connections
• Constructed from copper alloy for improved conductivity and durability
• Complies with USB 2.0 specifications for broad compatibility and performance

• Ideal for wire-to-board connections in compact electronic devices
• Suitable for automation systems that need space-saving connectors
• Commonly used in circuit boards for consumer electronics

Solder the connector's tails onto the printed circuit board using proper soldering techniques. Ensure the plating is clean and free from oxidation for optimal adhesion.

Yes, it meets USB 2.0 specifications, ensuring compatibility with devices that use this standard.

This component functions effectively within a temperature range of -20°C to +85°C, making it suitable for diverse environmental conditions.

It does not have water or dustproof ratings, so it is best used in controlled environments to avoid moisture-related issues.

A PCB thickness of approximately 1.00mm is advised for optimal performance and stability with this connector.
