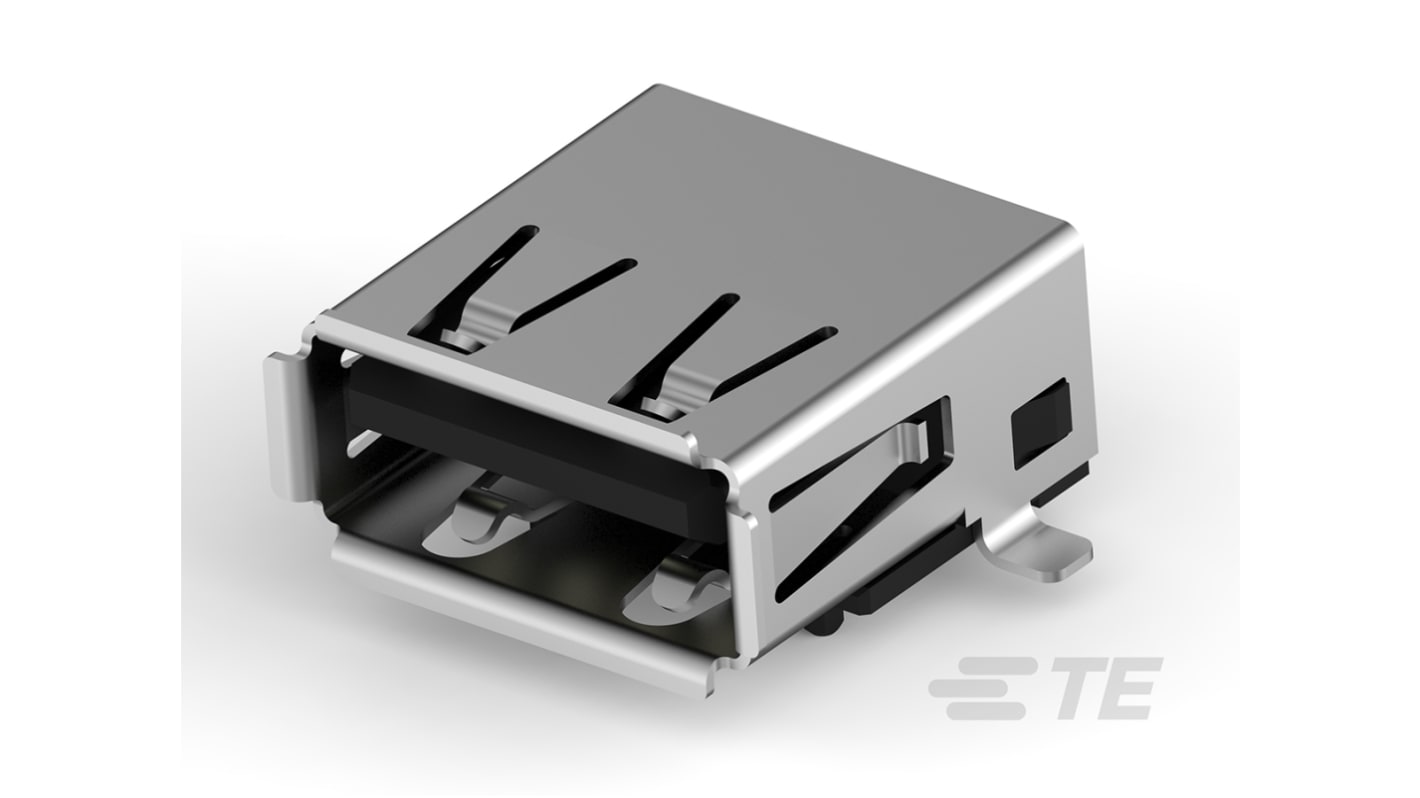

TE Connectivity Right Angle, SMT, Socket Type A 2.0 USB Connector

USB Type=A, USB Version=2.0, Size=Standard, Connector Style=Receptacle, Orientation=Right Angle, Number of Ports=1, Number of Positions=4, Offset=4.13 mm, Shell Plating Material=Tin, Contact Current Rating (Max)=1 A, Contact Mating Area Plating Thickness=.76 μm, Contact Termination Type=Surface Mount, Termination Method to Printed Circuit Board=Surface Mount, Termination Method=Solder, Locating Posts=With, Mounting Location=Top, Locking Feature=With, PCB Connector Seating=Offset, PCB Mount Retention Type=SMT Hold-Down, Centerline (Pitch)=2 mm,2.5 mm, Housing Color=Natural, PCB Thickness (Recommended)=1.2 mm, Soldering Temperature (Max)=240 °C, Mating Cycles (Max)=1500, Operating Temperature Range=-55 – 85 °C, Halogen Free=No, Pick & Place Capable=No, Circuit Application=Power & Signal, UL Flammability Rating=UL 94V-0, Packaging Method=Box & Tray,Reel, Packaging Quantity=300

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
