FTDI Chip UART SIE, UART 20-Pin SSOP, FT221XS-R
- RS Stock No.:
- 923-1600
- Mfr. Part No.:
- FT221XS-R
- Brand:
- FTDI Chip

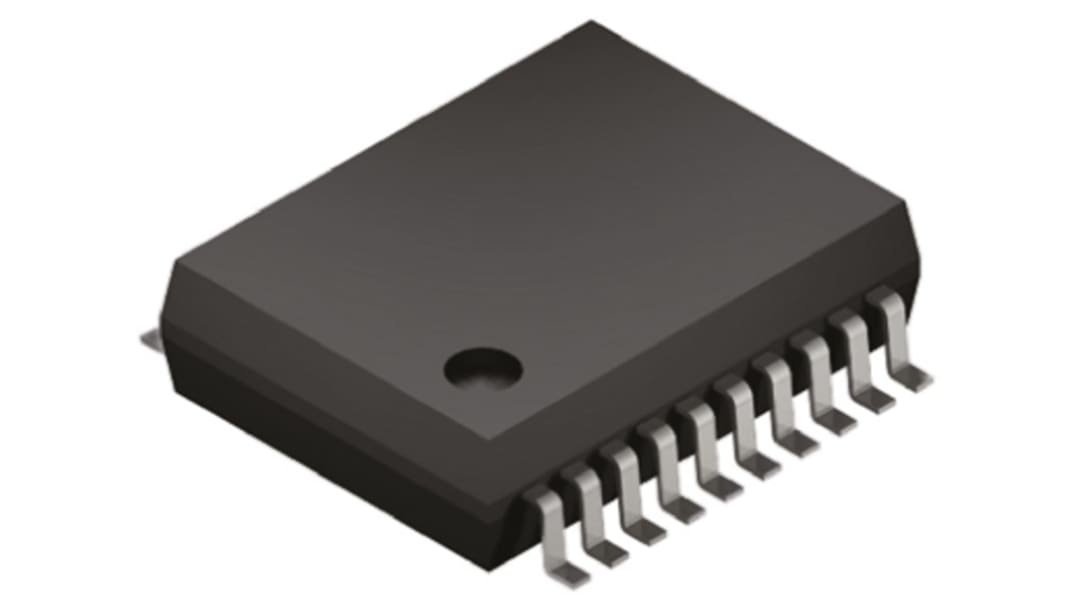

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 923-1600
- Mfr. Part No.:
- FT221XS-R
- Brand:
- FTDI Chip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FTDI Chip | |
| Number of Channels per Chip | 1 | |
| Standard Supported | SIE, UART | |
| Transmit FIFO | 512B | |
| Receive FIFO | 512B | |
| Maximum Data Rate | 1Mbit/s | |
| Transmitter and Receiver FIFO Counter | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Typical Operating Supply Voltage | 5 V | |
| Dimensions | 0.344 x 0.157 x 0.059in | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand FTDI Chip | ||
Number of Channels per Chip 1 | ||
Standard Supported SIE, UART | ||
Transmit FIFO 512B | ||
Receive FIFO 512B | ||
Maximum Data Rate 1Mbit/s | ||
Transmitter and Receiver FIFO Counter Yes | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 20 | ||
Typical Operating Supply Voltage 5 V | ||
Dimensions 0.344 x 0.157 x 0.059in | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- TW
FT220X, FT221X, Full Speed USB 2.0 to 4-Bit SPI / FT1248 Bridge
The FT220X and FT221X Full Speed USB 2.0 ICs offer a compact bridge to 4-Bit SPI / FT1248 interfaces. The devices can acknowledge USB bus data, capable of operating up to 500 kbps, with low power consumption (8 mA). The USB 2.0 serial bus to 4-Bit SPI / FT1248 Bridge enables the USB interface to be added into a system design quickly and easily.
