- RS Stock No.:
- 166-0323
- Mfr. Part No.:
- SC16C550BIB48,128
- Brand:
- NXP
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) Each (On a Reel of 2000)
$3.85
(exc. GST)
$4.23
(inc. GST)
Units | Per unit | Per Reel* |
2000 - 2000 | $3.85 | $7,700.00 |
4000 - 6000 | $3.754 | $7,508.00 |
8000 + | $3.696 | $7,392.00 |
*price indicative |
- RS Stock No.:
- 166-0323
- Mfr. Part No.:
- SC16C550BIB48,128
- Brand:
- NXP
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

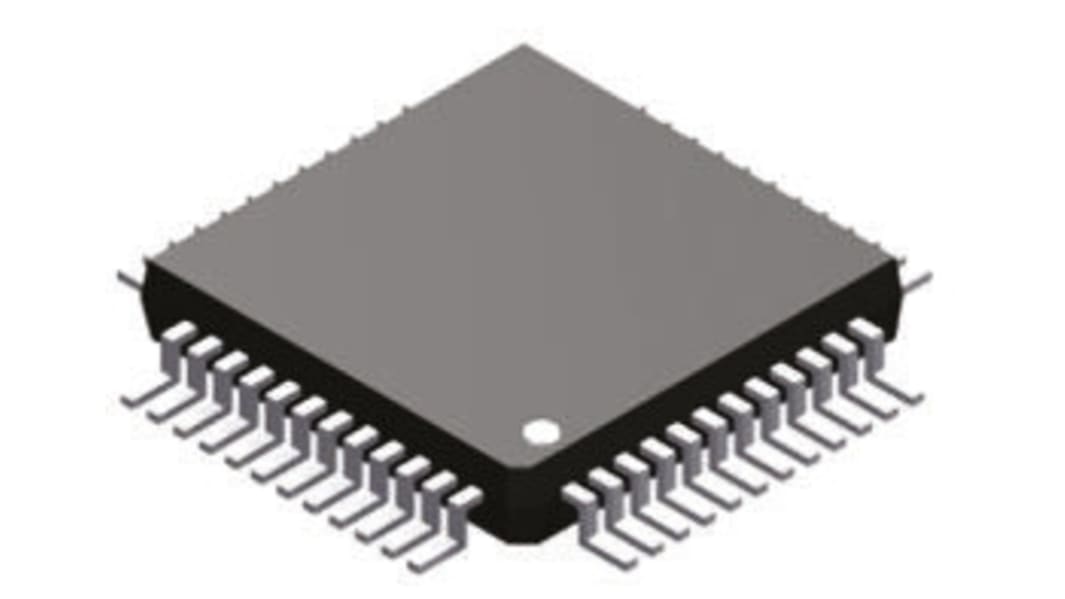

Universal Asynchronous Receiver/Transmitter (UART), NXP
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
NXP is a trademark of NXP B.V.
A Universal Asynchronous Receiver/Transmitter, abbreviated (UART) and universal synchronous/asynchronous receiver/transmitter (USART) are commonly used in conjunction with communication standards such as EIA, RS-232, RS-422 or RS-485. It takes bytes of data and transmits or receives the individual bits in a sequential fashion. Modem (Modulator-Demodulator) that modulates an analogue carrier signal to encode digital information and demodulates the signal to decode the transmitted information includes the UART function for transmission over telephone lines.
Specifications
Attribute | Value |
---|---|
Number of Channels per Chip | 1 |
Standard Supported | UART |
Transmit FIFO | 16B |
Receive FIFO | 16B |
Maximum Data Rate | 3Mbit/s |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 48 |
Typical Operating Supply Voltage | 2.5 V, 3.3 V, 5 V |
Dimensions | 7 x 7 x 1.4mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
