STMicroelectronics 1N5908 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-201
- RS Stock No.:
- 793-1311
- Distrelec Article No.:
- 304-45-880
- Mfr. Part No.:
- 1N5908
- Brand:
- STMicroelectronics

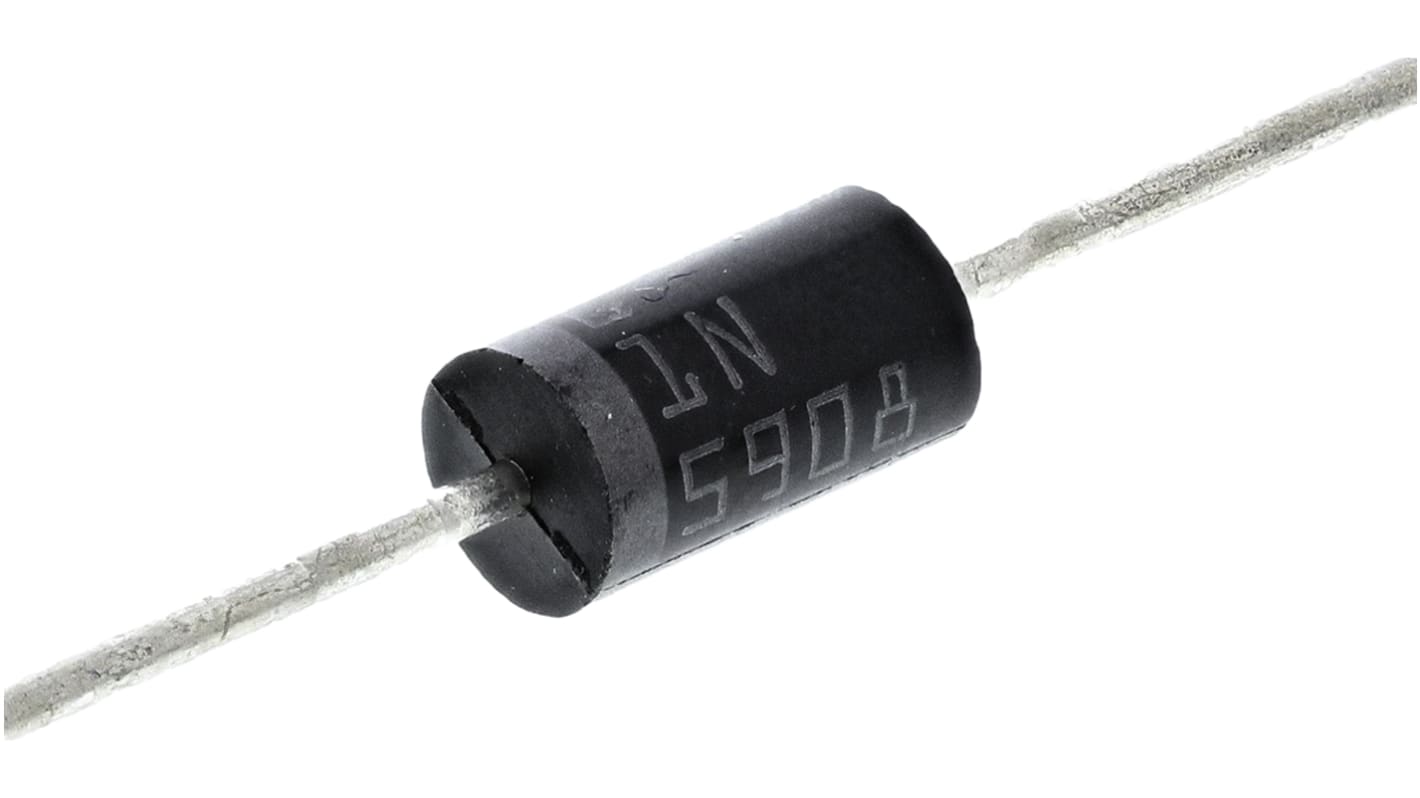

This image is representative of the product range
Subtotal (1 pack of 10 units)*
$11.33
(exc. GST)
$12.46
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | $1.133 | $11.33 |
*price indicative
- RS Stock No.:
- 793-1311
- Distrelec Article No.:
- 304-45-880
- Mfr. Part No.:
- 1N5908
- Brand:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Direction Type | Uni-Directional | |
| Product Type | TVS Diode | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Through Hole | |
| Package Type | DO-201 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 1.5kW | |
| Maximum Peak Pulse Current Ippm | 30A | |
| Minimum Operating Temperature | -55°C | |
| Test Current It | 1mA | |
| Clamping Voltage VC | 8V | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 175°C | |
| Series | Transil | |
| Width | 5.3mm | |
| Length | 9.5mm | |
| Diameter | 5.3mm | |
| Standards/Approvals | No | |
| Height | 9.5mm | |
| Maximum Reverse Leakage Current | 300μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Direction Type Uni-Directional | ||
Product Type TVS Diode | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Through Hole | ||
Package Type DO-201 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 1.5kW | ||
Maximum Peak Pulse Current Ippm 30A | ||
Minimum Operating Temperature -55°C | ||
Test Current It 1mA | ||
Clamping Voltage VC 8V | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 175°C | ||
Series Transil | ||
Width 5.3mm | ||
Length 9.5mm | ||
Diameter 5.3mm | ||
Standards/Approvals No | ||
Height 9.5mm | ||
Maximum Reverse Leakage Current 300μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Transil™ TVS Axial Unidirectional 1500W, STMicroelectronics
Transient Voltage Suppressors, STMicroelectronics
