    STMicroelectronics 1.5KE39A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-201

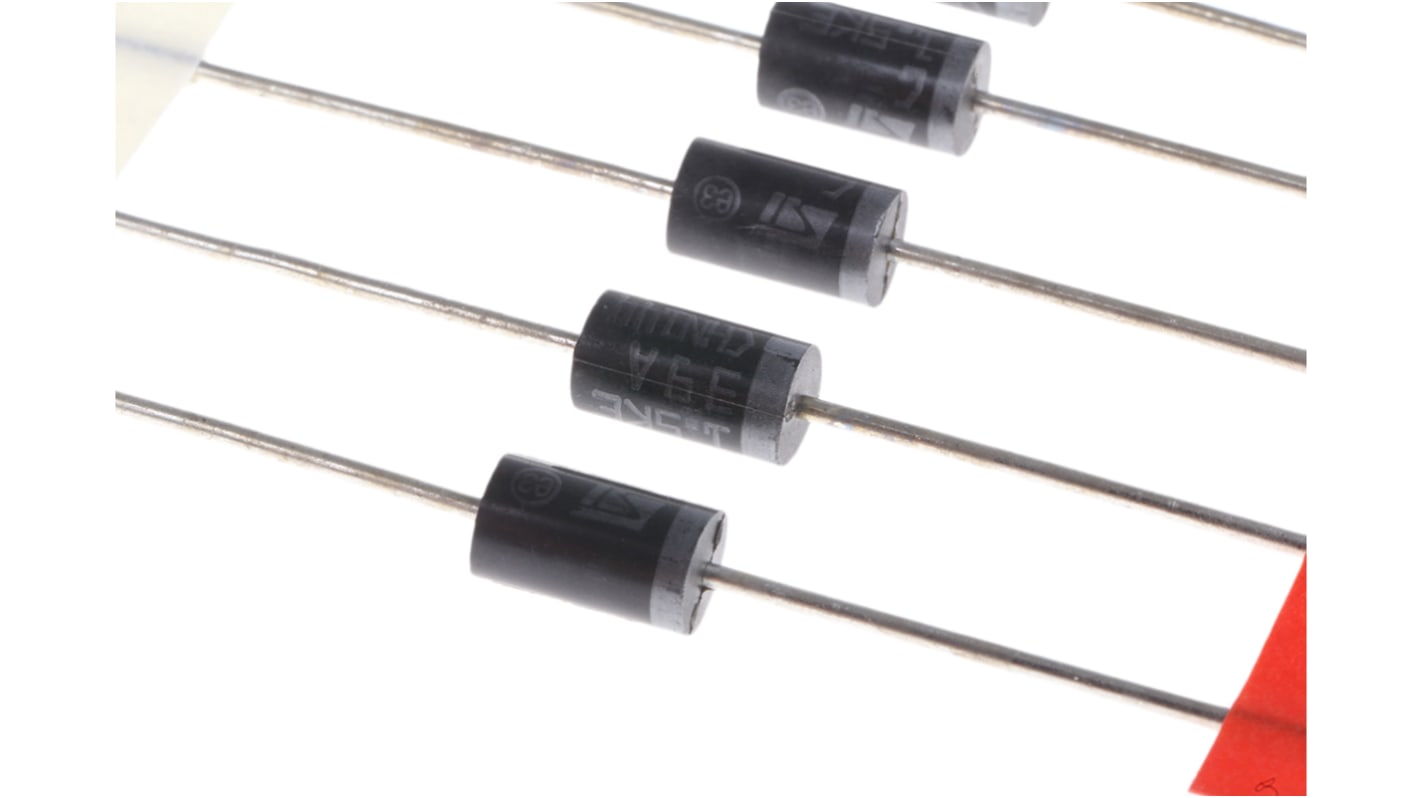

    This image is representative of the product range

    View all TVS Diodes

    Subtotal (1 pack of 10 units)**

    $9.61

    (exc. GST)

    $10.57

    (inc. GST)

    Add to Basket
    Select or type quantity
    110 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Pack**
    10 +$0.961$9.61

    **price indicative

    Packaging Options:
    RS Stock No.:
    486-4353
    Mfr. Part No.:
    1.5KE39A
    Brand:
    STMicroelectronics
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    STMicroelectronics

    Diode Configuration

    Single

    Direction Type

    Uni-Directional

    Maximum Clamping Voltage

    69.7V

    Minimum Breakdown Voltage

    37.1V

    Mounting Type

    Through Hole

    Package Type

    DO-201

    Maximum Reverse Stand-off Voltage

    33.3V

    Pin Count

    2

    Peak Pulse Power Dissipation

    1500W

    Maximum Peak Pulse Current

    143A

    Number of Elements per Chip

    1

    Minimum Operating Temperature

    -65 °C

    Dimensions

    9.5 x 5.3 x 5.3mm

    Maximum Operating Temperature

    +175 °C

    Width

    5.3mm

    Test Current

    1mA

    Length

    9.5mm

    Maximum Reverse Leakage Current

    1µA

    Height

    5.3mm
