- RS Stock No.:
- 380-9759
- Mfr. Part No.:
- JBM-100
- Brand:
- Raychem
13 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Kit
$393.86
(exc. GST)
$433.25
(inc. GST)
Kit(s) | Per Kit |
1 + | $393.86 |
- RS Stock No.:
- 380-9759
- Mfr. Part No.:
- JBM-100
- Brand:
- Raychem
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

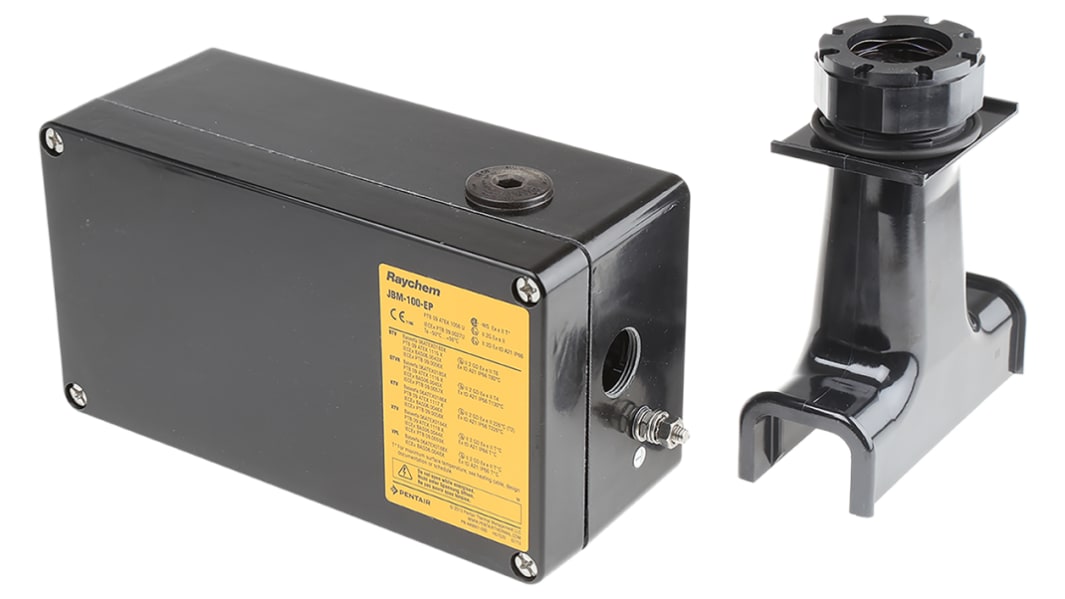

Raychem® Single-Entry Power Connection with Junction Box
Suitable for BTV/XTV heating cables in hazardous/non-hazardous areas
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)
Certificate No.
PTB 98 ATEX 1021 U
Group and Category
II 2 G EEx e II
Approvals
II 2G EEx e II
Standards
EN 50014; EN 50019
Supplied with
7777
Power Connection
Specifications
Attribute | Value |
---|---|
Dimensions | 220 x 120 x 90mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +40°C |
Height | 120mm |
Length | 220mm |
Width | 90mm |
Hazardous Area Certification | ATEX |
