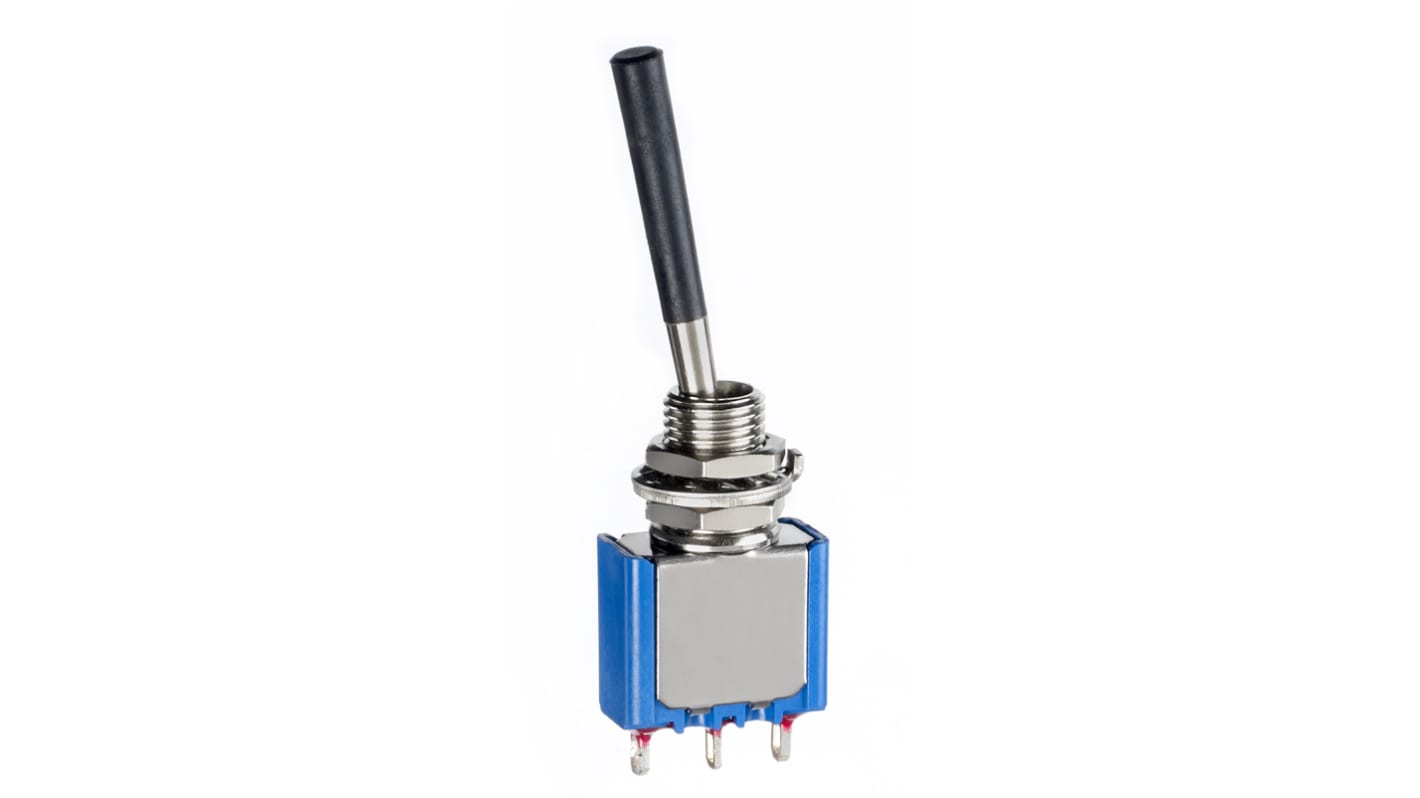

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

RS Stock No.:: 165-1455
Mfr. Part No.:: 5637AB-21+U642
Brand:: APEM

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

73 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$20.28

(exc. GST)

$22.31

(inc. GST)

Units	Per unit
1 - 4	$20.28
5 +	$18.25

RS Stock No.:: 165-1455
Mfr. Part No.:: 5637AB-21+U642
Brand:: APEM

1651443_DataSheet 1
5000 Series Toggle Switches Datasheet
Datasheet

Attribute	Value
Contact Configuration	SPDT
Switch Operation	(On)-Off-(On)
Contact Current Rating	3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac
Mounting Type	Panel Mount
Terminal Type	Solder Lug
Illuminated	No
Panel Cut Out Diameter	6.5mm
Actuator Length	23.1mm
Actuator Material	Chrome Plated Brass
Voltage Rating	30 V dc, 125 V ac, 250V ac
Contact Material	Silver
Contact Resistance	10mΩ
Panel Cut Out Size	6.5 Dia.mm
Minimum Operating Temperature	-40°C
Standards Met	CECC 96201-007, CSA, cULus Recognised, UL Listed, VDE
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac
