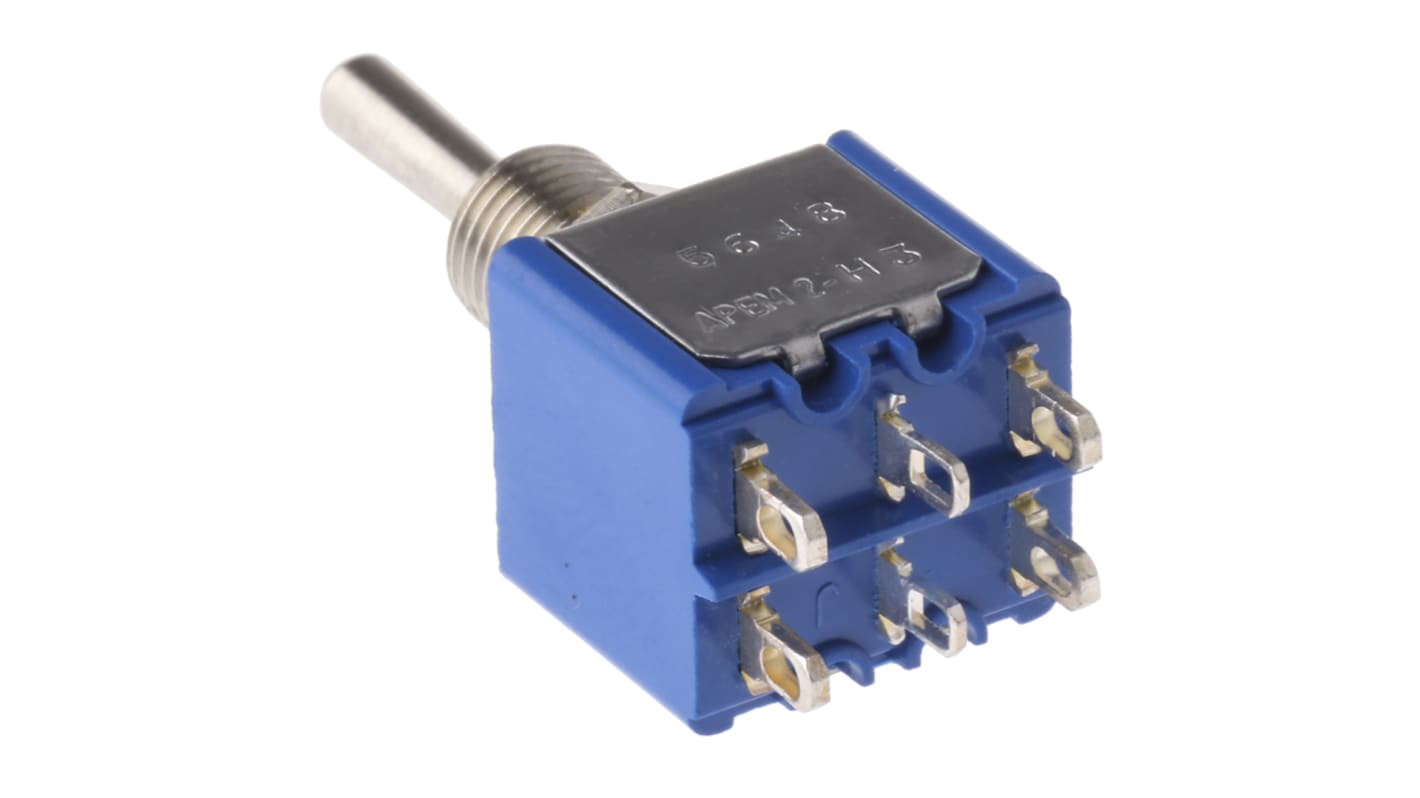

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 30 V dc, 250 V ac

RS Stock No.:: 224-079
Mfr. Part No.:: 5648A
Brand:: APEM

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 30 V dc, 250 V ac

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

$18.33

(exc. GST)

$20.16

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 42 unit(s) shipping from 01 June 2026
Plus 50 unit(s) shipping from 07 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 49	$18.33
50 - 99	$18.11
100 - 249	$17.79
250 - 499	$17.45
500 +	$17.13

*price indicative

RS Stock No.:: 224-079
Mfr. Part No.:: 5648A
Brand:: APEM

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	APEM
	Product Type	Toggle Switch
	Contact Configuration	DPDT
	Switch Operation	On-Off-On
	Switch Contact Current	4A
	Mount Type	Panel
	Terminal Type	Solder
	Illuminated	No
	Panel Cutout Size	6.5 mm
	Contact AC Voltage	250V ac
	Contact DC Voltage	30V dc
	Minimum Operating Temperature	-40°C
	Actuator Length	10.5mm
	Switch Configuration	On-Off-Mom
	Maximum Operating Temperature	85°C
	Actuator Material	Brass
	Width	12mm
	Series	5000
	Length	13.2mm
	Standards/Approvals	CECC, CSA, RoHS, UL
	Height	34.2mm
	Mechanical Life	100000Operations

	Select all
	Brand APEM
	Product Type Toggle Switch
	Contact Configuration DPDT
	Switch Operation On-Off-On
	Switch Contact Current 4A
	Mount Type Panel
	Terminal Type Solder
	Illuminated No
	Panel Cutout Size 6.5 mm
	Contact AC Voltage 250V ac
	Contact DC Voltage 30V dc
	Minimum Operating Temperature -40°C
	Actuator Length 10.5mm
	Switch Configuration On-Off-Mom
	Maximum Operating Temperature 85°C
	Actuator Material Brass
	Width 12mm
	Series 5000
	Length 13.2mm
	Standards/Approvals CECC, CSA, RoHS, UL
	Height 34.2mm
	Mechanical Life 100000Operations

COO (Country of Origin):: FR

Toggle Switches, Standard Lever

Panel mount switches with a large variety of contact configurations

Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)

Brass actuator and Diallyl Phthalate case

Panel cut-out 6.35 mm

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
