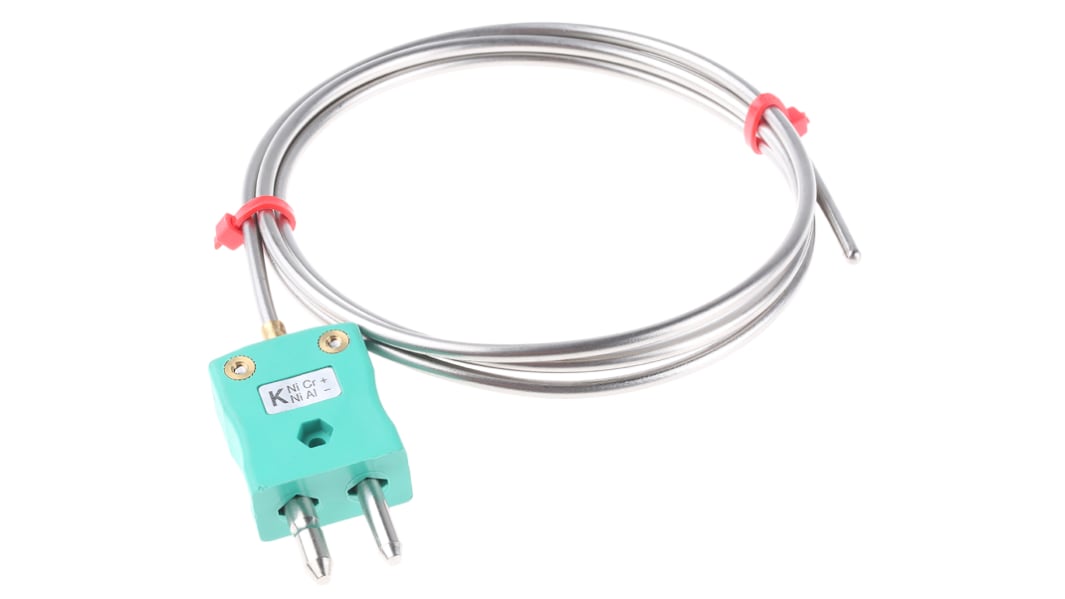

RS PRO Type K Thermocouple 1m Length, 3mm Diameter → +1100°C

RS Stock No.:: 787-7797
Brand:: RS PRO

RS PRO Type K Thermocouple 1m Length, 3mm Diameter → +1100°C

12 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$82.70

(exc. GST)

$90.97

(inc. GST)

Units	Per unit
1 - 14	$82.70
15 - 29	$80.41
30 +	$77.12

RS Stock No.:: 787-7797
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Type K Mineral Insulated Probe

150 and 250mm versions, particularly suitable for industrial use including, high pressure, high vacuum and high vibration applications.

Features and Benefits

Tip Junction insulated from the sheath.
Stainless steel (310)
Temp range: probe 0 to + 1100°C, plug 220°C (max)
Bendable for fitting in difficult access locations

Bendable probes with a Stainless Steel 310 or Inconel 600 sheath. Inconel has excellent oxidation resistant properties
For version with standard plug see RS 787-7793
Temperature range: Probe 0 to +1100°C. Pot seal 0 to +180°C
100mm of 7//0.2mm PTFE insulated cable

Specifications

Attribute	Value
Thermocouple Type	K
Probe Diameter	3mm
Probe Length	1m
Maximum Temperature Sensed	+1100°C
Probe Material	Stainless Steel
Termination Type	Standard Plug
Cable Length	100mm
Standards Met	IEC
