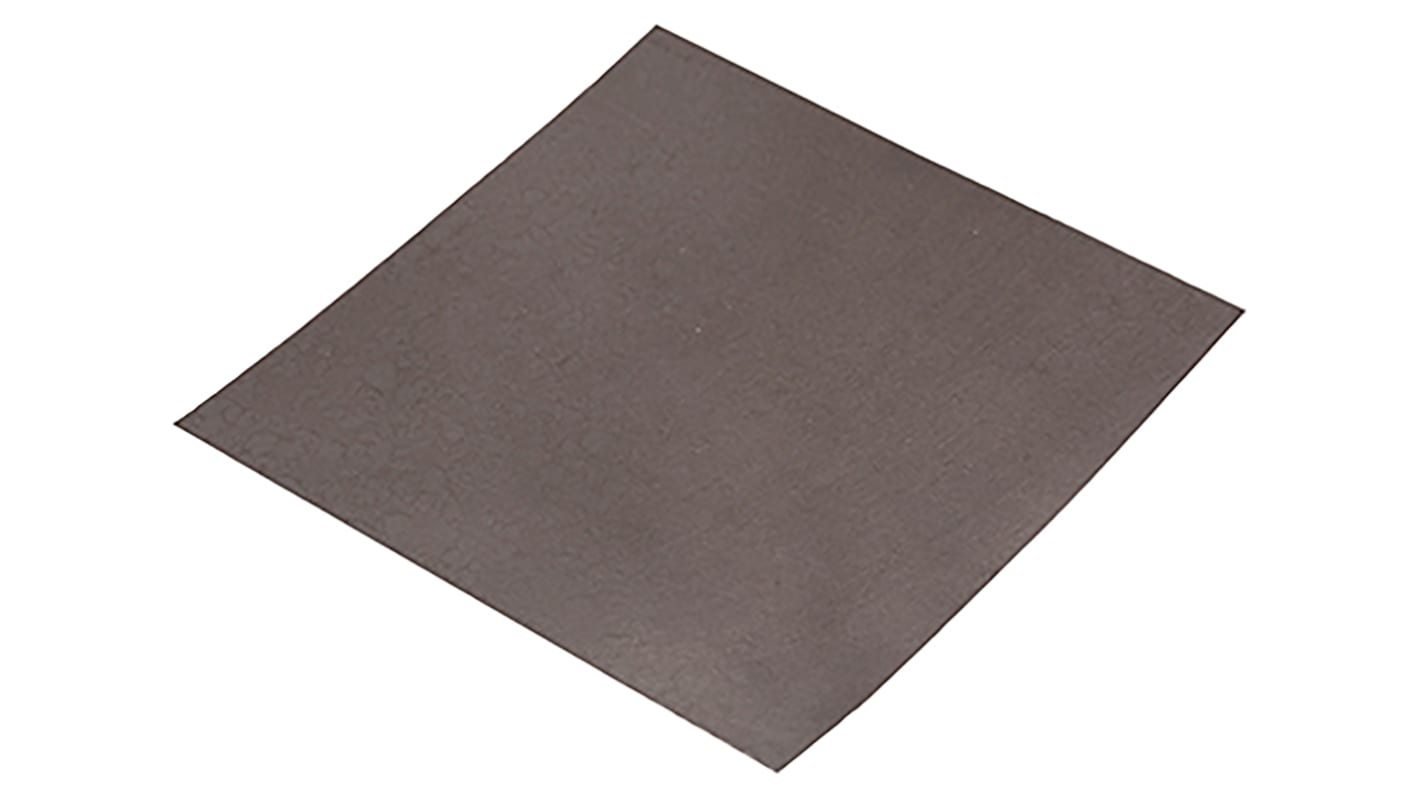

Global Component Sourcing Thermal Interface Pad, 0.04mm Thick, 15W/m·K, Graphite, 150 x 300mm
- RS Stock No.:
- 188-9448
- Mfr. Part No.:
- GCSP-040G-150x300
- Brand:
- Global Component Sourcing
10 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$33.36
(exc. GST)
$36.70
(inc. GST)
| Units | Per unit |
| 1 - 4 | $33.36 |
| 5 + | $30.02 |
- RS Stock No.:
- 188-9448
- Mfr. Part No.:
- GCSP-040G-150x300
- Brand:
- Global Component Sourcing
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
GCSP-040-G is a high performance thermal interface graphite pad. This thin graphite pad allows for easy attachment of heat sinks or other thermal components in a limited space.
15W/m K thermal conductivity
1300W/mK planar thermal conductivity
Long term stability
Adaptable to surface
Voltage resistance option of up to 6kV
1300W/mK planar thermal conductivity
Long term stability
Adaptable to surface
Voltage resistance option of up to 6kV
Specifications
Attribute | Value |
|---|---|
| Dimensions | 150 x 300mm |
| Thickness | 0.04mm |
| Length | 150mm |
| Width | 300mm |
| Thermal Conductivity | 15W/m·K |
| Material | Graphite |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +400°C |
| Hardness | 85 Shore A |
| Colour | Grey |
| Operating Temperature Range | -40 → +400 °C |
