RS PRO Self-Adhesive Thermal Interface Sheet, 0.085mm Thick, 1600W/m·K, Graphite, 115 x 180mm

RS Stock No.:: 245-7310
Brand:: RS PRO

RS PRO Self-Adhesive Thermal Interface Sheet, 0.085mm Thick, 1600W/m·K, Graphite, 115 x 180mm

6 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$38.93

(exc. GST)

$42.82

(inc. GST)

Units	Per unit
1 - 9	$38.93
10 - 99	$38.00
100 +	$37.09

RS Stock No.:: 245-7310
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

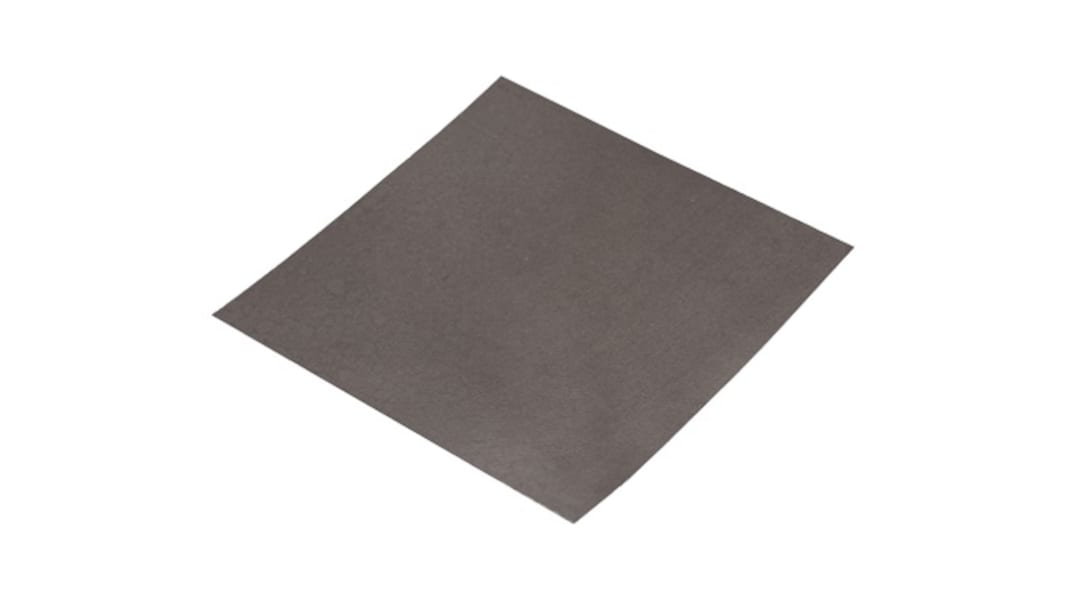

RS PRO Self Adhesive Crystallised Graphite Thermal Pad

RS PRO crystallised graphite thermal pads are highly orientated graphite sheets designed for thermal management as well as providing a reduction in vibration and shock damage to internal components.

RS PRO Graphite sheets are flexible and thin enabling them to be cut into shape easily and feature insulation material on both sides of the pad tape including a layer of acrylic adhesive tape for a secure attachment and a layer of Polyester (PET) tape for insulation.

Constructed from highly thermal conductive Graphite. Graphite thermal pads are ideal for a range of applications and can be used to provide thermal management or heatsinking in limited spaces or as a heat spreader at an interface level.

Features and Benefits

Acrylic adhesive insulation tape

Polyester (PET) insulation

High thermal conductivity

Low thermal resistance

Lightweight and easy to cut

RoHS compliant

Applications

Smart phones and tablets

Electronic components

Flat panel displays

LED displays

Engine control units

Computer hard drives

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications

Attribute	Value
Dimensions	115 x 180mm
Thickness	0.085mm
Length	180mm
Width	115mm
Diameter	180mm
Thermal Conductivity	1600W/m·K
Material	Graphite
Self-Adhesive	Yes
Maximum Operating Temperature	100°C
Colour	Grey
