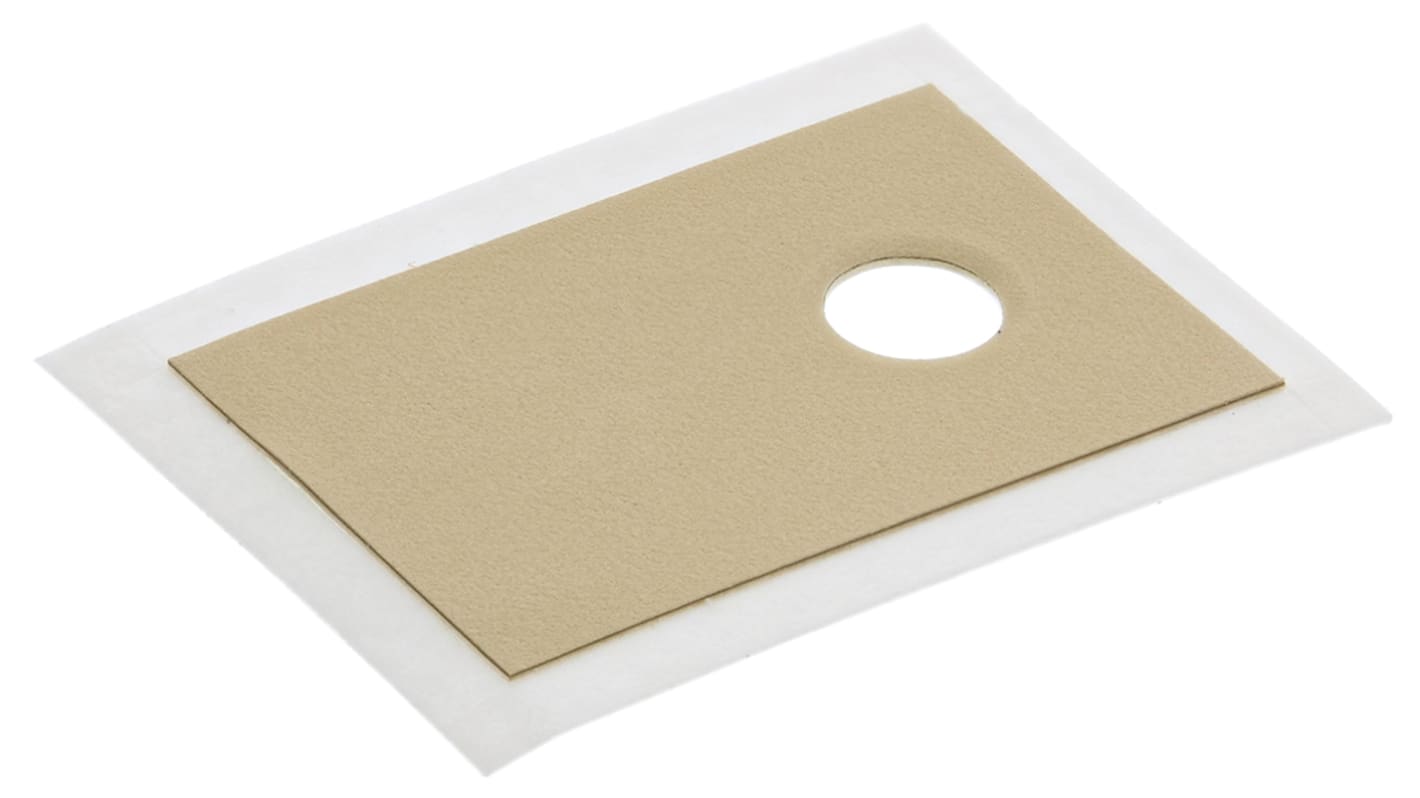

Bergquist Self-Adhesive Thermal Interface Pad, 0.152mm Thick, 1.3W/m·K, Thin Film Polyimide, 19.05 x 12.7mm

RS Stock No.:: 169-4628
Mfr. Part No.:: SPK10-0.006-AC-54
Brand:: Bergquist

Bergquist Self-Adhesive Thermal Interface Pad, 0.152mm Thick, 1.3W/m·K, Thin Film Polyimide, 19.05 x 12.7mm

2210 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 10)

Was $33.35

You pay

$1.557

(exc. GST)

$1.713

(inc. GST)

Units	Per unit	Per Pack*
10 - 240	$1.557	$15.57
250 - 490	$1.519	$15.19
500 +	$1.463	$14.63
*price indicative

RS Stock No.:: 169-4628
Mfr. Part No.:: SPK10-0.006-AC-54
Brand:: Bergquist

Technical data sheets

Sil-Pad K-10 Insulator

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Sil-Pad K10 insulators

High-performance insulators, which combine Kapton MT type polyamide film with the boron nitride reinforced silicon elastomer.
Electrical insulators and thermal conductors.
These replace ceramic insulators used when mechanical resistance is required.
Overcomes the risks of breaking.
Very good electrical insulation behaviour.

Specifications

Attribute	Value
Dimensions	19.05 x 12.7mm
Thickness	0.152mm
Length	19.05mm
Width	12.7mm
Thermal Conductivity	1.3W/m·K
Material	Thin Film Polyimide
Self-Adhesive	Yes
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+180°C
Hardness	Shore A 90
Material Trade Name	Sil-Pad K10
Operating Temperature Range	-60 → +180 °C
