Hirschmann Test & Measurement, 32A, 60V dc, Red, 500mm Lead Length
- RS Stock No.:
- 343-3431
- Mfr. Part No.:
- 934061101
- Brand:
- Hirschmann Test & Measurement
11 In AU stock for next working day delivery
210 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$10.36
(exc. GST)
$11.40
(inc. GST)
Units | Per unit |
---|---|
1 - 25 | $10.36 |
26 - 100 | $10.27 |
101 + | $10.03 |
- RS Stock No.:
- 343-3431
- Mfr. Part No.:
- 934061101
- Brand:
- Hirschmann Test & Measurement
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

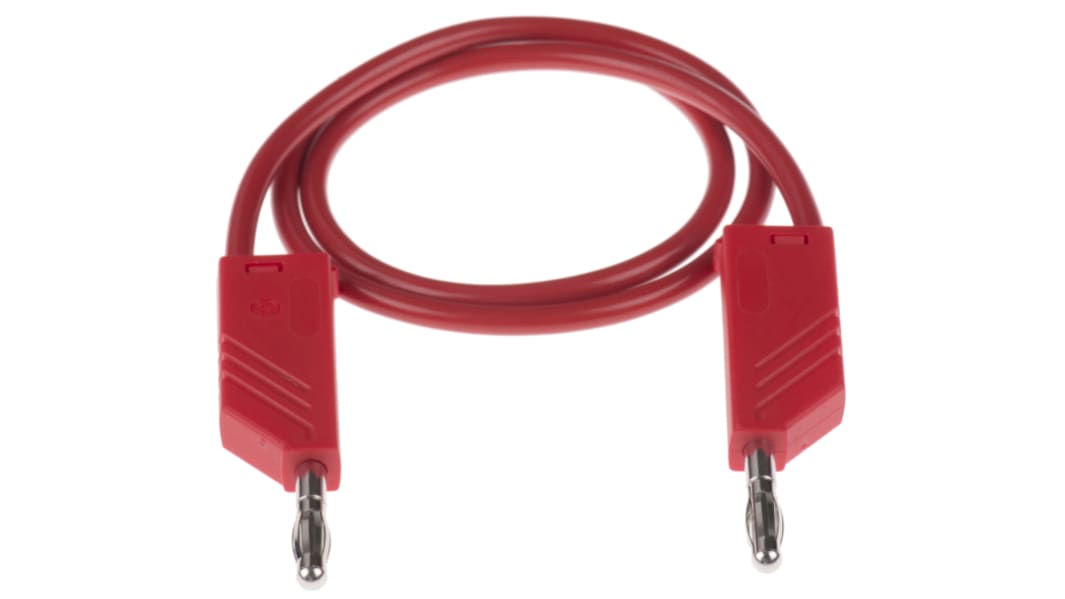

4 mm laboratory range, MLN 2.5 mm2 test lead, 4 mm plugs
Test lead, 4 mm plug at both ends with captive spring and 4 mm socket for stacking
Nickel-plated copper–beryllium contact spring
Highly flexible, double-insulated stranded cable, 2.5 mm2
Hard-wearing holster and lead
Built-in colour indicator to spot insulation damage
Nickel-plated copper–beryllium contact spring
Highly flexible, double-insulated stranded cable, 2.5 mm2
Hard-wearing holster and lead
Built-in colour indicator to spot insulation damage
Specifications
Attribute | Value |
---|---|
Lead Length | 500mm |
Current Rating | 32A |
Test Lead Type | 4 mm Connector Test Leads |
Colour | Red |
Voltage Rating | 60V dc |
Connector A Gender | Male |
Connector B Gender | Male |
Connector A Orientation | Straight |
Connector B Orientation | Straight |
Contact Material | Beryllium Copper, Brass |
Insulation Material | PVC |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -15°C |
Operating Temperature Range | -15 → +70 °C |
