Hirschmann Test & Measurement Test Probe Lead 32A, 1000V, Green, Yellow, 2 m Lead Length
- RS Stock No.:
- 252-1425
- Mfr. Part No.:
- 934047188
- Brand:
- Hirschmann Test & Measurement
This image is representative of the product range
Bulk discount available
Subtotal (1 box of 25 units)*
$746.85
(exc. GST)
$821.525
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 25 - 25 | $29.874 | $746.85 |
| 50 - 75 | $28.702 | $717.55 |
| 100 + | $27.531 | $688.28 |
*price indicative
- RS Stock No.:
- 252-1425
- Mfr. Part No.:
- 934047188
- Brand:
- Hirschmann Test & Measurement
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Product Type | Test Probe Lead | |
| Lead Length | 2m | |
| Connector Shrouded A | Yes | |
| Connector Orientation A | Straight | |
| Colour | Green, Yellow | |
| Test Lead Type | 4 mm Connector Test Lead | |
| Current | 32A | |
| Connector Orientation B | Straight | |
| Connector Shrouded B | Yes | |
| Voltage | 1000V | |
| Connector Gender A | Male | |
| Standards/Approvals | RoHS, IEC 61010, CE | |
| Contact Material | Brass | |
| Insulation Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -15°C | |
| Safety Category Voltage | 1000V | |
| Safety Category Level | CAT III | |
| Select all | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Product Type Test Probe Lead | ||
Lead Length 2m | ||
Connector Shrouded A Yes | ||
Connector Orientation A Straight | ||
Colour Green, Yellow | ||
Test Lead Type 4 mm Connector Test Lead | ||
Current 32A | ||
Connector Orientation B Straight | ||
Connector Shrouded B Yes | ||
Voltage 1000V | ||
Connector Gender A Male | ||
Standards/Approvals RoHS, IEC 61010, CE | ||
Contact Material Brass | ||
Insulation Material Polyvinyl Chloride | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -15°C | ||
Safety Category Voltage 1000V | ||
Safety Category Level CAT III | ||
- COO (Country of Origin):
- DE

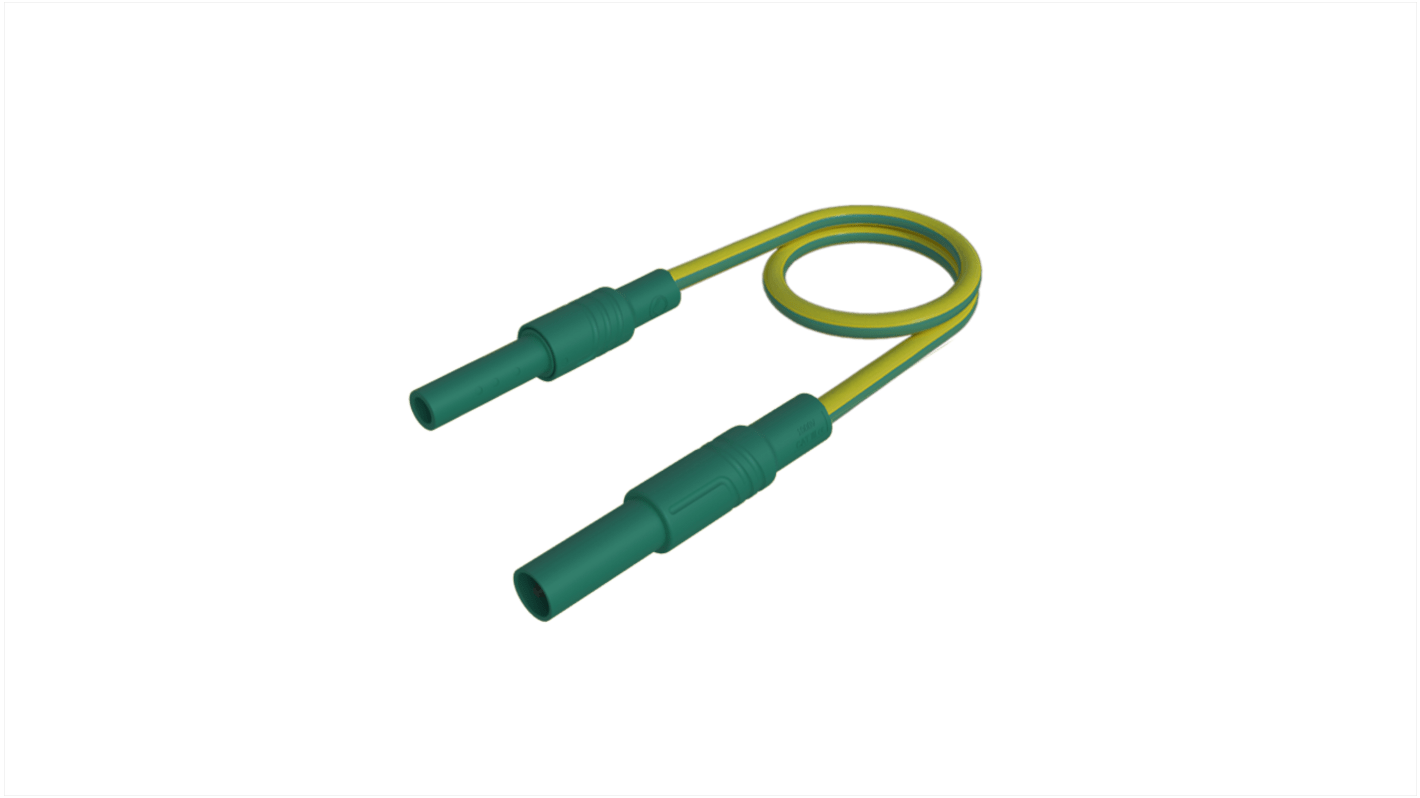

The Hirschmann Test & Measurement safety adapter test lead according to IEC 61010 with 4 mm safety plug straight outlet and 4 mm safety socket on the other end. Built in color indicator for easy identification of insulation damages.
Yellow/Green color combo
Highly flexible
Double insulated stranded lead
Shatter-proof grip sleeve
