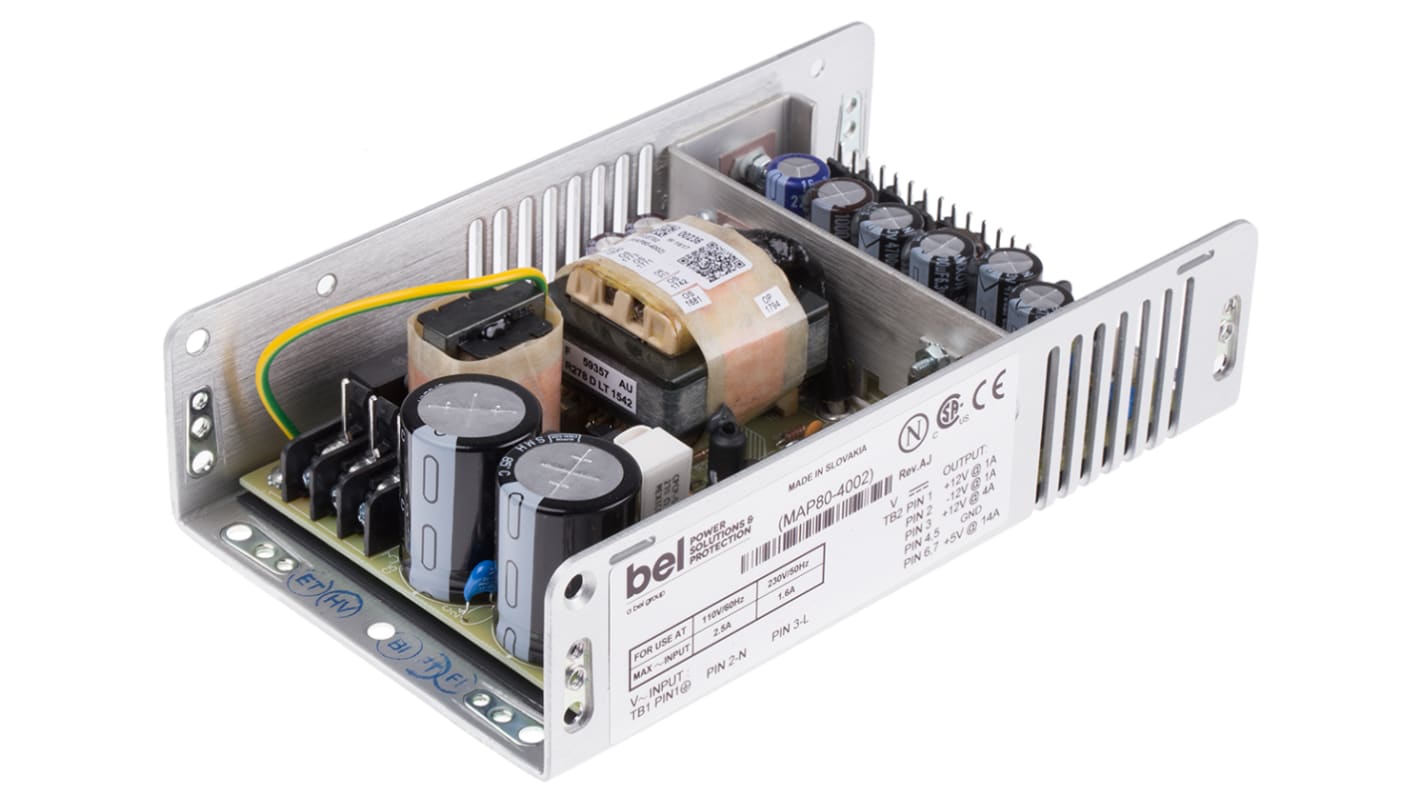

    BEL POWER SOLUTIONS INC Switching Power Supply, 5 V dc, ±12 V dc, 1A, 80W, Quad Output

    RS Stock No.:
    833-8170
    Mfr. Part No.:
    MAP80-4002
    Manufacturer:
    BEL POWER SOLUTIONS INC
    BEL POWER SOLUTIONS INC
    View all Switching Power Supplies
    Available for back order.
    Add to Basket
    units

    This product is currently unavailable to backorder.

    Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

    Added

    Price (ex. GST) Each

    $1,410.67

    (exc. GST)

    $1,551.74

    (inc. GST)

    unitsPer unit
    1 - 9$1,410.67
    10 - 49$1,392.01
    50 +$1,145.62
    RS Stock No.:
    833-8170
    Mfr. Part No.:
    MAP80-4002
    Manufacturer:
    BEL POWER SOLUTIONS INC

    Technical data sheets


    Legislation and Compliance


    Product Details

    BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply


    The BEL POWER SOLUTIONS INC embedded switch-mode power supply from the MAP80 series is an 80W rated, AC to DC plug-in device with 4 outputs. It has a variable frequency design with thermal, efficient, U-channel chassis, reliable and tightly regulated dc power. The single output model features a wide range of adjustable outputs to meet a variety of standard and user-specific output voltage requirements. It has a compact design and a universal input supply voltage rating range from 90VAC to 132VAC (low range) and 175VAC to 264VAC (high range).

    Features and Benefits


    Dual mode connectors
    Greater than 175,000 hours MTBF
    Metric and SAE mounting inserts
    Output currents are 14A at 5V, 4A at 12V and 1A at -12V
    TTL compatible power fail signal
    U bracket mount

    Applications


    Commercial requirements
    Industrial

    Certifications


    EN55022, Class B limits
    EN61000-4-2/-3/-4(input transient and ESD compliance)


    Specifications

    AttributeValue
    Output Voltage5 V dc, ±12 V dc
    Output Current1 A, 4 A, 14A
    Power Rating80W
    Number of Outputs4
    Input Voltage175 → 264 V ac, 90 → 132 V ac
    Mounting TypeU Bracket
    Package TypeU Bracket
    Length182.9mm
    Width106.7mm
    Depth45.7mm
    Efficiency80%
    Minimum Temperature0°C
    Weight820g
    Maximum Temperature+70°C
