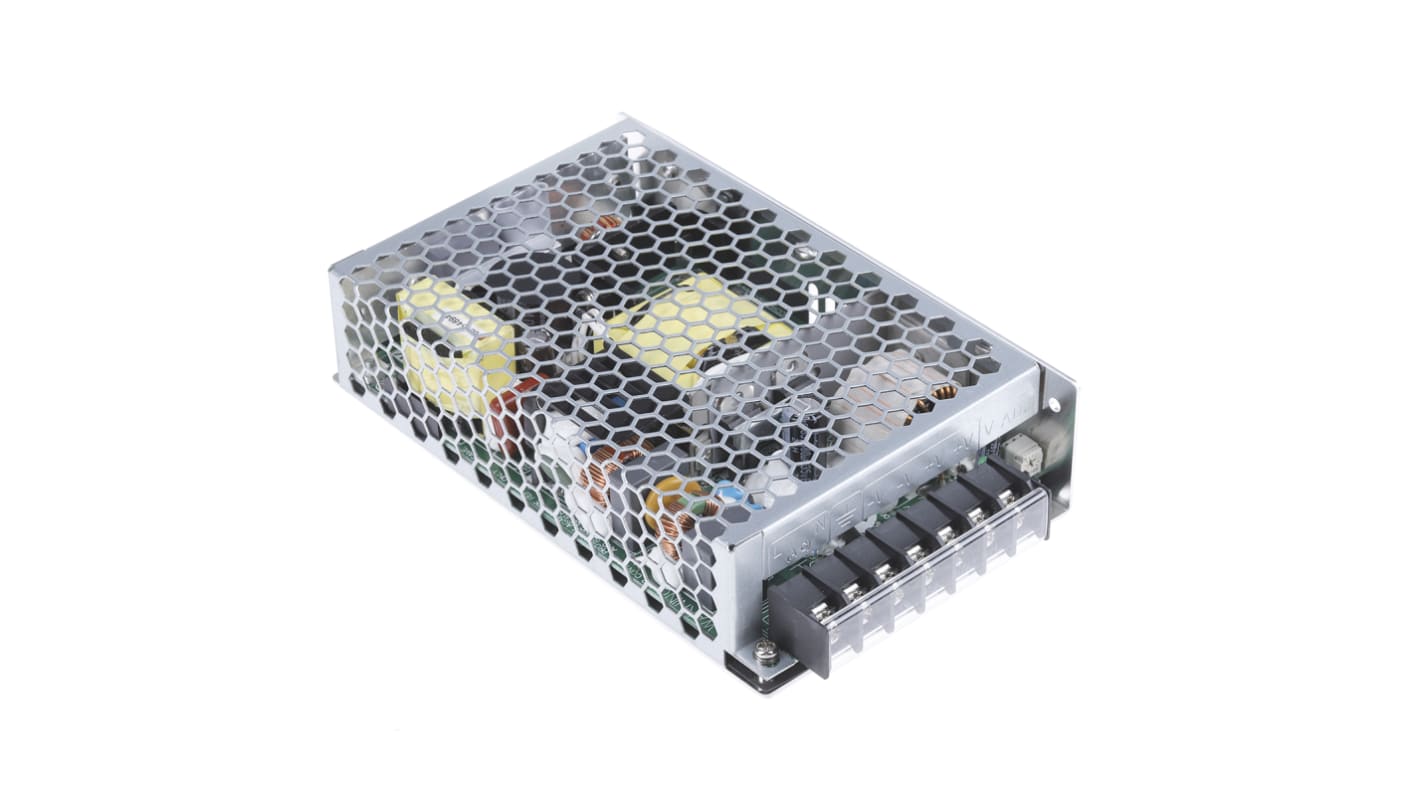

MEAN WELL Switching Power Supply, HRP-150-24, 24V dc, 6.5A, 156W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 424-475
- Mfr. Part No.:
- HRP-150-24
- Brand:
- MEAN WELL
43 In Global stock for delivery within 5 working day(s)
28 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$193.18
(exc. GST)
$212.50
(inc. GST)
| Units | Per unit |
| 1 - 9 | $193.18 |
| 10 - 49 | $190.83 |
| 50 + | $157.06 |
- RS Stock No.:
- 424-475
- Mfr. Part No.:
- HRP-150-24
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Mean Well Embedded Switch Mode Power Supply
The Mean Well HRP-150 series 156W single output AC to DC embedded switch mode power supply has an output current rating of 6.5A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC.
Note:
Power derating above 40°C
MTBF to MIL-HDBK-217F
Note:
Power derating above 40°C
MTBF to MIL-HDBK-217F
Features and Benefits
High efficiency
Long life and high reliability
No load power consumption less than 0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit
Over load
Over voltage and over temperature protection
Withstands 300VAC surge input for 5 seconds
Low profile of 1U
Long life and high reliability
No load power consumption less than 0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit
Over load
Over voltage and over temperature protection
Withstands 300VAC surge input for 5 seconds
Low profile of 1U
Certifications
UL60950-1
TUV
EN60950-1
CB certified
EN55022 class B (EMC compliance)
EN61000-3-2,-3 (power factor correction)
TUV
EN60950-1
CB certified
EN55022 class B (EMC compliance)
EN61000-3-2,-3 (power factor correction)
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 6.5A |
| Power Rating | 156W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 159mm |
| Width | 97mm |
| Depth | 38mm |
| Efficiency | 88% |
| Minimum Temperature | -40°C |
| Weight | 610g |
| Maximum Temperature | +70°C |
