Toko, FDSD0420, 0420 Shielded Wirewound Surface Mount Inductor with a Powdered Iron Core, 4.7 μH ±20 % 4.6 A Idc
- RS Stock No.:
- 167-0988
- Mfr. Part No.:
- FDSD0420-H-4R7M=P3
- Brand:
- Toko

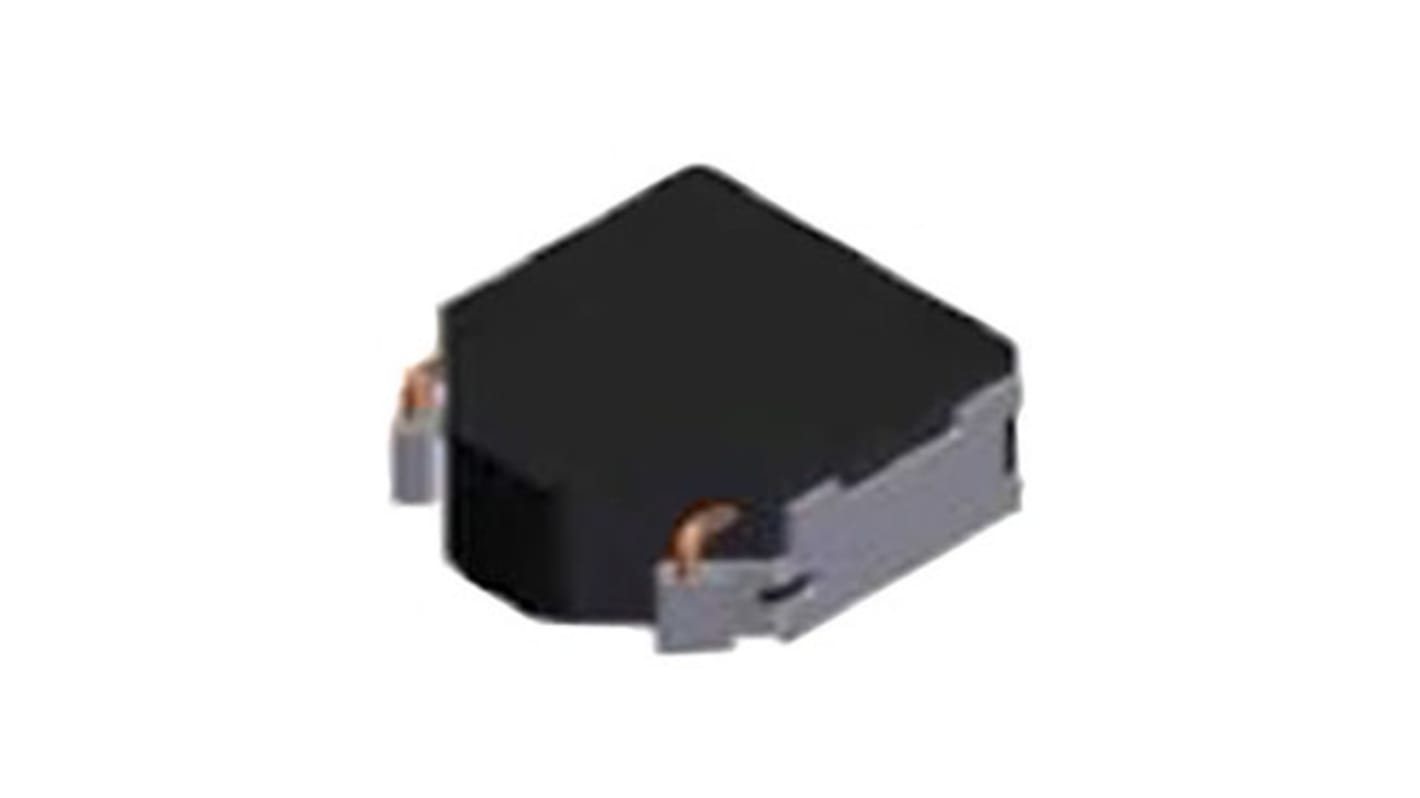

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 167-0988
- Mfr. Part No.:
- FDSD0420-H-4R7M=P3
- Brand:
- Toko
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toko | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 4.7μH | |
| Maximum DC Current | 4.6A | |
| Package/Case | 0420 | |
| Packaging | Embossed Tape | |
| Length | 4.2mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -20°C | |
| Maximum DC Resistance | 83mΩ | |
| Maximum Operating Temperature | 100°C | |
| Inductance Tolerance | ±20 % | |
| Series | FDSD0420 | |
| Depth | 4.2mm | |
| Termination Style | Solder | |
| Height | 2mm | |
| Core Material | Powdered Iron | |
| Standards/Approvals | RoHS | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Toko | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 4.7μH | ||
Maximum DC Current 4.6A | ||
Package/Case 0420 | ||
Packaging Embossed Tape | ||
Length 4.2mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Minimum Operating Temperature -20°C | ||
Maximum DC Resistance 83mΩ | ||
Maximum Operating Temperature 100°C | ||
Inductance Tolerance ±20 % | ||
Series FDSD0420 | ||
Depth 4.2mm | ||
Termination Style Solder | ||
Height 2mm | ||
Core Material Powdered Iron | ||
Standards/Approvals RoHS | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
- COO (Country of Origin):
- HN
0412/0415/0420 Series Metal Alloy Inductors
FDSD/0412/0415/0420 Series metal alloy inductors incorporate a magnetic iron powder that allows capability for a large current. These SMD fixed inductors are reflow solderable and have a low audible noise. These SMD inductors are 4.0 x 4.0 mm square and 1.2/1.5/2.0 mm max. height.
These metal alloy inductors use flat wire for low DC resistance. FDSD series inductors are Ideal for DC-DC Convertor applications, are halogen free and RoHS compliant.
