Toko, FDSD0518, 0518 Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 2.2 μH ±20% Wire-Wound 6.7A Idc
- RS Stock No.:
- 106-0287
- Mfr. Part No.:
- FDSD0518-H-2R2M=P3
- Brand:
- Toko

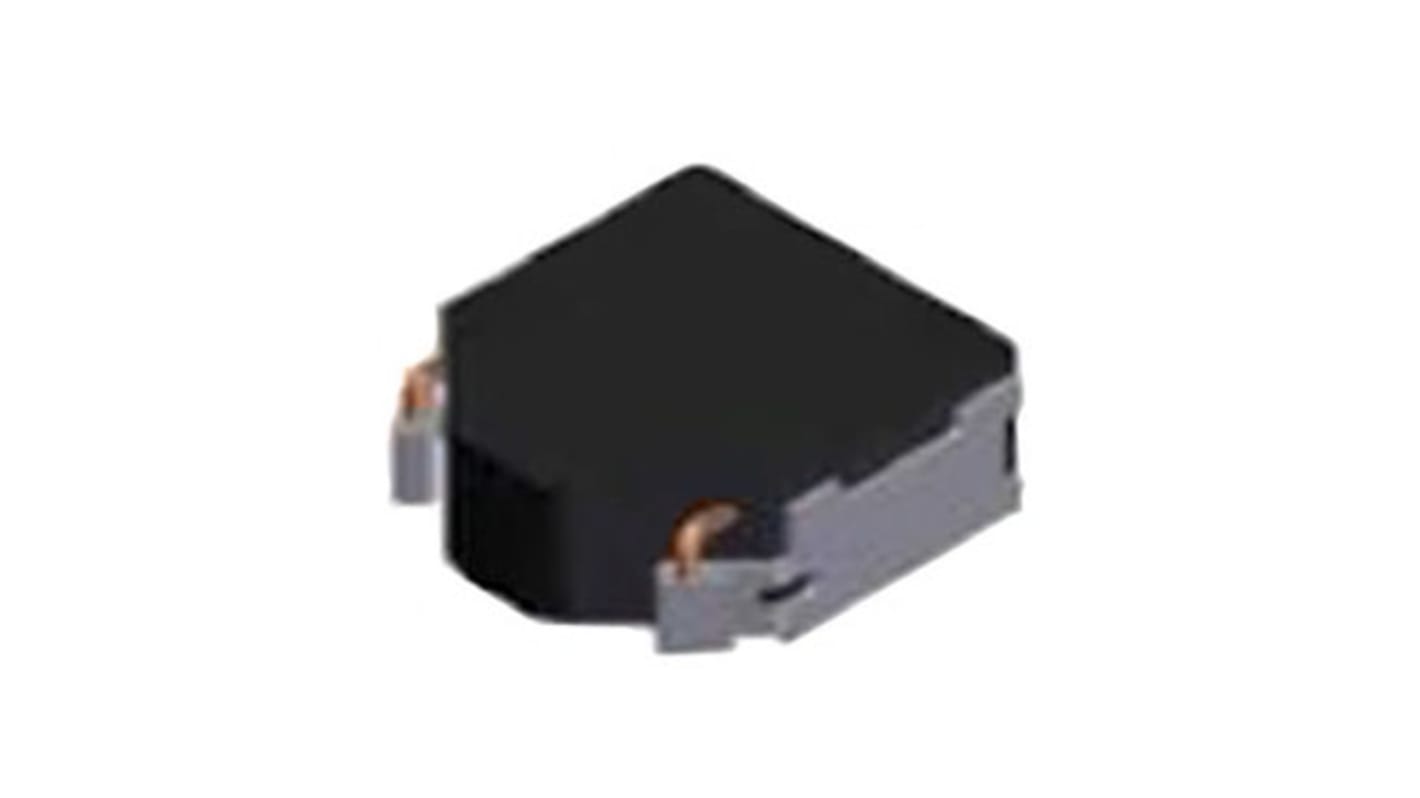

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 106-0287
- Mfr. Part No.:
- FDSD0518-H-2R2M=P3
- Brand:
- Toko
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toko | |
| Inductance | 2.2 μH | |
| Maximum DC Current | 6.7A | |
| Package/Case | 0518 | |
| Length | 5.2mm | |
| Depth | 4.9mm | |
| Height | 1.8mm | |
| Dimensions | 5.2 x 4.9 x 1.8mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 40mΩ | |
| Series | FDSD0518 | |
| Core Material | Powdered Iron | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
| Moulded | Yes | |
| Inductor Construction | Wire-Wound | |
| Select all | ||
|---|---|---|
Brand Toko | ||
Inductance 2.2 μH | ||
Maximum DC Current 6.7A | ||
Package/Case 0518 | ||
Length 5.2mm | ||
Depth 4.9mm | ||
Height 1.8mm | ||
Dimensions 5.2 x 4.9 x 1.8mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 40mΩ | ||
Series FDSD0518 | ||
Core Material Powdered Iron | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Moulded Yes | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- HN
