Toko, FDSD0412, 0412 Shielded Wirewound Surface Mount Inductor with a Powdered Iron Core, 3.3 μH 3.8 A Idc

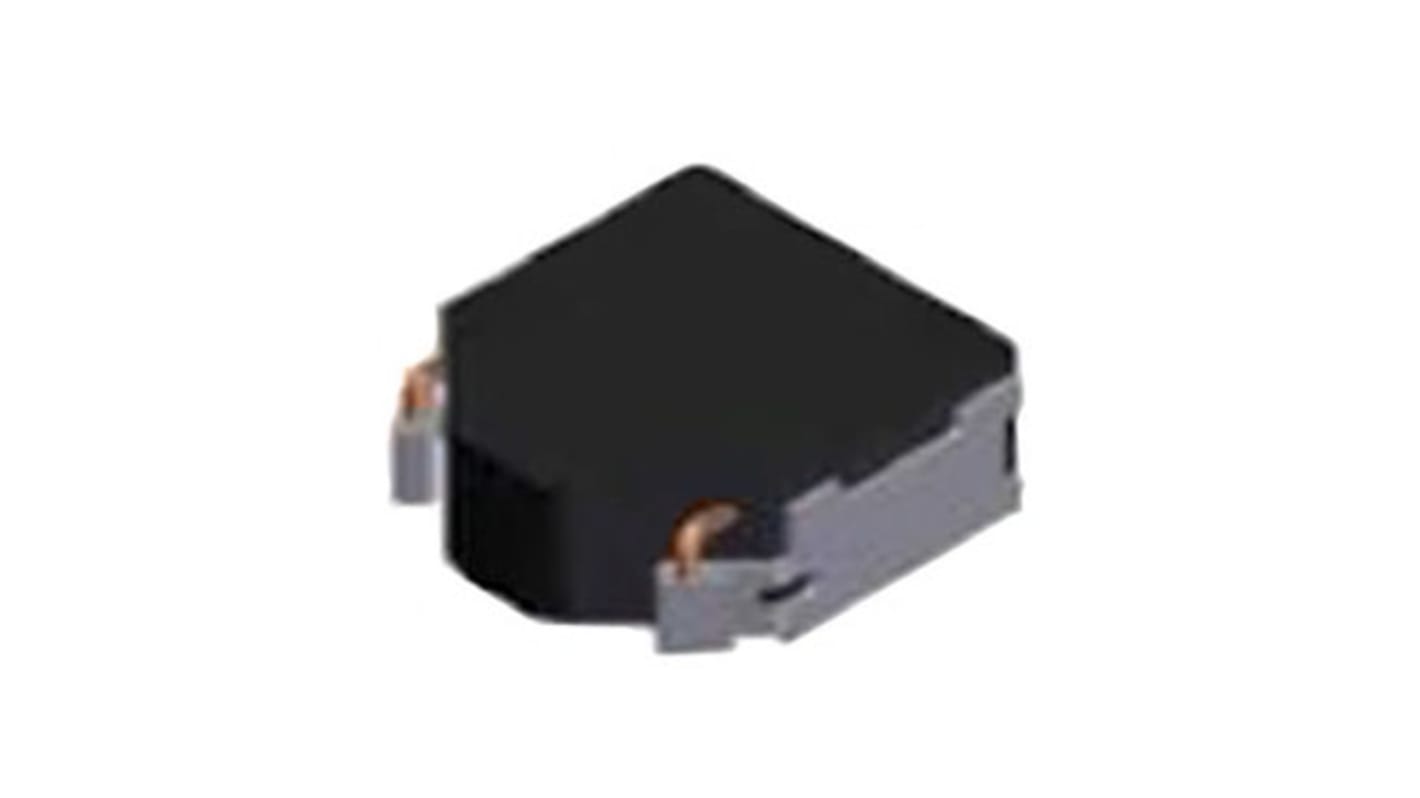

This image is representative of the product range

View all Surface Mount Inductors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
105-8582
Mfr. Part No.:
FDSD0412-H-3R3M=P3
Brand:
Toko
Find similar products by selecting one or more attributes.
Select all

Brand

Toko

Product Type

Wirewound Surface Mount Inductor

Inductance

3.3μH

Maximum DC Current

3.8A

Package/Case

0412

Length

4.2mm

Shielding

Yes

Minimum Operating Temperature

-20°C

Maximum DC Resistance

122mΩ

Series

FDSD0412

Maximum Operating Temperature

100°C

Core Material

Powdered Iron

Height

1.2mm

Depth

4.2mm

Moulded

Yes

Inductor Construction

Wirewound

0412/0415/0420 Series Metal Alloy Inductors


FDSD/0412/0415/0420 Series metal alloy inductors incorporate a magnetic iron powder that allows capability for a large current. These SMD fixed inductors are reflow solderable and have a low audible noise. These SMD inductors are 4.0 x 4.0 mm square and 1.2/1.5/2.0 mm max. height.

These metal alloy inductors use flat wire for low DC resistance. FDSD series inductors are ideal for DC-DC Convertor applications, are halogen free and RoHS compliant.
