Renesas Electronics SRAM, 70V05L20PFGI- 64 kB
- RS Stock No.:
- 217-3647
- Mfr. Part No.:
- 70V05L20PFGI
- Brand:
- Renesas Electronics

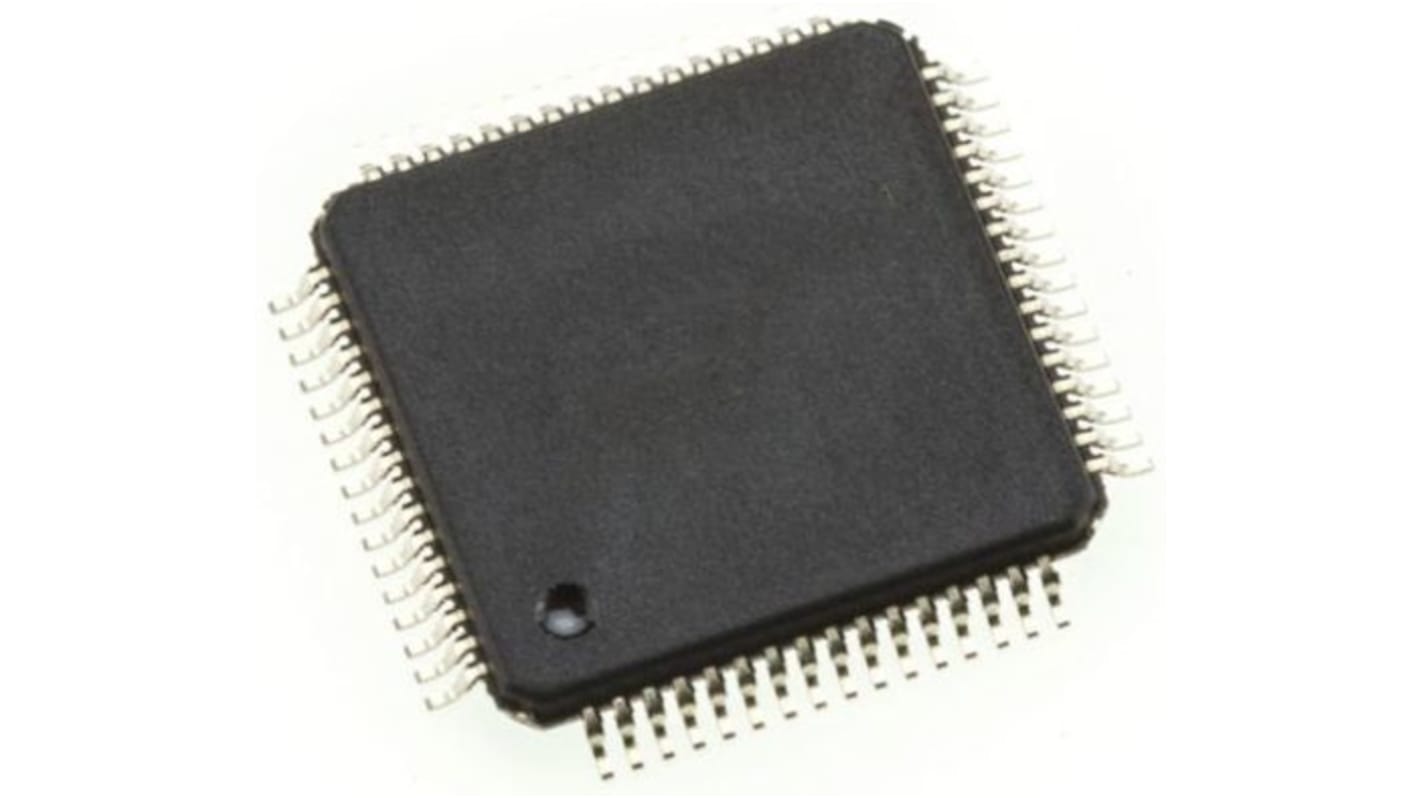

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$63.43
(exc. GST)
$69.77
(inc. GST)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 11 | $63.43 |
| 12 - 22 | $61.83 |
| 23 + | $60.88 |
*price indicative
- RS Stock No.:
- 217-3647
- Mfr. Part No.:
- 70V05L20PFGI
- Brand:
- Renesas Electronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | SRAM | |
| Memory Size | 64kB | |
| Organisation | 8K x 8 bit | |
| Number of Words | 8K | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 20ns | |
| Address Bus Width | 16bit | |
| Timing Type | Asynchronous | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Mount Type | Surface | |
| Package Type | TQFP | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 64 | |
| Standards/Approvals | No | |
| Width | 10 mm | |
| Height | 1.4mm | |
| Series | 70V05 | |
| Length | 14mm | |
| Automotive Standard | No | |
| Supply Current | 140mA | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type SRAM | ||
Memory Size 64kB | ||
Organisation 8K x 8 bit | ||
Number of Words 8K | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 20ns | ||
Address Bus Width 16bit | ||
Timing Type Asynchronous | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Mount Type Surface | ||
Package Type TQFP | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 64 | ||
Standards/Approvals No | ||
Width 10 mm | ||
Height 1.4mm | ||
Series 70V05 | ||
Length 14mm | ||
Automotive Standard No | ||
Supply Current 140mA | ||
The Renesas Electronics 70V05 series high-speed 8K x 8 Dual-Port Static RAM designed to be used as a stand-alone 64K-bit Dual-Port SRAM or as a combination MASTER/SLAVE Dual-Port SRAM for 16-bit-or-more word systems. It has 64 lead count and has TQFP package type.
True Dual-Ported memory cells which allow simultaneous reads of the same memory location
70V05 easily expands data bus width to 16 bits or more
Interrupt Flag
Full on-chip hardware support of semaphore signalling between ports
