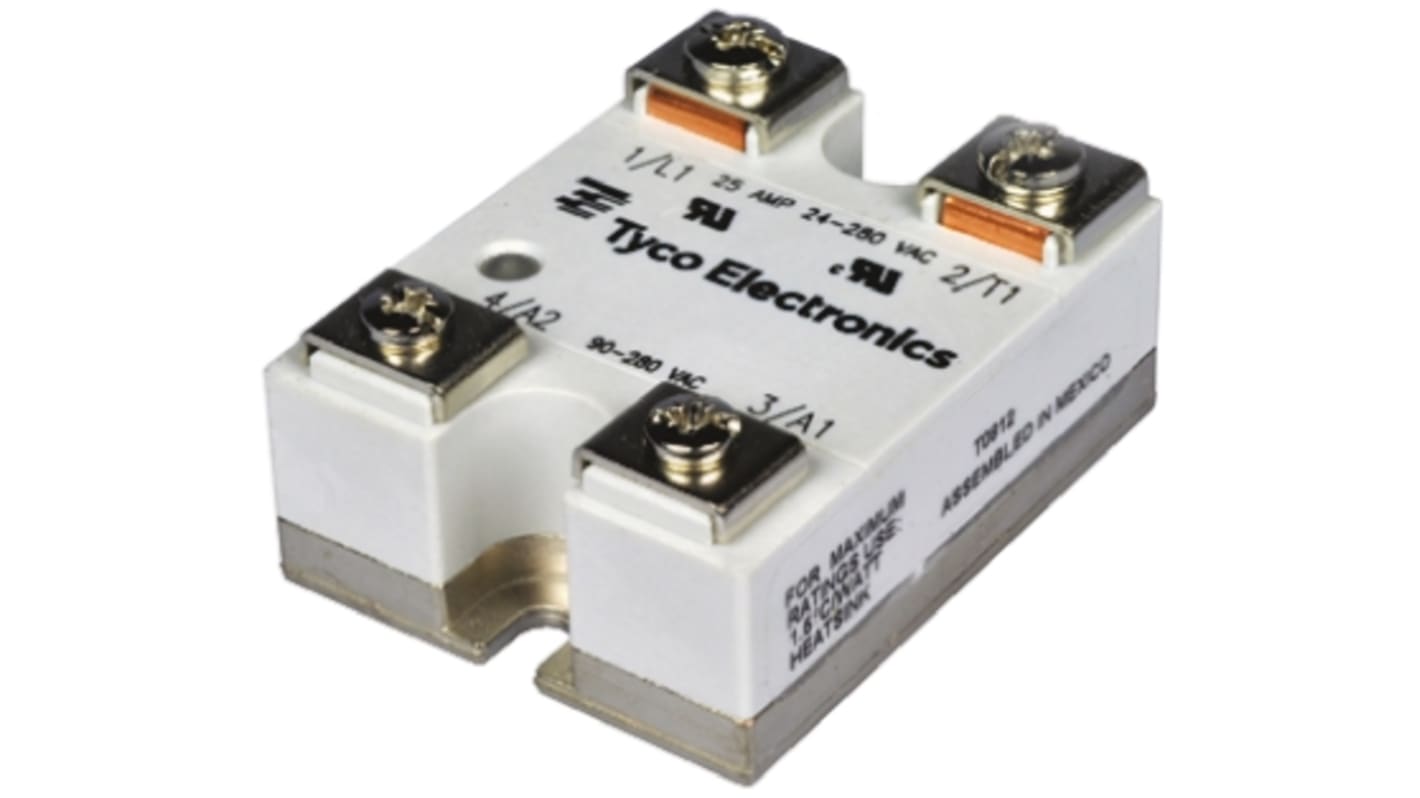

TE Connectivity Solid State Relay, 25 A Load, Panel Mount, 280 V rms Load, 32 V dc Control
- RS Stock No.:
- 715-0846
- Mfr. Part No.:
- SSR-240D25 1393030-7
- Brand:
- TE Connectivity
On back order for despatch 13/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$71.00
(exc. GST)
$78.10
(inc. GST)
| Units | Per unit |
| 1 - 9 | $71.00 |
| 10 - 49 | $70.15 |
| 50 + | $57.74 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 715-0846
- Mfr. Part No.:
- SSR-240D25 1393030-7
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
Solid State - SSR and SSRT Series
Standard “hockey puck” package
Enhanced noise immunity (designed to meet level 3 requirements of European EMC Directive)
LED indicator
4,000V rms isolation
Floating terminal design
Enhanced noise immunity (designed to meet level 3 requirements of European EMC Directive)
LED indicator
4,000V rms isolation
Floating terminal design
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V rms |
| Minimum Load Voltage | 24 V rms |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 3 V dc |
| Switching Type | Zero Crossing |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.05 A |
| Terminal Type | Screw |
| Contact Configuration | SPST |
| Output Device | Paired SCR |
| Package Style | Hockey Puck |
| Maximum Turn On Time | 8.3 ms |
| Load Voltage Range | 24 → 280Vrms |
| Dimensions | 57.15 x 44.45 x 22.1mm |
| Height | 22.1mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80°C |
| Length | 57.2mm |
| Off State Leakage Current | 0.1 mA |
| Depth | 44.5mm |
| Maximum Operating Temperature | +80°C |
