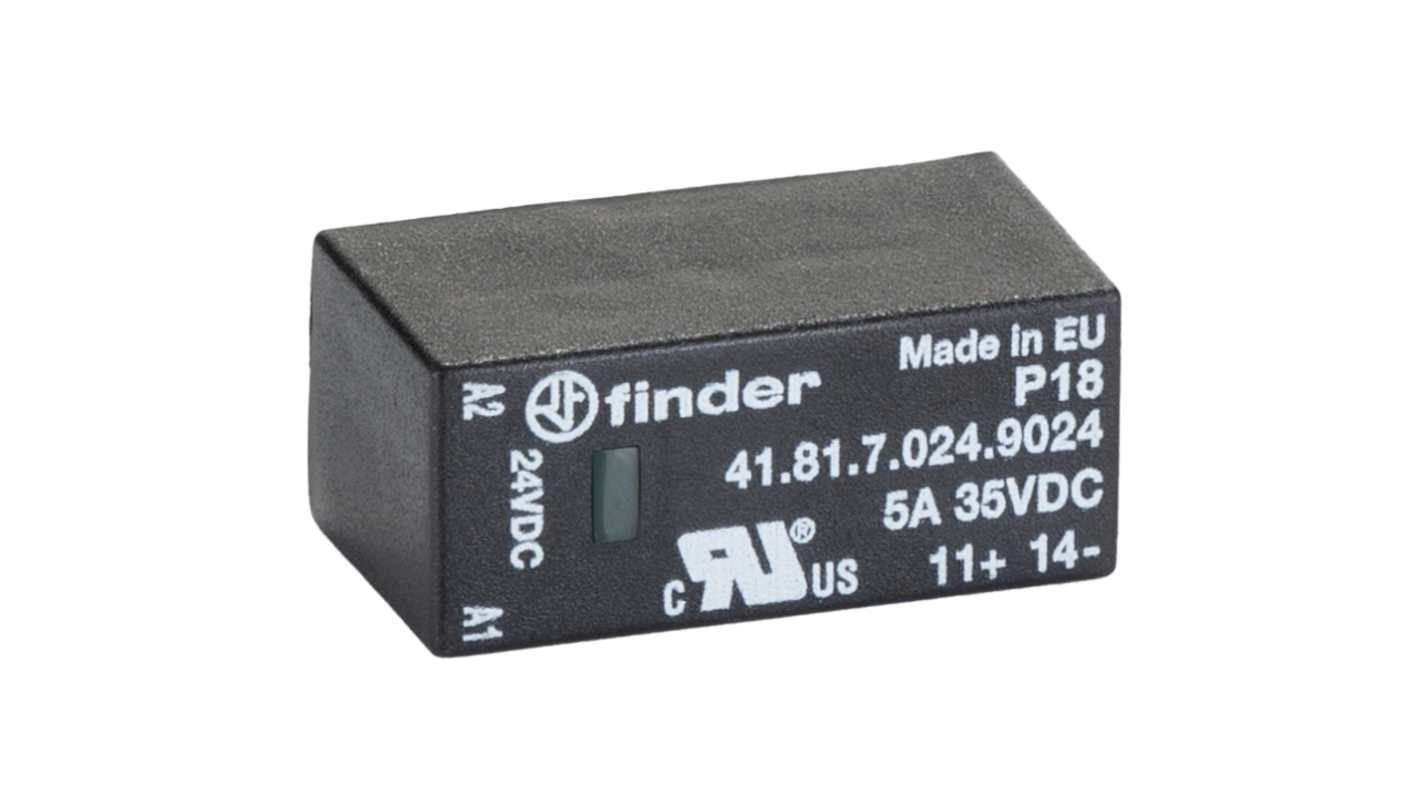

Finder 5 A SPNO Solid State Relay, DC, PCB Mount, 24 V dc Maximum Load

  • RS Stock No. 708-3106
  • Mfr. Part No. 41.81.7.024.9024
  • Manufacturer Finder
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

41 Series

PCB mount direct or via PCB socket
Silent, high speed switching with long electrical life
Low profile (15.7 mm)
2,500 V insulation, input-output
Wash tight: RT III

Specifications
Attribute Value
Minimum Load Current 1 mA
Maximum Load Current 5 A
Mounting Type PCB Mount
Series Series 41
Minimum Load Voltage 1.5 V dc
Maximum Load Voltage 24 V dc
Minimum Control Voltage 14 V dc
Maximum Control Voltage 32 V dc
Switching Type DC
Contact Configuration SPNO
Terminal Type Through Hole
Maximum Turn On Time 0.05 ms
Dimensions 29 x 12.7 x 15.7mm
Operating Temperature Range -20 → +60°C
Maximum Operating Temperature +60°C
Depth 12.7mm
Minimum Operating Temperature -20°C
Height 15.7mm
Control Voltage Range 14 → 32 V dc
Off State Leakage Current 0.01 mA
Length 29mm
Load Voltage Range 1.5 → 24V dc
181 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 47.33
(exc. GST)
$ 52.06
(inc. GST)
units
Per unit
1 - 9
$47.33
10 - 99
$46.14
100 - 249
$44.93
250 - 499
$43.69
500 +
$42.60
