Omron D4NL Series Limit Switch, Power to Lock, 24V dc, 1NC/1NO + 1NC/1NO

RS Stock No.:: 757-9216
Mfr. Part No.:: D4NL-1AFG-B
Brand:: Omron

Omron D4NL Series Limit Switch, Power to Lock, 24V dc, 1NC/1NO + 1NC/1NO

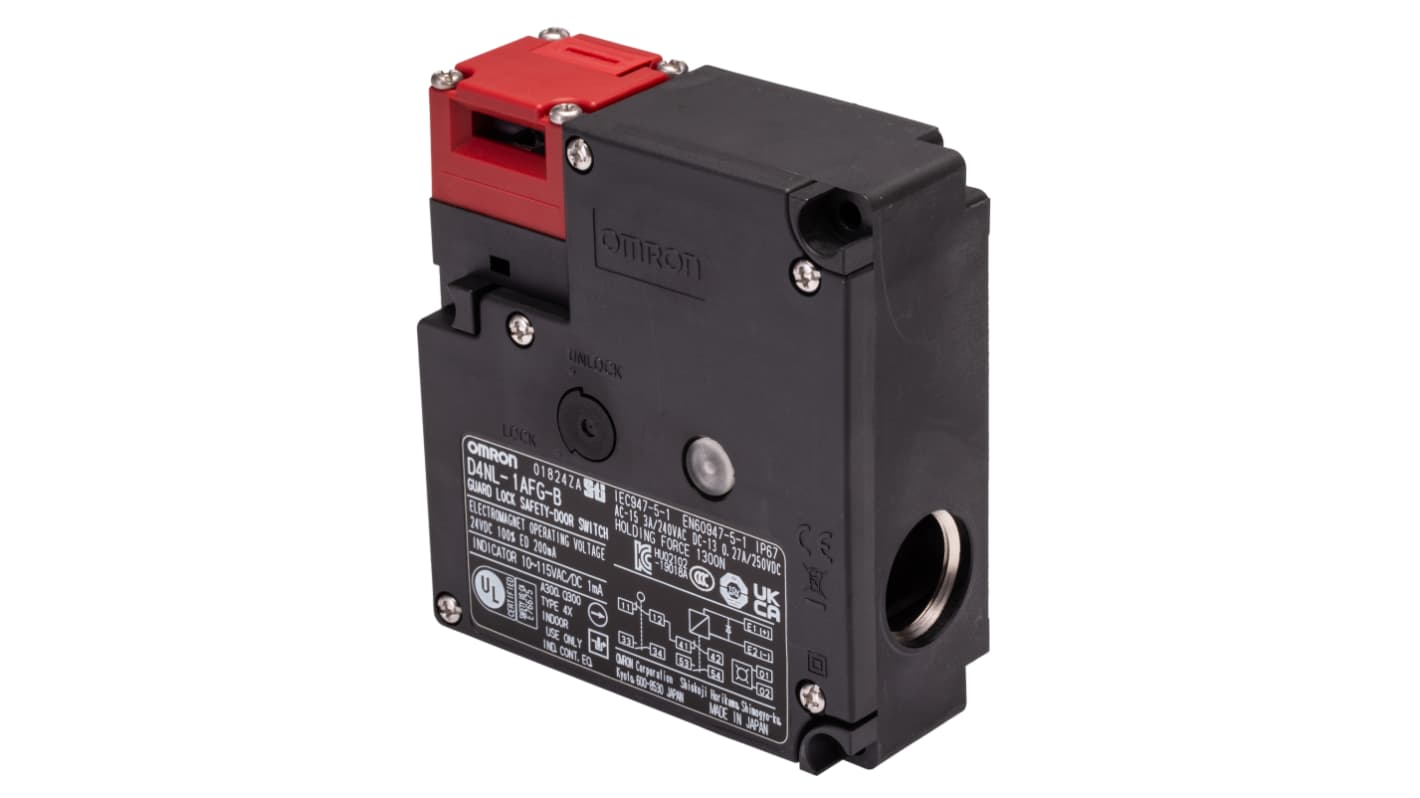

This image is representative of the product range

10 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$431.44

(exc. GST)

$474.58

(inc. GST)

Units	Per unit
1 - 2	$431.44
3 - 4	$414.17
5 +	$396.91

RS Stock No.:: 757-9216
Mfr. Part No.:: D4NL-1AFG-B
Brand:: Omron

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: JP

Product Details

D4NL Safety Guard-lock Door Switch

A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.

Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Standards

IEC/EN60947-5-1

Approvals

cULus, TUV, CE, CCC

Specifications

Attribute	Value
Power to Lock / Unlock	Power to Lock
Supply Voltage	24V dc
Series	D4NL
Safety Contacts	NO/NC
Conduit Entry	1/2 in NPT
Normal State Configuration	1NC/1NO + 1NC/1NO
Auxiliary Contacts	1NO/1NC
Housing Material	Plastic
IP Rating	IP67
Length	95mm
Width	88.5mm
Depth	35.5mm
