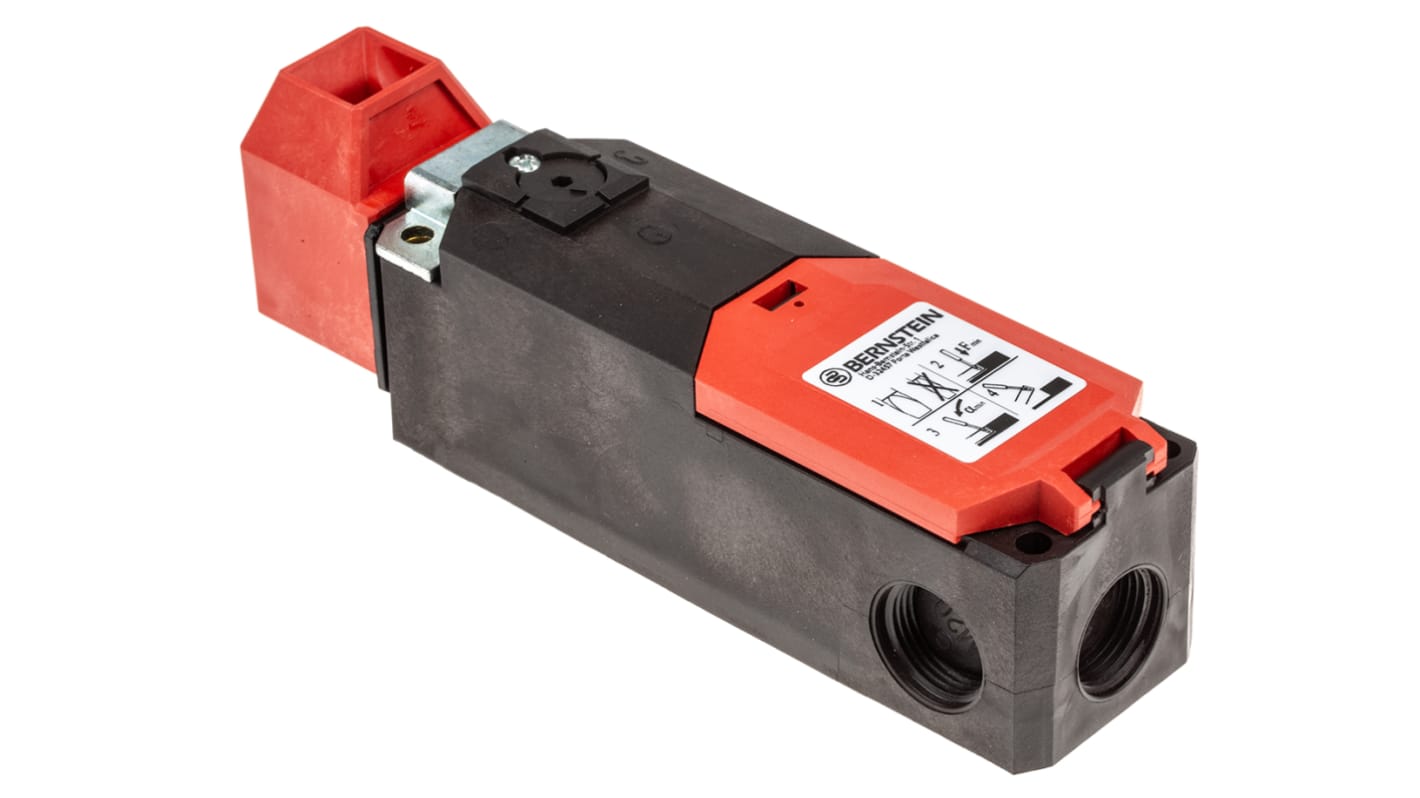

SLK Solenoid Interlock Switch Power to Unlock 24 V ac/dc

  • RS Stock No. 136-3174
  • Mfr. Part No. 6018119045
  • Manufacturer Bernstein AG
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

SLK Series Safety Limit Switches

Professional range of Bernstein safety limit switches from the SLK series. The limit switches incorporate triple coded anti-tamper mechanism and spring loaded terminals. All models are highly reliable and excellent quality.

Features & Benefits

Cable entry: 3 x M20 x 1.5
Separate Actuator (Stainless Steel)
Protection rating IP67
Spring-clamp Connection
Contact Type: 2 NC, 2NO
Actuators rotation in increments of 90°

Safety Limit Switch

Specifications
Attribute Value
Series SLK
Pole Configuration DP
Power to Lock / Unlock Power to Unlock
Actuator Included No
Actuator Type Various Options
Conduit Entry M20
Length 42.5mm
Width 51mm
Depth 184mm
Supply Voltage 24 V ac/dc
Maximum AC Voltage 24V
Housing Material Plastic
Maximum DC Voltage 24V
IP Rating IP67
Safety Contacts 1NO/1NC
Auxiliary Contacts NC/NO
Power Consumption 4.4 VA
Dimensions 42.5 x 51 x 184 mm
Standards Met IEC/EN 60529, UL 94 V-0
3 : Next working day (AU stock)
6 : 5 working days (Global stock)
Price (ex. GST) Each
$ 367.56
(exc. GST)
$ 404.32
(inc. GST)
units
Per unit
1 +
$367.56
