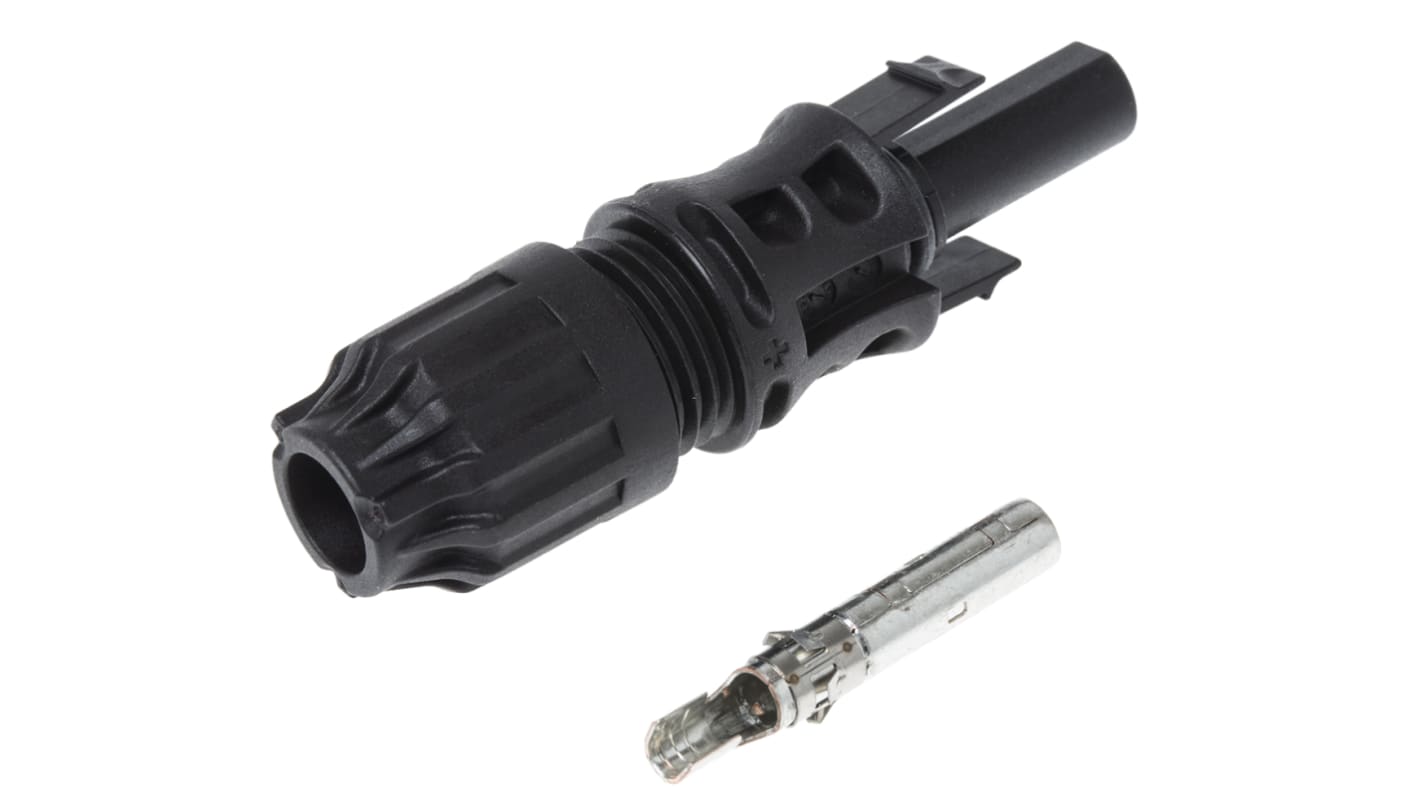

Female Cable Mount MC4 Connector Coupler Socket, Rated At 45A, 1.5 kV dc MC4-Evo2

  • RS Stock No. 175-0091
  • Mfr. Part No. 32.0086P0001-UR
  • Manufacturer Multi Contact
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

1500 V DC (UL) unrestricted access
MULTILAM Technology, has proven the quality and durability several 100 million imes since 2004
Suited for all climatic environments thanks to resistance to UV and ammonia.
Available as a field and preassembled connector, standard crimping tools can be used.

Specifications
Attribute Value
Type Coupler
Gender Female
Mounting Type Cable Mount
Termination Method Crimp
Current Rating 45A
Voltage Rating 1.5 kV dc
Plug/Socket Socket
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Series MC4-Evo2
On back order for despatch 04/03/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Pack of 5)
$ 4.292
(exc. GST)
$ 4.721
(inc. GST)
units
Per unit
Per Pack*
5 - 45
$4.292
$21.46
50 - 95
$4.112
$20.56
100 - 245
$3.948
$19.74
250 +
$3.796
$18.98
*price indicative
