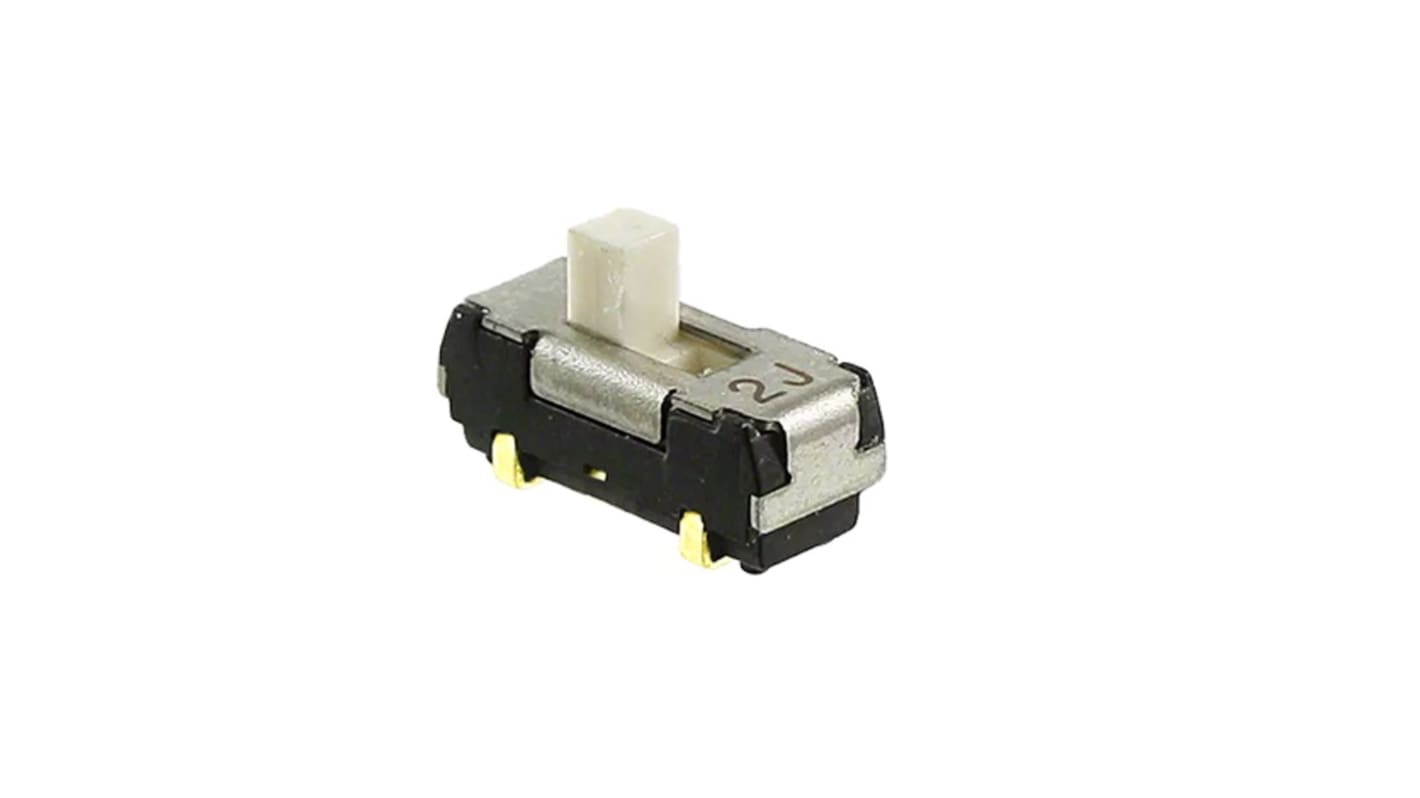

NIDEC COPAL ELECTRONICS GMBH Surface Mount Slide Switch SPDT SP 200 mA Slide
- RS Stock No.:
- 244-3504
- Mfr. Part No.:
- CL-SB-12A-02T
- Brand:
- NIDEC COPAL ELECTRONICS GMBH
On back order for despatch 11/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 500)
$1.804
(exc. GST)
$1.984
(inc. GST)
| Units | Per unit | Per Reel* |
| 500 - 500 | $1.804 | $902.00 |
| 1000 - 2000 | $1.731 | $865.50 |
| 2500 + | $1.64 | $820.00 |
| *price indicative | ||
- RS Stock No.:
- 244-3504
- Mfr. Part No.:
- CL-SB-12A-02T
- Brand:
- NIDEC COPAL ELECTRONICS GMBH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The NIDEC COPAL ELECTRONICS CL-SB series slide switch which has a standardization of the silver contacts as well as gold contacts.
Stroke is 2mm
Using heat resistant resin to support reflow soldering mounting
Available in wide variety of circuit composition, operating direction, terminal shape
Using heat resistant resin to support reflow soldering mounting
Available in wide variety of circuit composition, operating direction, terminal shape
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Surface Mount |
| Switch Operation | SP |
| Contact Current Rating | 200 mA |
| Actuator Type | Slide |
