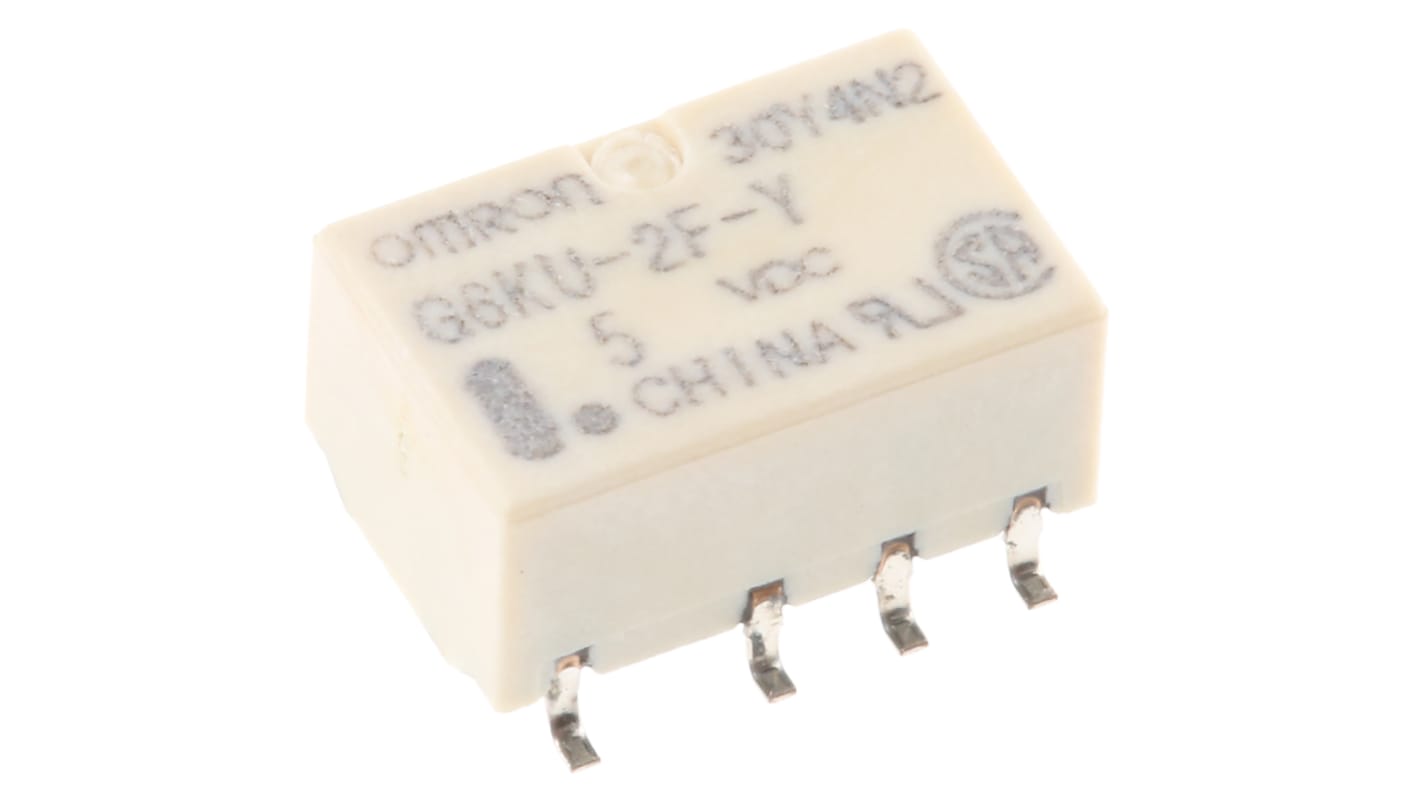

Omron Surface Mount Latching Signal Relay, 5V dc Coil, 1A Switching Current, DPDT

RS Stock No.:: 683-9753
Mfr. Part No.:: G6KU-2F-Y DC5
Brand:: Omron

Omron Surface Mount Latching Signal Relay, 5V dc Coil, 1A Switching Current, DPDT

1 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$5.82

(exc. GST)

$6.40

(inc. GST)

Units	Per unit
1 - 9	$5.82
10 - 49	$5.76
50 - 99	$5.65
100 - 249	$5.53
250 +	$5.43

RS Stock No.:: 683-9753
Mfr. Part No.:: G6KU-2F-Y DC5
Brand:: Omron

Technical data sheets

Surface-Mounting High-Frequency Relay – G6K(U)-2F

Legislation and Compliance

Product Details

Omron G6K Series

Low profile subminiature SMT relay - 5.2x6.5x10 mm
Fully sealed construction
Low power consumption of approximately 100mW
Incorporates a unique terminal structure with high infra-red irradiation efficiency, ensuring excellent soldering characteristics
G6K-2F types conform to FCC Part 68 (1500V for 10x160μs)
G6K-2G-Y, G6K-2F-Y & G6KU-2F-Y types conform to Bellcore specifications (2500V for 2x10μs)

Approvals

UL, CSA

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Coil Voltage	5V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current AC	1 A
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	60V dc
Maximum Switching Power DC	30 W
Latching	Yes
Length	10mm
Depth	7.8mm
Height	5.2mm
Dimensions	10 x 5.2 x 7.8mm
Terminal Type	Surface Mount
Application	Signal
Switching Current	1A
Coil Power	100mW
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	1.5kV ac
Life	10000000 (Electrical) cycles, 50000000 (Mechanical) cycles
Features	3.2mm Pitch
Contact Material	Gold Plated
Coil Resistance	237 Ω
Operating Temperature Range	-40 → +70°C
Maximum Switching Power AC	37.5 VA
