Omron Surface Mount Latching Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT

RS Stock No.:: 683-9744
Mfr. Part No.:: G6KU-2F-Y DC4.5
Brand:: Omron

Omron Surface Mount Latching Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT

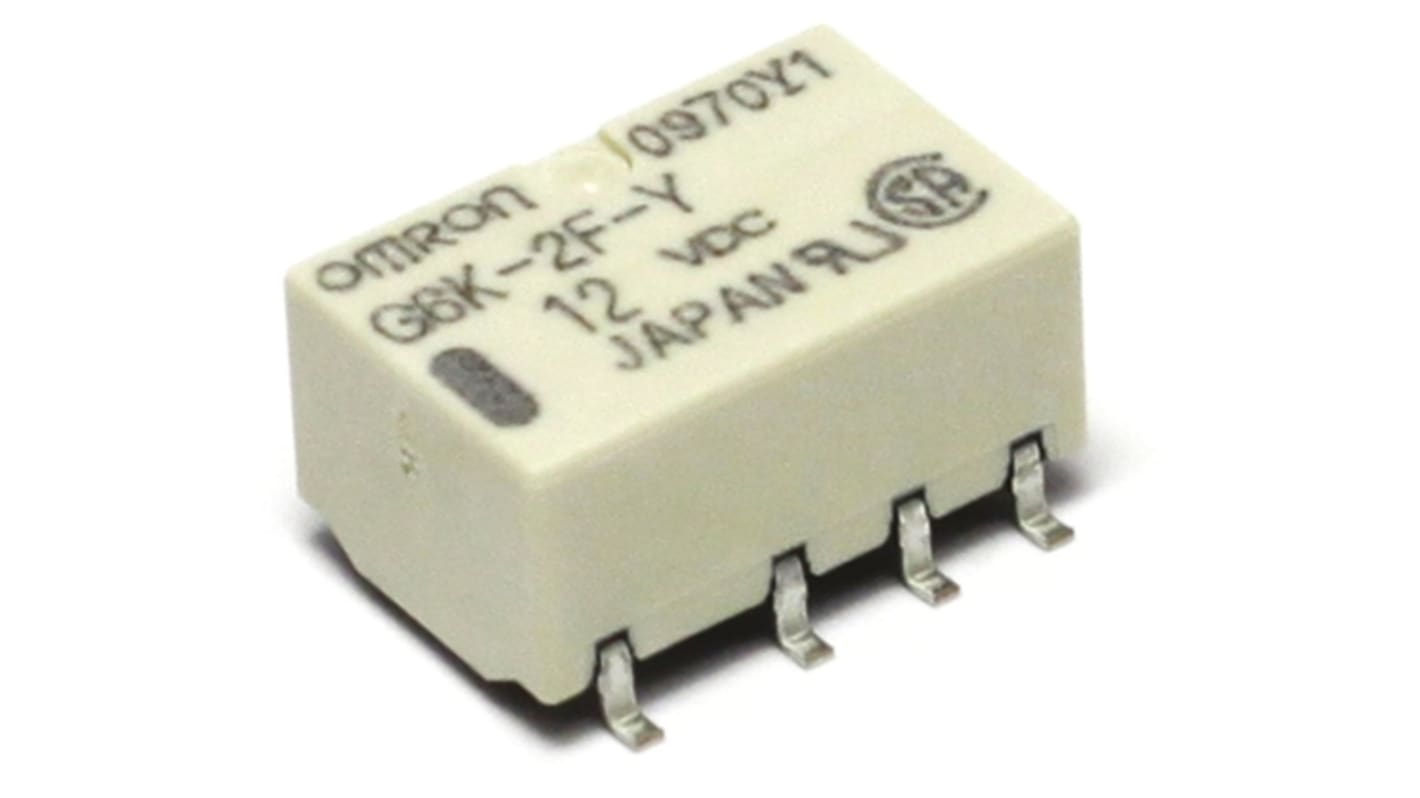

This image is representative of the product range

70 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$6.67

(exc. GST)

$7.34

(inc. GST)

Units	Per unit
1 +	$6.67

RS Stock No.:: 683-9744
Mfr. Part No.:: G6KU-2F-Y DC4.5
Brand:: Omron

Surface-Mounting High-Frequency Relay – G6K(U)-2F

Attribute	Value
Coil Voltage	4.5V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current AC	1 A
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	60V dc
Maximum Switching Power DC	30 W
Latching	Yes
Length	10mm
Depth	7.8mm
Height	5.2mm
Dimensions	10 x 5.2 x 7.8mm
Terminal Type	Surface Mount
Switching Current	1A
Application	Signal
Coil Power	100mW
Life	10000000 (Electrical) cycles, 50000000 (Mechanical) cycles
Coil Resistance	194 Ω
Operating Temperature Range	-40 → +70°C
Features	3.2mm Pitch
Maximum Switching Power AC	37.5 VA
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	1.5kV ac
Contact Material	Gold Plated

Omron Surface Mount Latching Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT

Omron G6K Series
