- RS Stock No.:
- 163-5212
- Mfr. Part No.:
- 354003
- Brand:
- Wurth Elektronik
25 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Box of 25)
$51.323
(exc. GST)
$56.455
(inc. GST)
Units | Per unit | Per Box* |
25 - 100 | $51.323 | $1,283.075 |
125 + | $50.194 | $1,254.85 |
*price indicative |
- RS Stock No.:
- 163-5212
- Mfr. Part No.:
- 354003
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

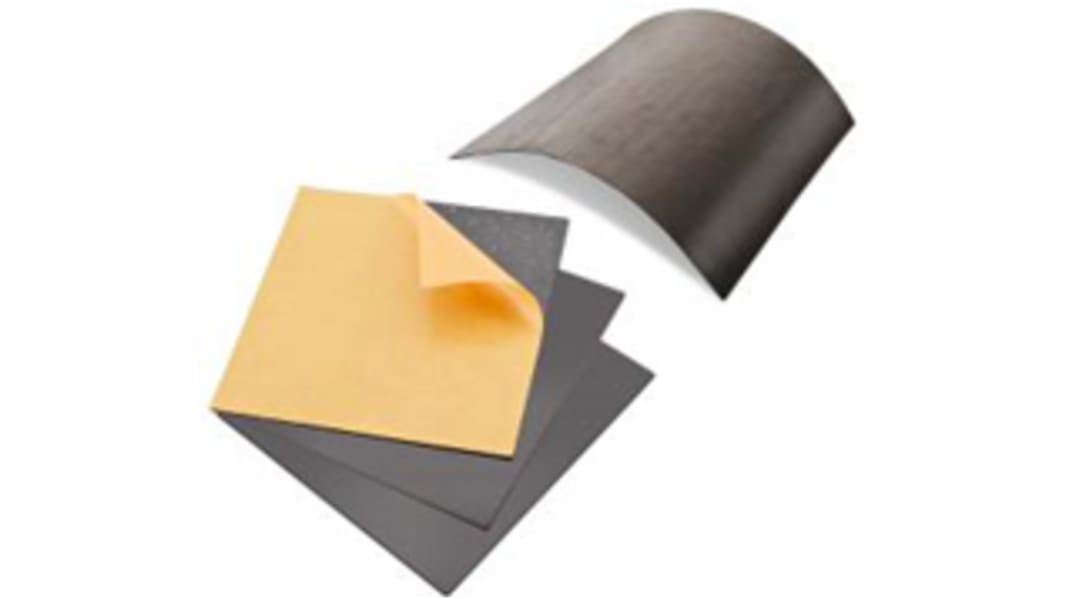

Wurth Elektronik WE-FSFS Flexible Sintered Ferrite Sheet
The WE-FSFS series of ferrite sheets from Wurth Elektronik are constructed from a flexible ferrite sheet with an adhesive. The adhesive mounting tape ensures easy application. These ferrite sheets can be used in NFC and RFID communication systems to improve performance. WE-FSFS ferrite sheets can improve the efficiency of wireless power transfers (Qi-WPC, A4WP, WCT and PMA).
Features & Benefits
Easy application
Magnetic shielding
High permeability
Low losses at communication frequency
Magnetic shielding
High permeability
Low losses at communication frequency
Product Application Information
Suitable applications for WE-FSFS sheets include wireless power charging (WPC), magnetic shielding and EMI suppression.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Material | Ferrite |
Fixing Method | Self-Adhesive |
Thickness | 0.3mm |
Series | WE-FSFS |
Length | 120mm |
Width | 120mm |
Peak Frequency | 13.56MHz |
Minimum Shielded Frequency | 1MHz |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85 °C |
