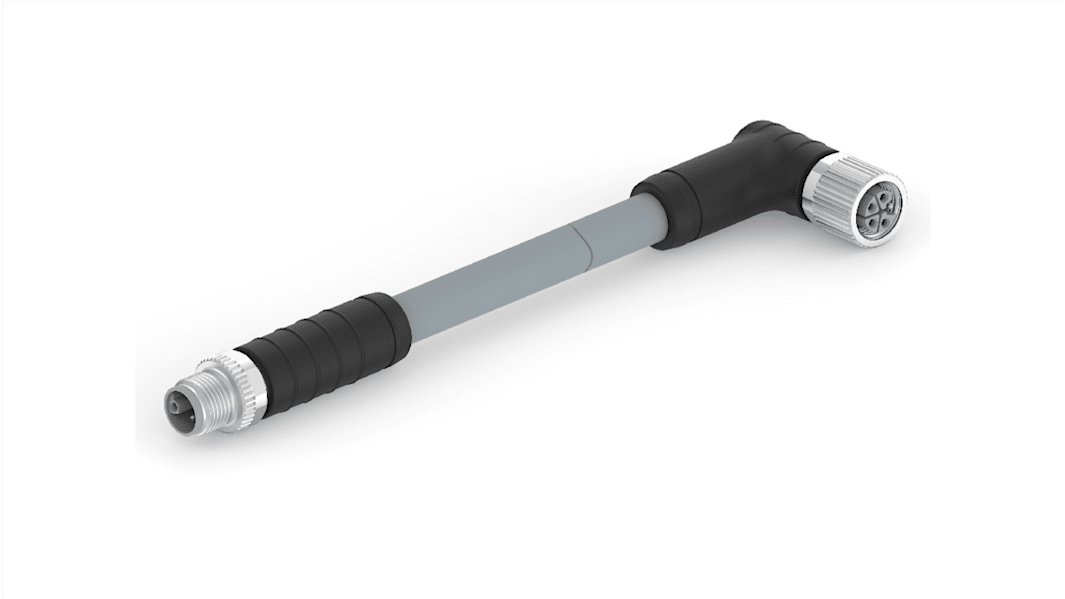

TE Connectivity Straight Male 5 way M12 to Right Angle Female 5 way M12 Sensor Actuator Cable, 5m
- RS Stock No.:
- 238-4574
- Mfr. Part No.:
- T41526B9L25-005
- Brand:
- TE Connectivity
Subtotal (1 bag of 12 units)**
$1,660.16
(exc. GST)
$1,826.18
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Bag** |
|---|---|---|
| 12 - 48 | $138.347 | $1,660.164 |
| 60 + | $124.512 | $1,494.144 |
**price indicative
- RS Stock No.:
- 238-4574
- Mfr. Part No.:
- T41526B9L25-005
- Brand:
- TE Connectivity
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | M12 L-Code | |
| Cross Sectional Area | 2.5 mm² | |
| Length | 5m | |
| Sheath Colour | Grey | |
| Sheath Material | Nylon | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 2 | M12 | |
| Connector 2 Gender | Female | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Housing Gender | Female | |
| Coding | L | |
| Current Rating | 16 A | |
| Voltage Rating | 63 V | |
| IP Rating | IP67 | |
| American Wire Gauge | 14 AWG | |
| Number of Strands | 124 | |
| Insulation Material | PP | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Outer Diameter | 9.65mm | |
| Standards Met | UL | |
| Connector 1 Housing Gender | Male | |
| Conductor Material | Copper | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series M12 L-Code | ||
Cross Sectional Area 2.5 mm² | ||
Length 5m | ||
Sheath Colour Grey | ||
Sheath Material Nylon | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 2 M12 | ||
Connector 2 Gender Female | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Housing Gender Female | ||
Coding L | ||
Current Rating 16 A | ||
Voltage Rating 63 V | ||
IP Rating IP67 | ||
American Wire Gauge 14 AWG | ||
Number of Strands 124 | ||
Insulation Material PP | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Outer Diameter 9.65mm | ||
Standards Met UL | ||
Connector 1 Housing Gender Male | ||
Conductor Material Copper | ||
