Infineon 40 V 250 mA Schottky Diode Schottky 3-Pin SOT-23 BAT6405E6327HTSA1

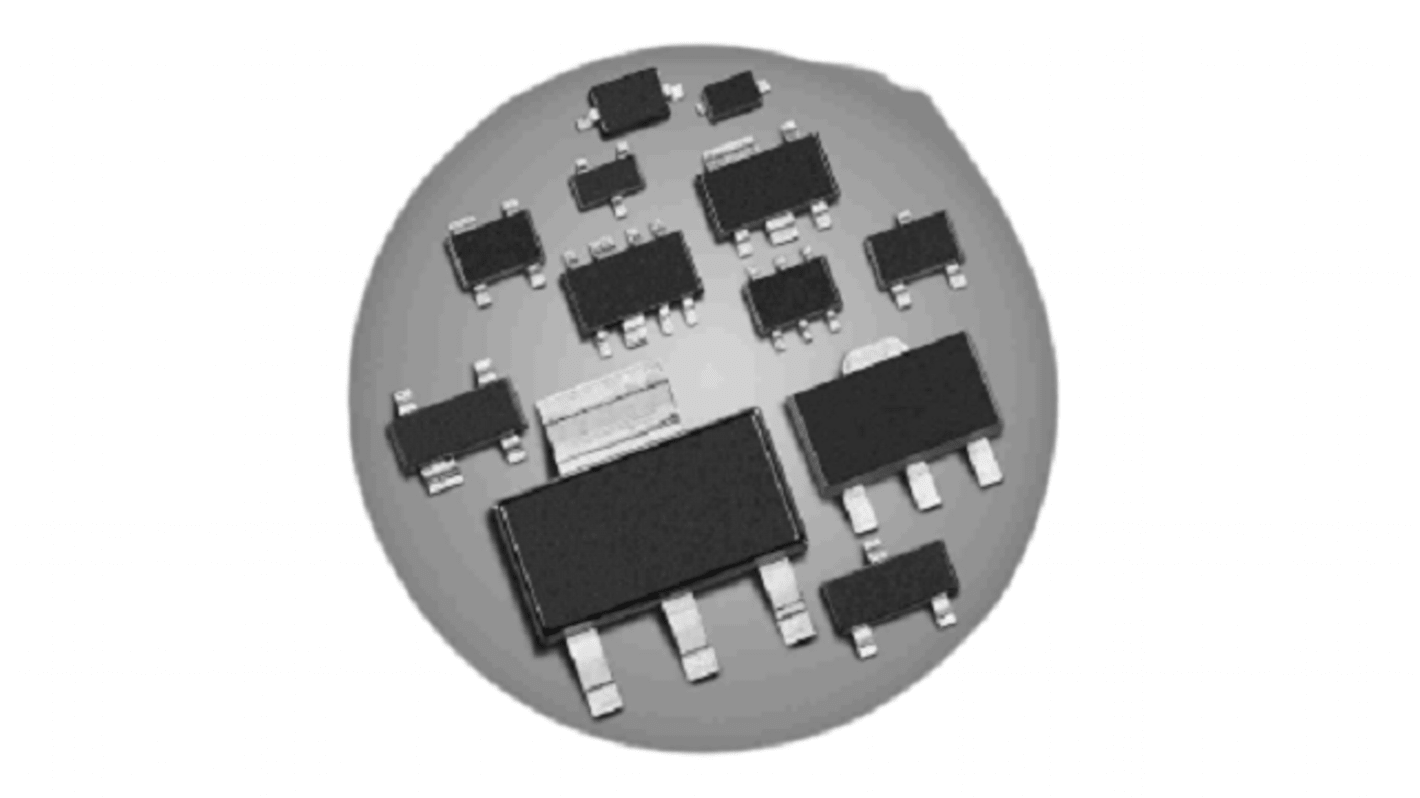

This image is representative of the product range

View this category
Bulk discount available

Subtotal (1 pack of 10 units)*

$1.24

(exc. GST)

$1.36

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 560 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 10$0.124$1.24
20 - 90$0.112$1.12
100 - 240$0.101$1.01
250 - 490$0.09$0.90
500 +$0.081$0.81

*price indicative

Packaging Options:
RS Stock No.:
249-7015
Mfr. Part No.:
BAT6405E6327HTSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Mount Type

Surface

Product Type

Schottky Diode

Package Type

SOT-23

Maximum Continuous Forward Current If

250mA

Peak Reverse Repetitive Voltage Vrrm

40V

Series

BAT64

Diode Configuration

2x Common Cathode Pair

Rectifier Type

Schottky

Pin Count

3

Peak Reverse Current Ir

2μA

Peak Non-Repetitive Forward Surge Current Ifsm

600mA

Minimum Operating Temperature

-65°C

Maximum Forward Voltage Vf

800mV

Maximum Operating Temperature

150°C

Height

2.4mm

Width

1 mm

Length

2.9mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The Infineon silicon schottky diode is high current rectifier schottky diode for low-loss, meter protection, bias isolation and clamping applications with very low VF drop. It is used for power supply applications, clamping and protection in low voltage a

Fast recovery

Pb-free

RoHS compliant
