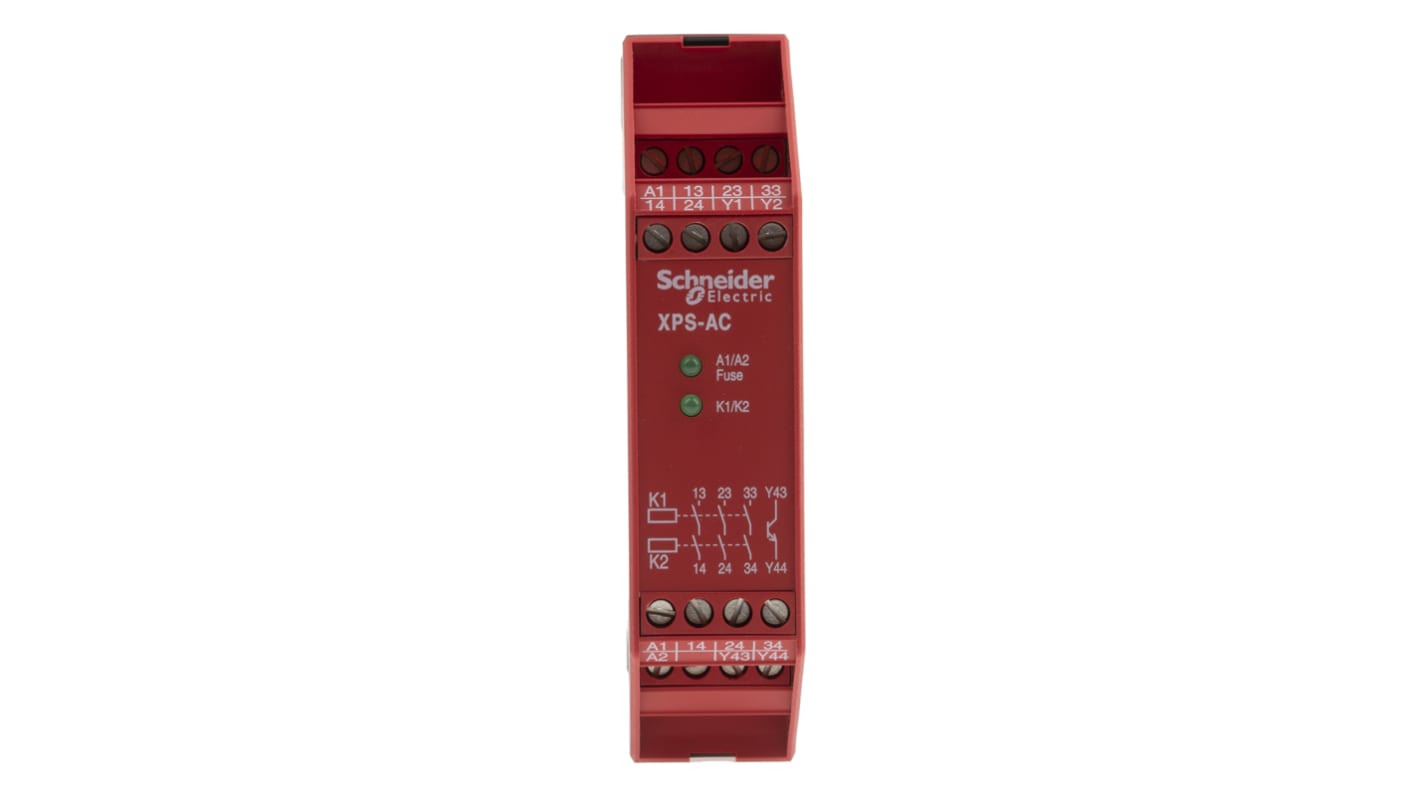

Schneider Electric Preventa XPS AC Emergency Stop Safety Relay, 24V ac/dc, 3 Safety Contacts

RS Stock No.:: 447-4477
Mfr. Part No.:: XPSAC5121
Brand:: Schneider Electric

Schneider Electric Preventa XPS AC Emergency Stop Safety Relay, 24V ac/dc, 3 Safety Contacts

Subtotal (1 unit)**

$265.33

(exc. GST)

$291.86

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit
1 +	$265.33

**price indicative

RS Stock No.:: 447-4477
Mfr. Part No.:: XPSAC5121
Brand:: Schneider Electric

Schneider Electric | Preventa XPSAC Series | Safety Relays

Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPSAC' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.

Features and benefits:

Single channel safety relay output provided with 3 N/O safety relay outputs plus1 solid-state output PLC signalling.

Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.

24 V DC option incorporated for each supply voltage versions.

Slim in design, meaning it can fit nicely even in space constraint spaces.

22.5 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.

Local signalling in the form of LEDs to help aid in diagnostics (these provide information on the circuit status).

Protection ratings & Safety features (see datasheet for specifics) -

Input protection type is internal, electronic.

EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850

CSA, TUV & UL listed

IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.

IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.

Applications -

All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications

Time delay input if needed allowing you to set up your own time function.

Two-hand control safety circuits

Sensing mats and edges

Safety Curtains

Standards

IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088

Approvals

BG, UL, CSA

Schneider Electric Safety Relay, 24V AC/DC Supply Voltage, 3NO Contacts - Preventa XPSAC Series - XPSAC5121

Keep close watch over critical systems with this safety relay from Schneider Electric. Thanks to its three NO contacts, it lets you shut down up to three connected devices in the event of a hazard. A maximum response time of 100ms means it cuts power in a flash when it detects a problem in your circuit. Two LEDs let you know its operating status at a glance to make monitoring a piece of cake. A supply voltage of 24V AC/DC means this is a good choice for low-power systems.

Features & Benefits

• Clips onto a DIN rail for speedy installation
• Captive screw clamp terminals give you a secure electrical connection
• Red colour means it stands out as an emergency device for ease of identification
• Mean time to failure of 210.4 years for long-lasting use

Applications

• Assembly lines
• Packaging equipment
• Industrial motors
• Processing machines

How energy-efficient is this safety relay?

This relay has a low current consumption of 40mA at 24V DC and 90mA at 24V AC, so you can count on it for energy-efficient operation.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Supply Voltage	24V ac/dc
	Safety Contacts	3
	Function	Emergency Stop
	Auxiliary Contacts	1
	Range	Preventa
	Safety Category ISO 13849-1	4
	PL ISO 13849-1	e
	SIL IEC 61508	3
	Terminal Type	Screw
	Standards Met	CSA, UL Listed
	Depth	114mm
	Series	XPS AC
	Safety Category	3
	Width	22.5mm
	Performance Level	e
	Length	99mm

	Select all
	Brand Schneider Electric
	Supply Voltage 24V ac/dc
	Safety Contacts 3
	Function Emergency Stop
	Auxiliary Contacts 1
	Range Preventa
	Safety Category ISO 13849-1 4
	PL ISO 13849-1 e
	SIL IEC 61508 3
	Terminal Type Screw
	Standards Met CSA, UL Listed
	Depth 114mm
	Series XPS AC
	Safety Category 3
	Width 22.5mm
	Performance Level e
	Length 99mm
