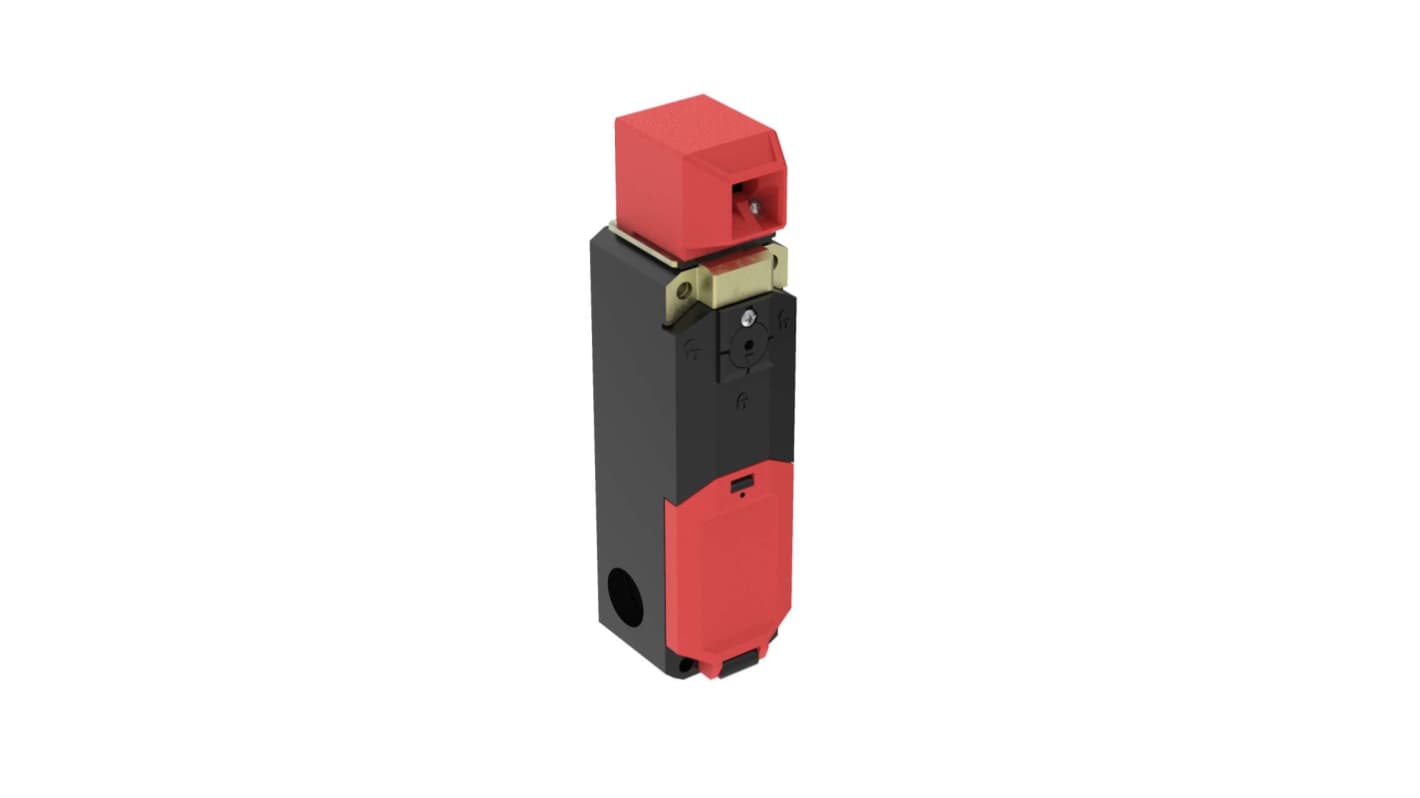

Banner SI-LS42DMI Safety Interlock Switch, Mechanical Bolt Actuator Included, Metal

View all Safety Interlock Switches

Subtotal (1 unit)*

$683.43

(exc. GST)

$751.77

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$683.43

*price indicative

RS Stock No.:
286-006
Mfr. Part No.:
SI-LS42DMI
Brand:
Banner
Find similar products by selecting one or more attributes.
Select all

Brand

Banner

Lock Style

Mechanical Bolt

Product Type

Safety Interlock Switch

Actuator Included

Yes

Safety Contacts

2 NO

Housing Material

Metal

Series

SI-LS42DMI

Switch Contact Current

10A

IP Rating

IP67

Minimum Operating Temperature

-25°C

Contact DC Voltage

24V dc

Maximum Operating Temperature

70°C

Hazardous Area Certification

No

Length

170mm

Depth

43mm

Width

43mm

Standards/Approvals

IEC 62061, ISO 13857, ISO 12100, ANSI B11.20, IEC 60947-5-1, ANSI B11.19, ISO 14120, ISO 13849-1, ISO 13849-2, ISO 11161, ANSI B11.0, ISO 14119, ANSI Z244.1

Number of Head Directions

8

Conduit Entry

M20 x 1.5

The Banner Positive Opening Safety Contacts (IEC 60947-5-1) are designed to monitor both the presence of the actuator and whether it is securely locked into the interlock.

Rigid in-line
