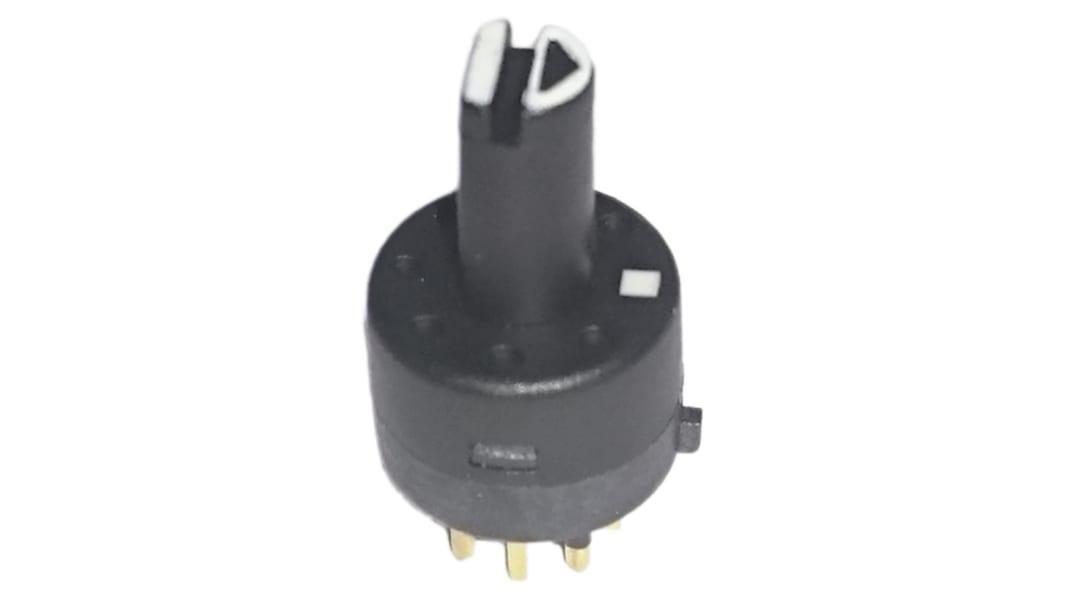

Lorlin, 8 Position SP8T Rotary Switch, 500 mA, PCB Pin

RS Stock No.:: 899-8551
Mfr. Part No.:: MTL-21-10
Brand:: Lorlin

Lorlin, 8 Position SP8T Rotary Switch, 500 mA, PCB Pin

3922 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$18.78

(exc. GST)

$20.66

(inc. GST)

Units	Per unit
1 +	$18.78

RS Stock No.:: 899-8551
Mfr. Part No.:: MTL-21-10
Brand:: Lorlin

Technical data sheets

MTS Subminiature Rotaryswitch Data Sheet

Legislation and Compliance

Product Details

Subminiature TO-5 Rotary Switch

Compact rotary switch in a convenient 9.2mm diameter TO-5 package
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications

Attribute	Value
Contact Configuration	SP8T
Contact Current Rating	500 mA
Number of Switch Positions	8
Number of Contacts	8
Voltage Rating	24V ac/dc
Diameter	9.2mm
Dimensions	9.2 (Dia.) x 14.2mm
Mounting Type	PCB
Mounting Hole Size	0.76mm
Terminal Type	PCB Pin
Height	14.2mm
Minimum Operating Temperature	-30°C
Mechanical Life	>5000Cycles
Case Material	Glass Filled Polyester PBT
Contact Material	Gold Plated Brass
Maximum Operating Temperature	+65°C
Contact Type	Shorting
Angle of Throw	360°
Actuator Colour	Black
