Molex, VersaKrimp Uninsulated Ring Terminal, M4 (#8) Stud Size, 2.5mm² to 6mm² Wire Size

RS Stock No.:: 790-6986
Mfr. Part No.:: 19323-0012
Brand:: Molex

Molex, VersaKrimp Uninsulated Ring Terminal, M4 (#8) Stud Size, 2.5mm² to 6mm² Wire Size

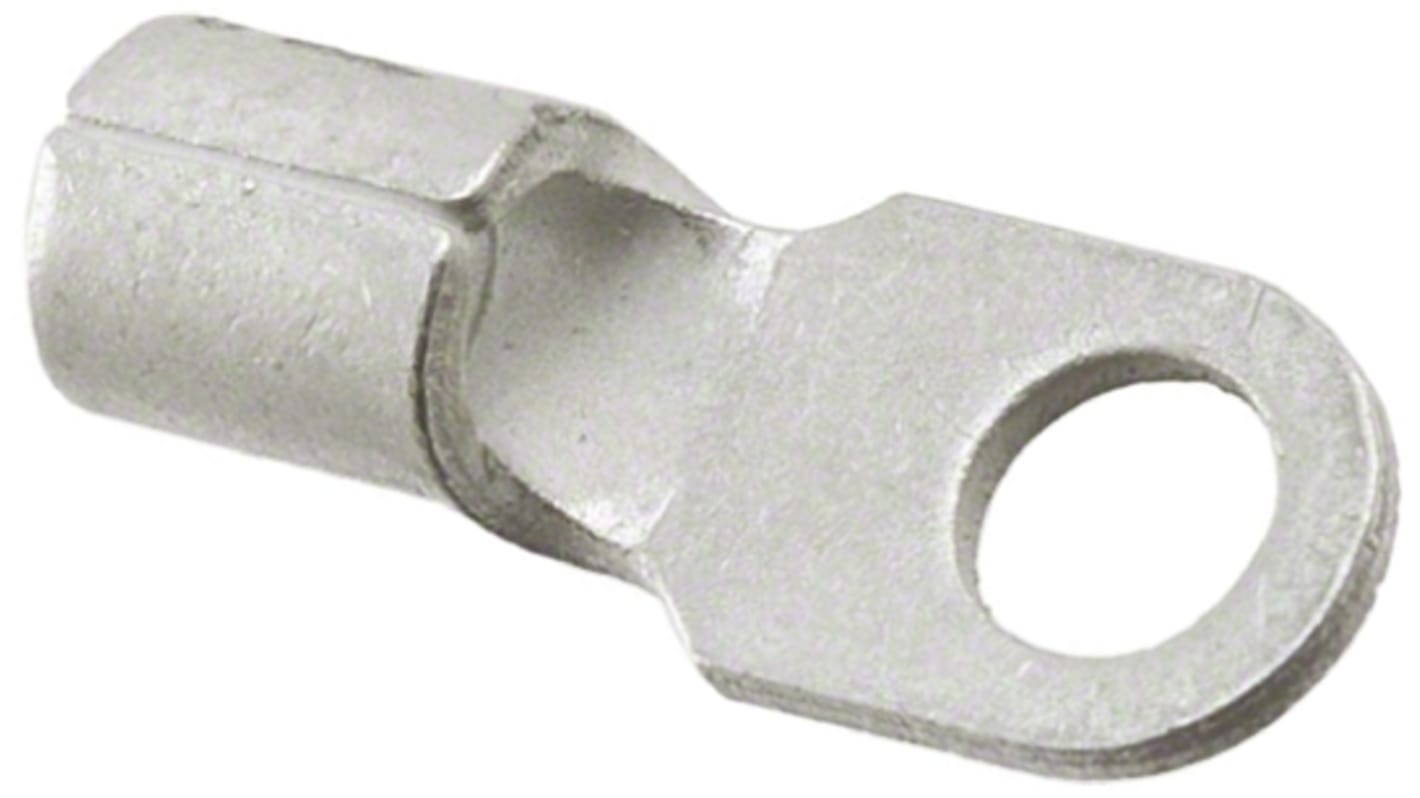

This image is representative of the product range

300 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 50)

$0.784

(exc. GST)

$0.862

(inc. GST)

Units	Per unit	Per Pack*
50 - 100	$0.784	$39.20
150 - 200	$0.77	$38.50
250 +	$0.756	$37.80
*price indicative

RS Stock No.:: 790-6986
Mfr. Part No.:: 19323-0012
Brand:: Molex

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Molex VersaKrimp Uninsulated Crimp Ring Terminals

Avikrimp™ insulated metric crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from oxygen free copper with tin plating and have a tin plated brass ferrule. A double crimp is created with both the conductor and insulation which provides good vibration resistance. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Series	VersaKrimp
Insulation	Uninsulated
Outer Ring Diameter	7.16mm
Inner Ring Diameter	4.39mm
Maximum Wire Size mm²	6mm²
Minimum Wire Size mm²	2.5mm²
Stud Size	M4 (#8)
Contact Material	Copper Alloy
Contact Plating	Tin
Thickness	1.02mm
Overall Length	15.2mm
Maximum Operating Temperature	+149°C
