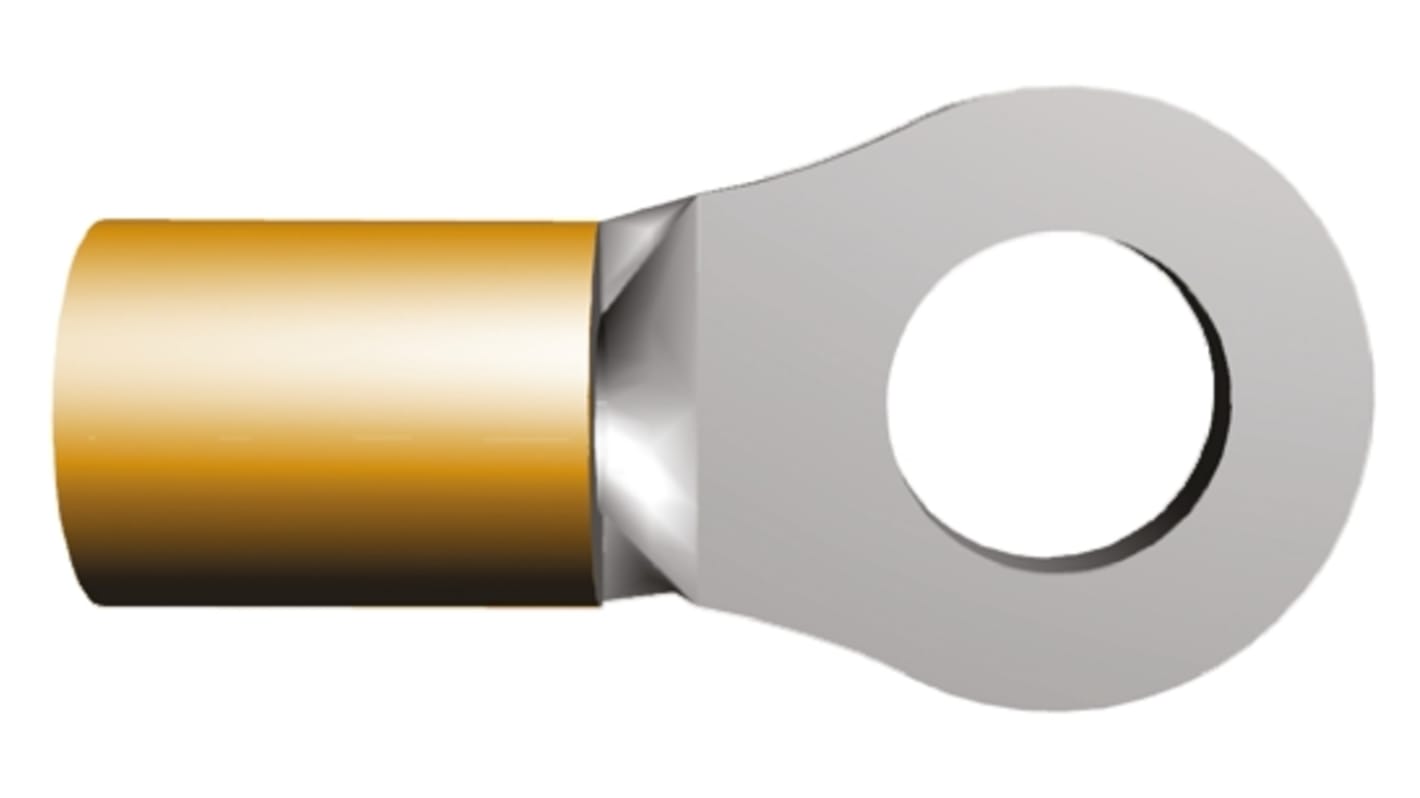

TE Connectivity, STRATO-THERM Insulated Ring Terminal, M2.5 Stud Size, 0.26mm² to 1.65mm² Wire Size, Orange
- RS Stock No.:
- 745-5491
- Mfr. Part No.:
- 321884
- Brand:
- TE Connectivity
125 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$2.33
(exc. GST)
$2.56
(inc. GST)
| Units | Per unit |
| 1 + | $2.33 |
- RS Stock No.:
- 745-5491
- Mfr. Part No.:
- 321884
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).
Note
For suitable hand crimp tool see stock number 162-3159
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity STRATO-THERM Terminals and Splices
Specifications
Attribute | Value |
|---|---|
| Series | STRATO-THERM |
| Insulation | Insulated |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.02mm |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Maximum Wire Size AWG | 16AWG |
| Minimum Wire Size AWG | 22AWG |
| Stud Size | M2.5 |
| Colour | Orange |
| Contact Plating | Nickel |
| Contact Material | Copper |
| Thickness | 0.79mm |
| Overall Length | 11.4mm |
