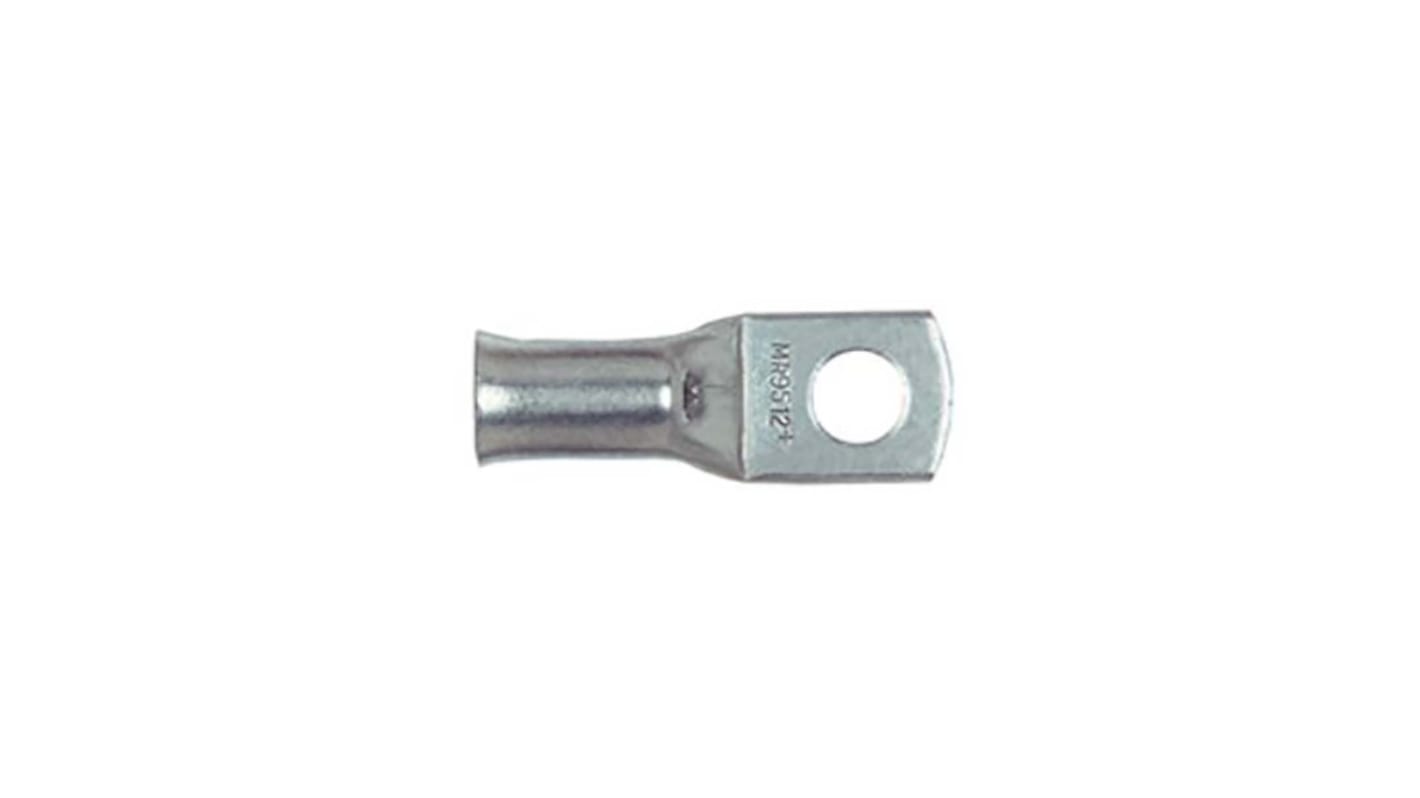

MECATRACTION, C Uninsulated Tubular Ring Terminal, M20 Stud Size, Grey
- RS Stock No.:
- 200-6954
- Mfr. Part No.:
- C2-300-20CT
- Brand:
- MECATRACTION
Bulk discount available
Subtotal (1 box of 2 units)*
$73.69
(exc. GST)
$81.06
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 8 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 2 - 8 | $36.845 | $73.69 |
| 10 + | $33.16 | $66.32 |
*price indicative
- RS Stock No.:
- 200-6954
- Mfr. Part No.:
- C2-300-20CT
- Brand:
- MECATRACTION
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Series | C | |
| Product Type | Tubular Ring Terminal | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 21mm | |
| Outer Ring Diameter | 41mm | |
| Overall Length | 97.5mm | |
| Stud Size | M20 | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Series C | ||
Product Type Tubular Ring Terminal | ||
Insulation Uninsulated | ||
Inner Ring Diameter 21mm | ||
Outer Ring Diameter 41mm | ||
Overall Length 97.5mm | ||
Stud Size M20 | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals No | ||
C2-300-20CT
The Mecatraction copper tubular lug for 300mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
