TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M3 Stud Size, 0.26mm² to 1mm² Wire Size, Red

RS Stock No.:: 190-4049
Mfr. Part No.:: 170780-1
Brand:: TE Connectivity

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M3 Stud Size, 0.26mm² to 1mm² Wire Size, Red

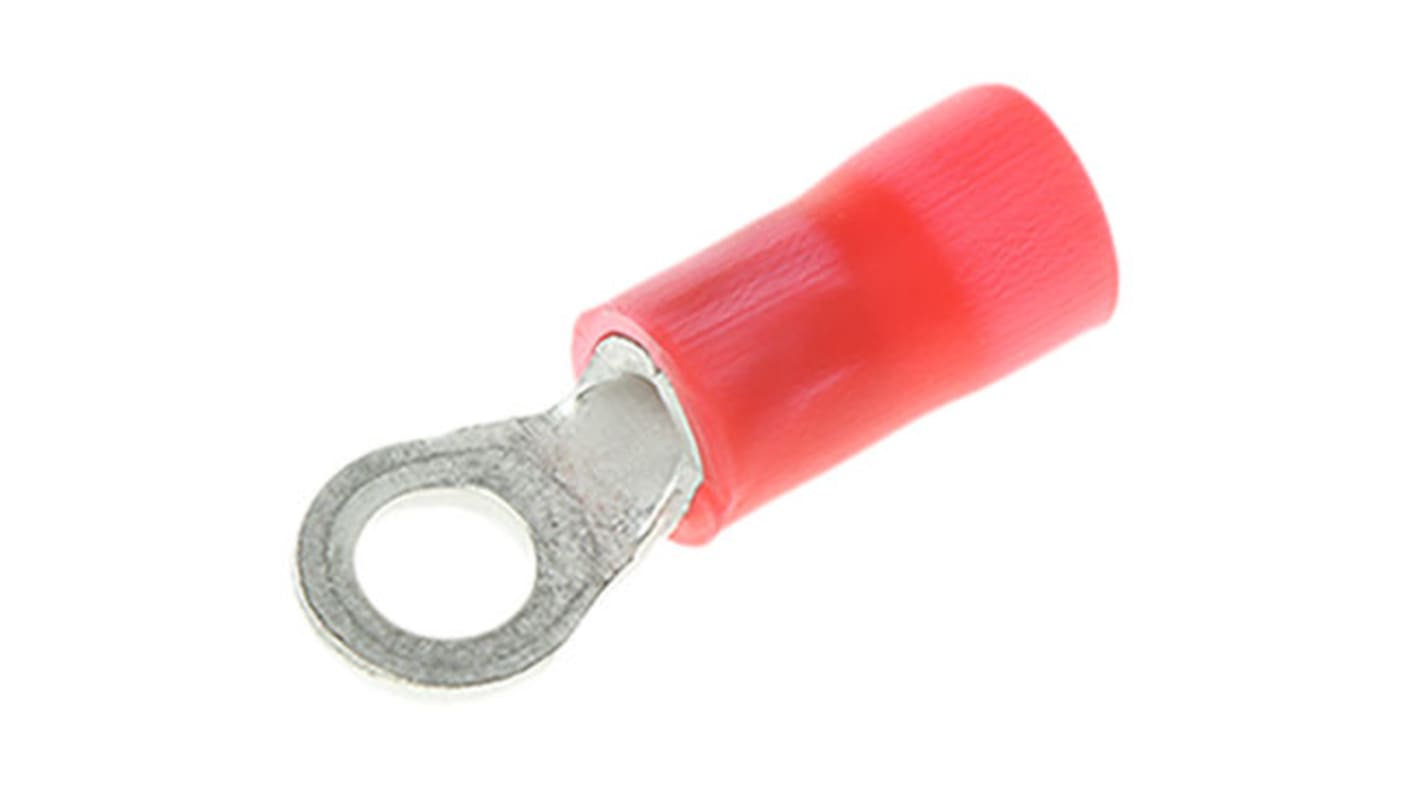

This image is representative of the product range

491 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Pack of 5000

$1,624.75

(exc. GST)

$1,787.23

(inc. GST)

Pack(s)	Per Pack	Per unit*
1 - 1	$1,624.75	$0.325
2 - 3	$1,584.14	$0.317
4 +	$1,559.77	$0.312
*price indicative

RS Stock No.:: 190-4049
Mfr. Part No.:: 170780-1
Brand:: TE Connectivity

Technical data sheets

Datasheet - 170780-1

Legislation and Compliance

Product Details

TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals

PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

TE Connectivity Plasti-Grip Terminals

Specifications

Attribute	Value
Series	PLASTI-GRIP
Insulation	Insulated
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	1mm²
Maximum Wire Size AWG	18AWG
Minimum Wire Size AWG	22AWG
Stud Size	M3
Colour	Red
Contact Material	Copper
Contact Plating	Tin
Overall Length	17.5mm
