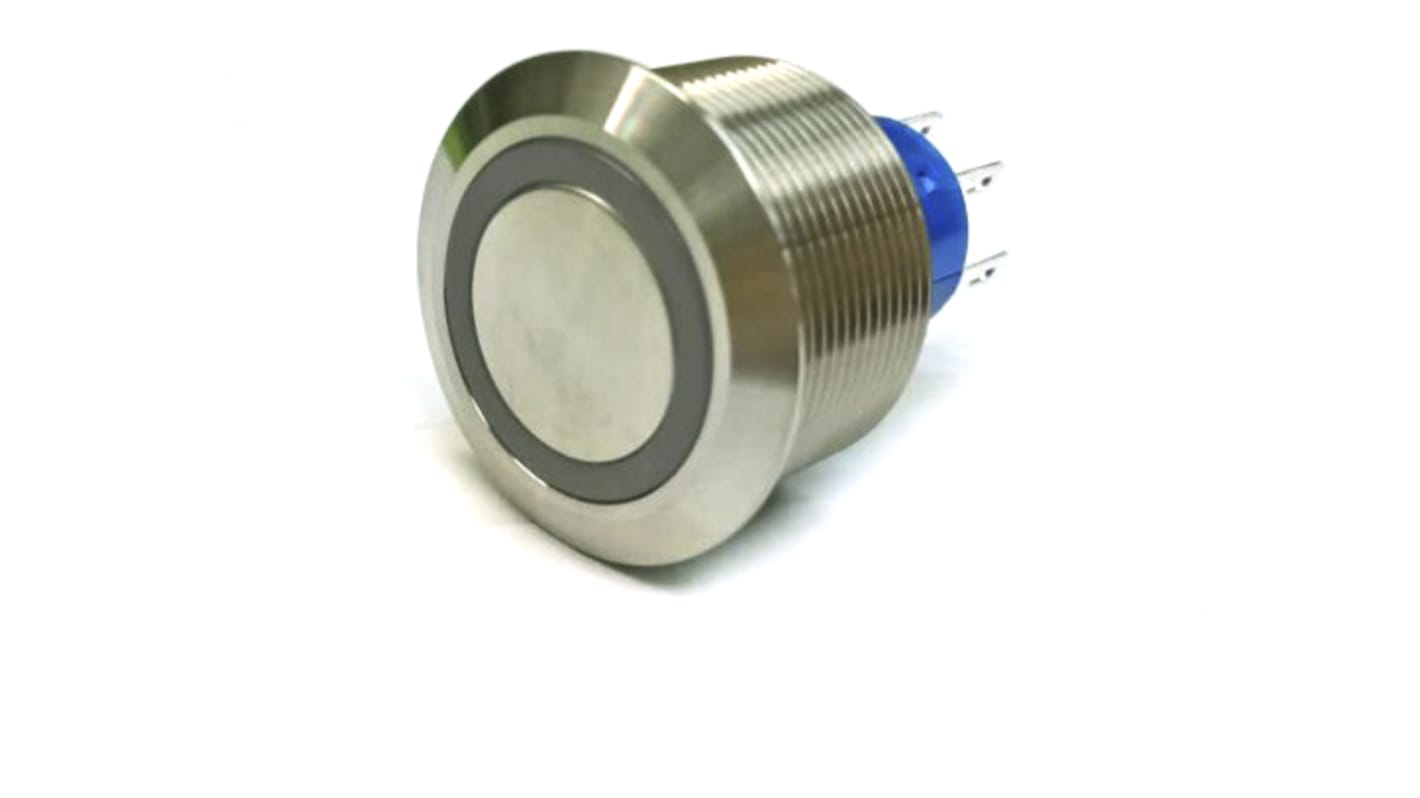

RS PRO MPB25 Series Illuminated Push Button Switch, Momentary, Panel, 25.2 mm Cutout, DPDT, Red LED, IP67, 36 V 250 V

This image is representative of the product range

View all Push Button Switches
Bulk discount available

Subtotal (1 pack of 1 unit)*

$62.43

(exc. GST)

$68.67

(inc. GST)

Add to Basket
Select or type quantity
Being discontinued
  • Final 10 unit(s), ready to ship from another location
Pack(s)
Per Pack
1 - 4$62.43
5 - 9$60.87
10 +$59.94

*price indicative

RS Stock No.:
175-9043
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Actuator Colour

Silver

Product Type

Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Series

MPB25

Panel Cutout Size

25.2 mm

Mount Type

Panel

Contact Configuration

DPDT

LED Colour

Red

Terminal Type

Solder

IP Rating

IP67

Contact DC Voltage

36V

Minimum Operating Temperature

-35°C

Contact AC Voltage

250V

Actuator Style

Flat

Maximum Operating Temperature

70°C

Switch Contact Current

5 A

Standards/Approvals

RS

COO (Country of Origin):
CN

Single Pole Double Throw Anti-Vandal Switches (MPB Series)


IP67 rated. Available in 16mm, 19mm, 22mm, 25mm and high current.

Along with other industrial type applications that require vandal resistance in a public setting.

With a wide variety of options, including illuminated, sealed and long life expectancy.

The distinctive of RS Pro metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.

Applications


Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
