MPN

RS PRO RSEG Series Yellow Spring Return Push Button Head, 22 mm Cutout, IP65

RS Stock No.:: 188-1126
Brand:: RS PRO

RS PRO RSEG Series Yellow Spring Return Push Button Head, 22 mm Cutout, IP65

Bulk discount available

Subtotal (1 unit)*

$7.76

(exc. GST)

$8.54

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 26 unit(s) shipping from 02 February 2026
Plus 123 unit(s) shipping from 02 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	$7.76
5 +	$6.39

*price indicative

RS Stock No.:: 188-1126
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Series	RSEG
	Product Type	Push Button Head
	Cutout Diameter	22mm
	Push Button Colour	Yellow
	Push Button Shape	Round
	Push Button Actuation	Spring Return
	Push Button Style	Round
	Push Button Material	Plastic
	IP Rating	IP65
	Push Button Marking	Unmarked
	Push Button Diameter	30.2mm
	Body/Fixing Collar Included	No
	Standards/Approvals	CCC, CE, CSA, EN 418, EN 60947-1, EN 60947-5-1, EN 60947-5-4, EN 60947-5-5, IEC 60947-1, NEMA ICS-5, UL 508, UR/UL
	Hazardous Area Certification	No

	Select all
	Brand RS PRO
	Series RSEG
	Product Type Push Button Head
	Cutout Diameter 22mm
	Push Button Colour Yellow
	Push Button Shape Round
	Push Button Actuation Spring Return
	Push Button Style Round
	Push Button Material Plastic
	IP Rating IP65
	Push Button Marking Unmarked
	Push Button Diameter 30.2mm
	Body/Fixing Collar Included No
	Standards/Approvals CCC, CE, CSA, EN 418, EN 60947-1, EN 60947-5-1, EN 60947-5-4, EN 60947-5-5, IEC 60947-1, NEMA ICS-5, UL 508, UR/UL
	Hazardous Area Certification No

COO (Country of Origin):: IN

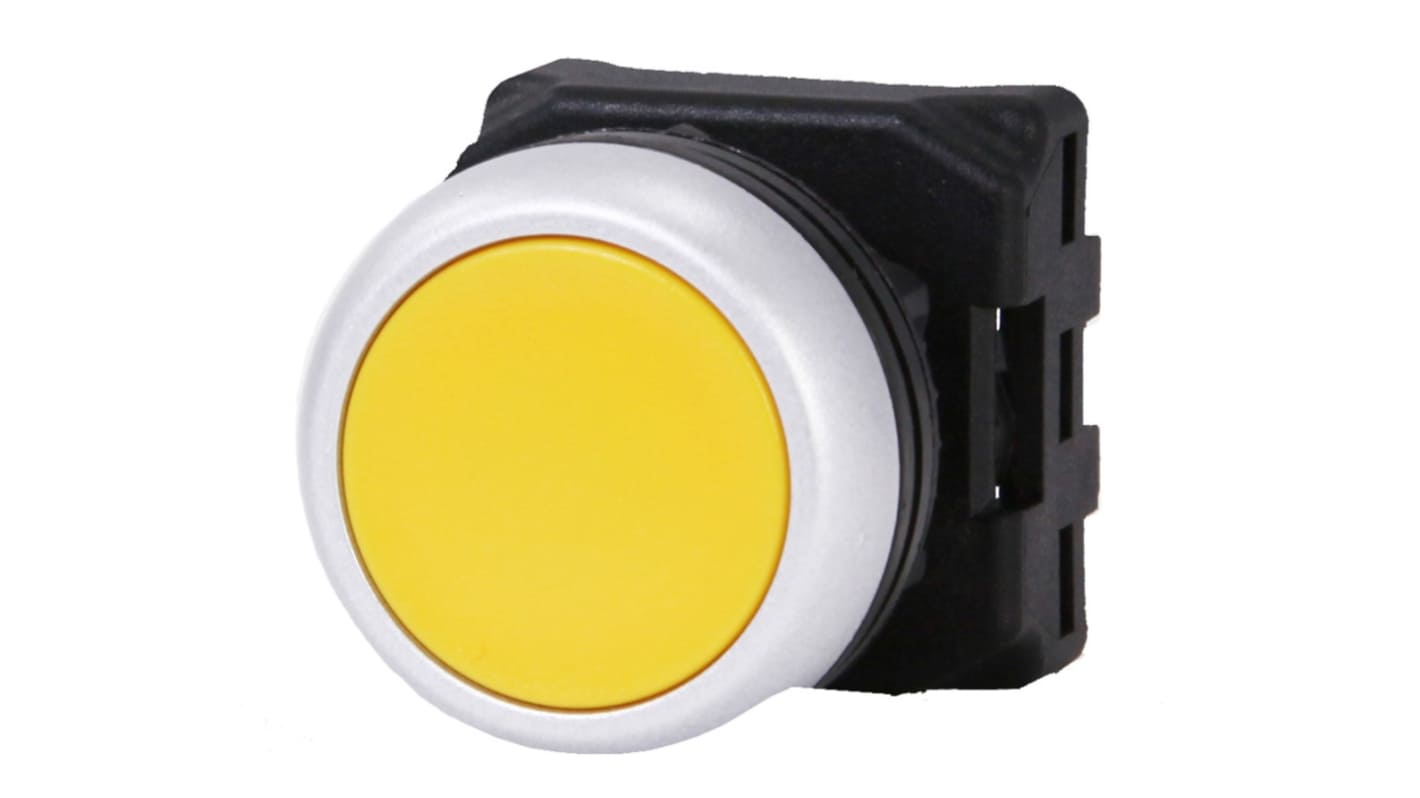

RS PRO Push Button Head

The RS PRO non-illuminated round push-button head is a yellow, flush panel mount device. It has a 22.5mm cut-out mounting diameter. The actuating element is made from plastic material with a modern silver coloured bezel.

Supplied with:

Contact block mounting clip included.

Features and Benefits

• Easy to install

• Mechanical life is more than 1 million uses

• Robust design

• Spring return actuation type

• Stackable design for contact blocks (max 9)

Applications

• Factories

• Industries applications

• Power plants

Certifications

• IP65 rated
