Omron Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, NPN Output, 12 → 24 V dc, IP67

RS Stock No.:: 805-2526
Mfr. Part No.:: E2B-M12KN08-M1-C1
Brand:: Omron

Omron Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, NPN Output, 12 → 24 V dc, IP67

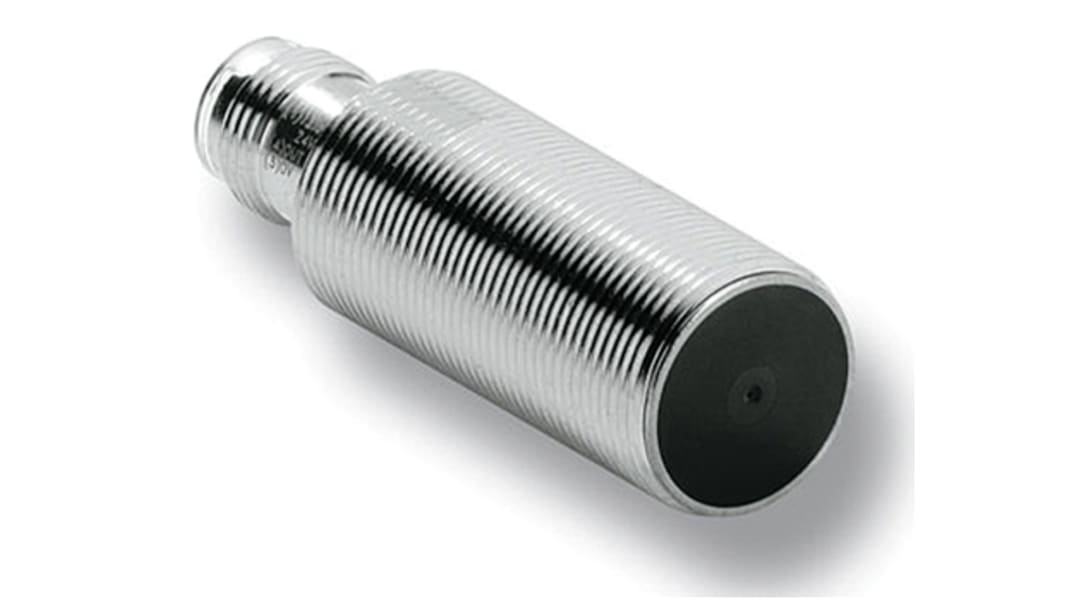

This image is representative of the product range

14 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$74.68

(exc. GST)

$82.15

(inc. GST)

Units	Per unit
1 - 2	$74.68
3 +	$73.82

RS Stock No.:: 805-2526
Mfr. Part No.:: E2B-M12KN08-M1-C1
Brand:: Omron

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

Note

See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors

Specifications

Attribute	Value
Body Style	Barrel
Sensor Technology	Inductive
Thread Size	M12 x 1
Output Type	NPN
Detection Range	8 mm
Terminal Type	4-Pin M12 Connector
IP Rating	IP67
Supply Voltage	12 → 24 V dc
Length	31mm
Maximum DC Voltage	30V
Mounting Type	Non-Flush
Switching Current	200 mA
Housing Material	Brass
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	800Hz
Shielding	Unshielded
Reverse Polarity Protection	Yes
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
