- RS Stock No.:
- 309-8139
- Brand:
- RS PRO
7 In AU stock for next working day delivery
28 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$79.64
(exc. GST)
$87.60
(inc. GST)
Units | Per unit |
1 - 5 | $79.64 |
6 - 29 | $78.47 |
30 + | $64.58 |
- RS Stock No.:
- 309-8139
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

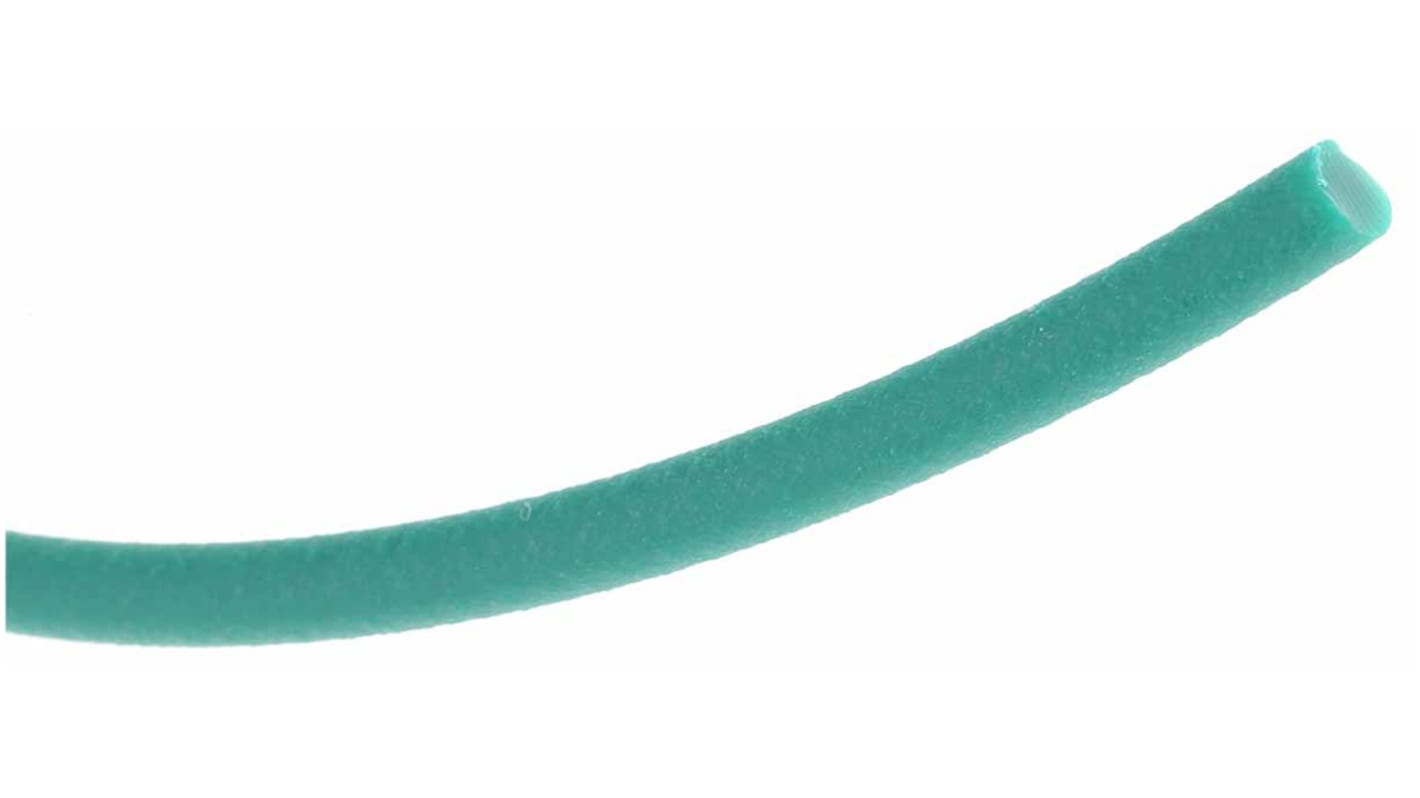

RS PRO Green Round Polyurethane Belt
Use this belt from the RS PRO range with a pulley to drive and change the speed of shafts. You can attach it to an additional belt to increase its length. No special safety measures or joining techniques are needed, so it's easy to use. This round belting is made from a robust and flexible polyurethane (PU) material. This means the rubber won't snap, even when placed under pressure. It's also resistant to both oils and chemicals, meaning it won't become corroded by industrial cleaning products or grease from machines.
This belt can handle heavy loads without breaking, so you can use it in high-capacity pulley applications. You'll find belt and pulley systems used in the engines of trucks, cars and marine equipment. They're also ideal for machinery such as conveyors, compressors and agricultural equipment.
This belt can handle heavy loads without breaking, so you can use it in high-capacity pulley applications. You'll find belt and pulley systems used in the engines of trucks, cars and marine equipment. They're also ideal for machinery such as conveyors, compressors and agricultural equipment.
Features and Benefits
- Green colour
- Diameter of 6 mm
- Not food certified
- Hardness of 88 Type A (Shore Hardness Scale)
- Length of 5 m
- Operating temperature range of -30°C to +80°C
- Minimum pulley diameter of 57 mm
- Working load of 7.6 kg
Specifications
Attribute | Value |
---|---|
Diameter | 6mm |
Colour | Green |
Minimum Pulley Diameter | 57mm |
Length | 5m |
Food Certified | No |
Working Load | 7.6kg |
Hardness | 88Type A |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
