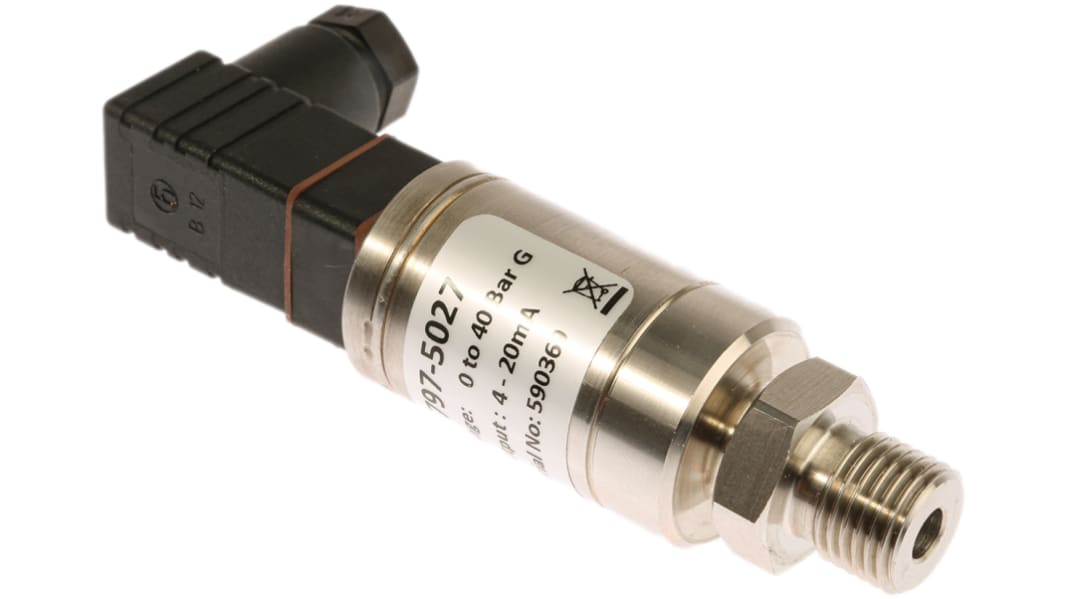

RS PRO Pressure Sensor, 0bar Min, 40bar Max, Current Output, Relative Reading

RS Stock No.:: 797-5027
Brand:: RS PRO

RS PRO Pressure Sensor, 0bar Min, 40bar Max, Current Output, Relative Reading

4 In AU stock for next working day delivery

14 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$555.81

(exc. GST)

$611.39

(inc. GST)

Units	Per unit
1 - 4	$555.81
5 +	$457.44

RS Stock No.:: 797-5027
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: BG

Product Details

RS PRO Pressure Sensors - IND series

These IND-series Pressure Sensors, also known as pressure transmitters from our own RS PRO brand are suitable for wide range of industrial applications. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless-steel housing.

Features and Benefits

• Piezo-resistive thick film ceramic sensor
• Compact and rugged
• BSP 1/ 4
• M12 4-pin connector
• CE Compliant

Material Specifications

• Housing: Stainless Steel 316L

• O ring seals: Viton

• Diaphragm: Ceramic Al2 O3 96%

• Media wetted parts: Housing & connection, O ring seal, diaphragm

• Weight: 100 g

• Installation position: Flexible

• Operational Life: >100x 1000000 cycles

• Insulation resistance >50M Ohms at 50 Vdc

• IP67

Applications

• Temperature testing facilities
• Process control
• Automation
• Industrial measurement

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications

Attribute	Value
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	40bar
Accuracy	±0.25 %
Output Type	Current
Media Measured	Air, Gas, Hydraulic Fluid, Liquid, Water
Process Connection	G1/4
Analogue Output	4 → 20 mA
Electrical Connection	DIN 43650 Type C
Maximum Current	20 mA
Supply Voltage	9 → 32 V dc
Housing Material	Stainless Steel
Mounting Type	Threaded
Maximum Operating Temperature	+135°C
Minimum Operating Temperature	-20°C
IP Rating	IP65
