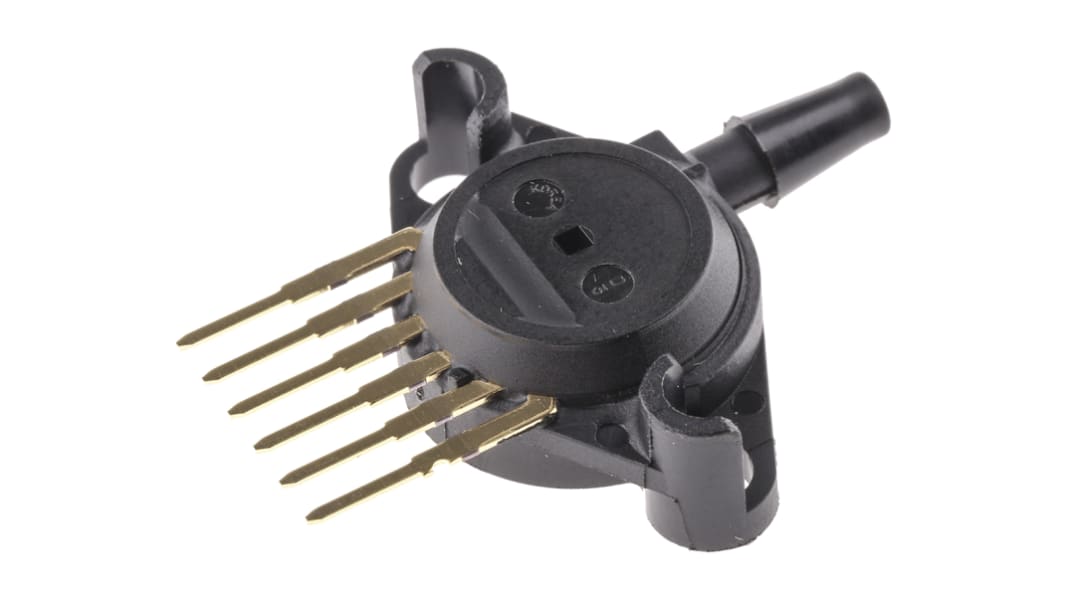

NXP MPX5050GP Gauge Pressure SensorSurface 6 Unibody

RS Stock No.:: 719-1096
Mfr. Part No.:: MPX5050GP
Brand:: NXP

NXP MPX5050GP Gauge Pressure SensorSurface 6 Unibody

View all Pressure Sensor ICs

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

$57.29

(exc. GST)

$63.02

(inc. GST)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 - 4	$57.29
5 - 9	$56.51
10 +	$55.01

*price indicative

RS Stock No.:: 719-1096
Mfr. Part No.:: MPX5050GP
Brand:: NXP

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	NXP
	Product Type	Gauge Pressure Sensor
	Sensor Type	Gauge Pressure Sensor
	Maximum Overload Pressure	200kPa
	Typical Sensitivity	90mV/kPa
	Mount Type	Surface
	Package Type	Unibody
	Pin Count	6
	Minimum Supply Voltage	4.74V
	Maximum Operating Pressure	50 kPa
	Port Type	Single Radial Barbed
	Maximum Supply Voltage	5.25V
	Accuracy	±2.5 %
	Maximum Operating Temperature	125°C
	Height	29.34mm
	Standards/Approvals	No
	Length	29.85mm
	Maximum Output Voltage	4.7V
	Series	MPX5050GP
	Minimum Operating Pressure	0bar
	Minimum Operating Temperature	-40°C
	Automotive Standard	No

	Select all
	Brand NXP
	Product Type Gauge Pressure Sensor
	Sensor Type Gauge Pressure Sensor
	Maximum Overload Pressure 200kPa
	Typical Sensitivity 90mV/kPa
	Mount Type Surface
	Package Type Unibody
	Pin Count 6
	Minimum Supply Voltage 4.74V
	Maximum Operating Pressure 50 kPa
	Port Type Single Radial Barbed
	Maximum Supply Voltage 5.25V
	Accuracy ±2.5 %
	Maximum Operating Temperature 125°C
	Height 29.34mm
	Standards/Approvals No
	Length 29.85mm
	Maximum Output Voltage 4.7V
	Series MPX5050GP
	Minimum Operating Pressure 0bar
	Minimum Operating Temperature -40°C
	Automotive Standard No

Datasheet

COO (Country of Origin):: GB

Differential/Gauge Pressure Sensors up to 115 kPa, NXP

High range pressure differential/gauge sensors measure the difference in pressure between sources when pressure is applied to both sides of the sensor (differential) and atmospheric pressure (gauged).
