Honeywell Technologies HSCMRRN060PDSA3 Differential Pressure SensorSurface 8 SMT
- RS Stock No.:
- 214-1469
- Mfr. Part No.:
- HSCMRRN060PDSA3
- Brand:
- Honeywell

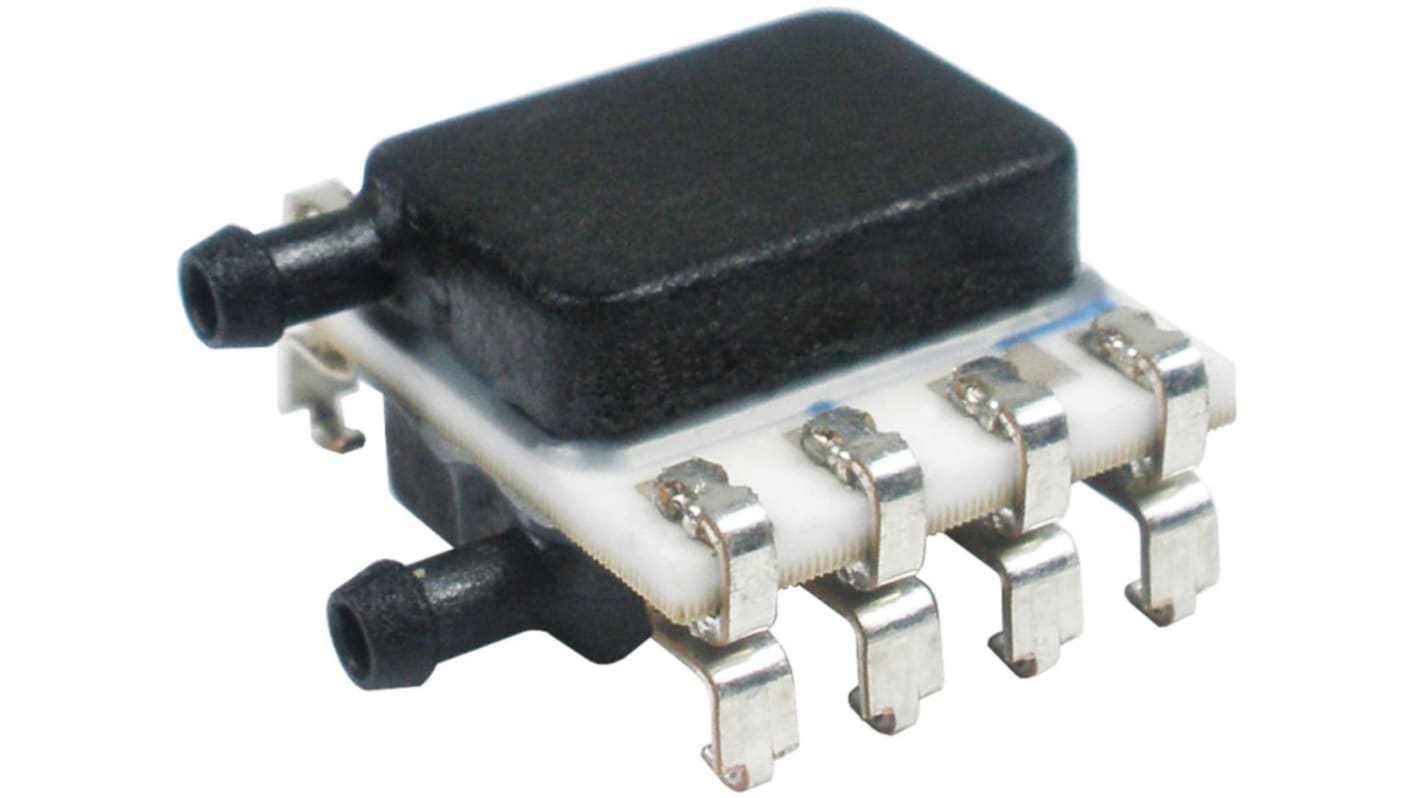

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$76.01
(exc. GST)
$83.61
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $76.01 |
| 13 - 24 | $74.10 |
| 25 + | $72.97 |
*price indicative
- RS Stock No.:
- 214-1469
- Mfr. Part No.:
- HSCMRRN060PDSA3
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Maximum Overload Pressure | 250psi | |
| Product Type | Differential Pressure Sensor | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 60 psi | |
| Port Type | Dual Radial Barbed | |
| Accuracy | ±0.25 % | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Series | HSC | |
| Maximum Output Voltage | 6V | |
| Standards/Approvals | No | |
| Length | 10mm | |
| Height | 13.75mm | |
| Width | 13.3mm | |
| Minimum Operating Pressure | -60psi | |
| Minimum Operating Temperature | -20°C | |
| Automotive Standard | No | |
| Minimum Output Voltage | -0.30V | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Maximum Overload Pressure 250psi | ||
Product Type Differential Pressure Sensor | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 60 psi | ||
Port Type Dual Radial Barbed | ||
Accuracy ±0.25 % | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Series HSC | ||
Maximum Output Voltage 6V | ||
Standards/Approvals No | ||
Length 10mm | ||
Height 13.75mm | ||
Width 13.3mm | ||
Minimum Operating Pressure -60psi | ||
Minimum Operating Temperature -20°C | ||
Automotive Standard No | ||
Minimum Output Voltage -0.30V | ||
Honeywell HSC Series Differential Pressure Sensor, ±0.25% Accuracy -60 to 60psi Operating Pressure - HSCMRRN060PDSA3
This differential pressure sensor converts small pressure differentials into an electrical output for low-voltage systems. It operates across a bidirectional range suited to HVAC and instrumentation tasks, tolerates elevated overloads, and is intended for printed-circuit mounting in Compact assemblies. The device provides a measurable voltage output compatible with common control electronics and functions over a moderate temperature window for many industrial environments.
Features and Benefits:
• ±0.25% accuracy delivers precise readings for control loops
• -60 to 60 psi operating range supports bidirectional measurement
• 3.3 to 5V supply enables low-voltage electronic integration
• 250 psi overload protection prevents damage from pressure spikes
• Dual radial barbed ports allow straightforward tubing connections
• -60 to 60 psi operating range supports bidirectional measurement
• 3.3 to 5V supply enables low-voltage electronic integration
• 250 psi overload protection prevents damage from pressure spikes
• Dual radial barbed ports allow straightforward tubing connections
Applications
• Suitable for airflow monitoring in HVAC systems
• Ideal for differential filter-clog detection
• Used with low-voltage controllers in building automation
• Can be used for lab-scale pressure comparison setups
• Suitable for OEM devices requiring Compact sensing elements
• Ideal for differential filter-clog detection
• Used with low-voltage controllers in building automation
• Can be used for lab-scale pressure comparison setups
• Suitable for OEM devices requiring Compact sensing elements
What electrical output range can I expect from the device?
The sensor provides an output voltage that spans from -0.30V up to 6V corresponding to measured differential pressures.
How is the sensor intended to be mounted on a circuit?
It is supplied in an SMT package with surface-mount configuration and eight electrical connections for PCB integration.
What environmental limits apply to its operation?
Operational temperature limits extend from -20°C to 85°C and it functions reliably within that range.
How many pressure ports are provided and what form do they take?
Two radial barbed ports are fitted to accept tubing for differential pressure connection.
What is the maximum permitted supply voltage for this device?
The maximum supply voltage specified for operation is 5V.
