Power Integrations High Side 1, Off Liner Power Switch IC 8-Pin, DIP-C

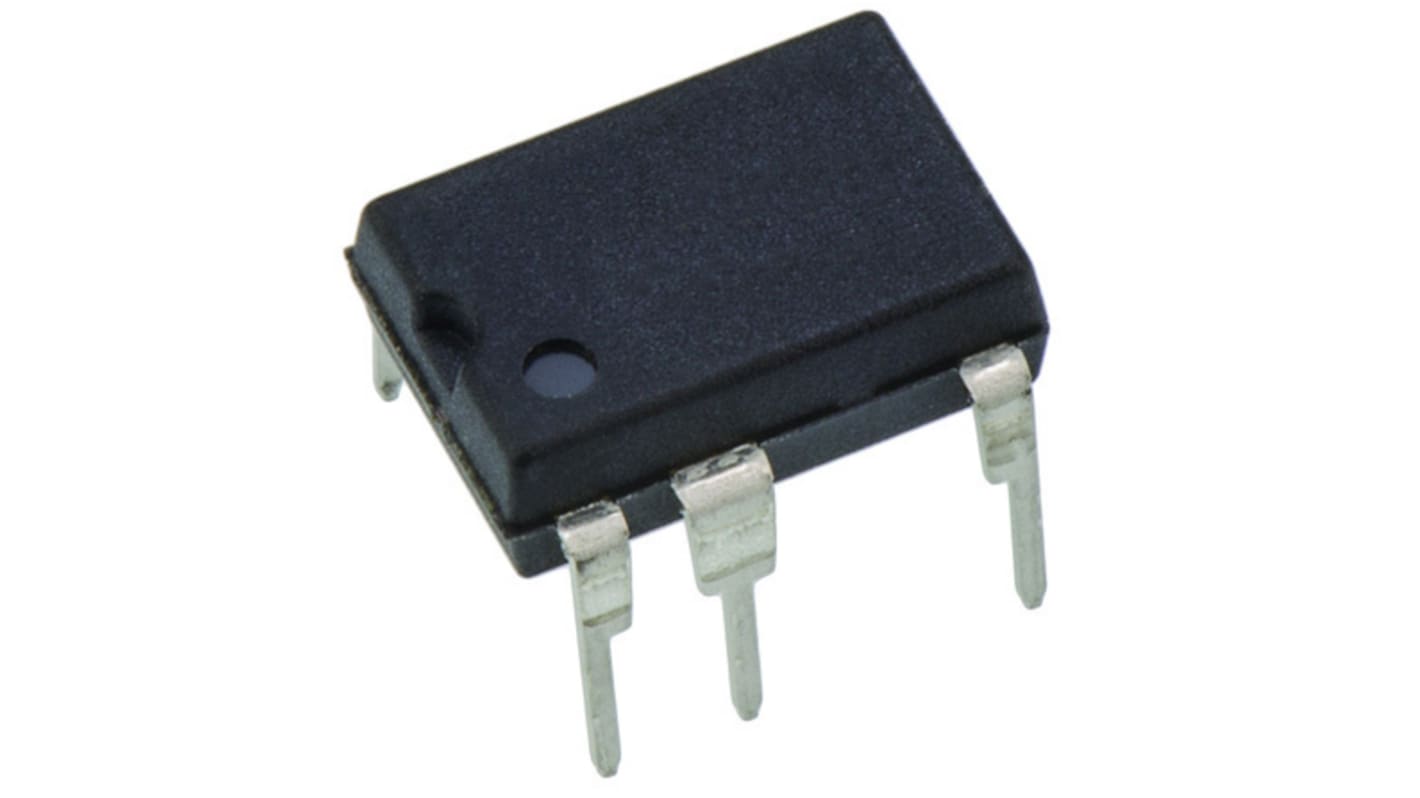

This image is representative of the product range

View all Power Switch ICs

Subtotal (1 unit of 50 units)*

$6.49

(exc. GST)

$7.14

(inc. GST)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
Per unit*
1 +$6.49$0.13

*price indicative

RS Stock No.:
146-8631
Mfr. Part No.:
TNY280PN
Brand:
Power Integrations
Find similar products by selecting one or more attributes.
Select all

Brand

Power Integrations

Power Switch Topology

High Side

Product Type

Power Switch IC

Power Switch Type

Off Liner

Switch On Resistance RdsOn

4.5Ω

Number of Outputs

5

Number of Inputs

1

Power Rating

28.5W

Mount Type

Through Hole

Package Type

DIP-C

Pin Count

8

Operating Current

2550mA

Maximum Operating Temperature

150°C

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Width

6.6 mm

Height

3.68mm

Length

9.83mm

Automotive Standard

No

Series

TNY280

TinySwitch-III incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.

Simple ON/OFF control, no loop compensation needed

Selectable current limit through BP/M capacitor Value

Maximizes MOSFET and magnetics power delivery

Minimizes max overload power

ON-time extension

Self-biased: no bias winding or bias components

Frequency jittering reduces EMI filter costs

Pin-out simplified es heatsinking to the PCB
