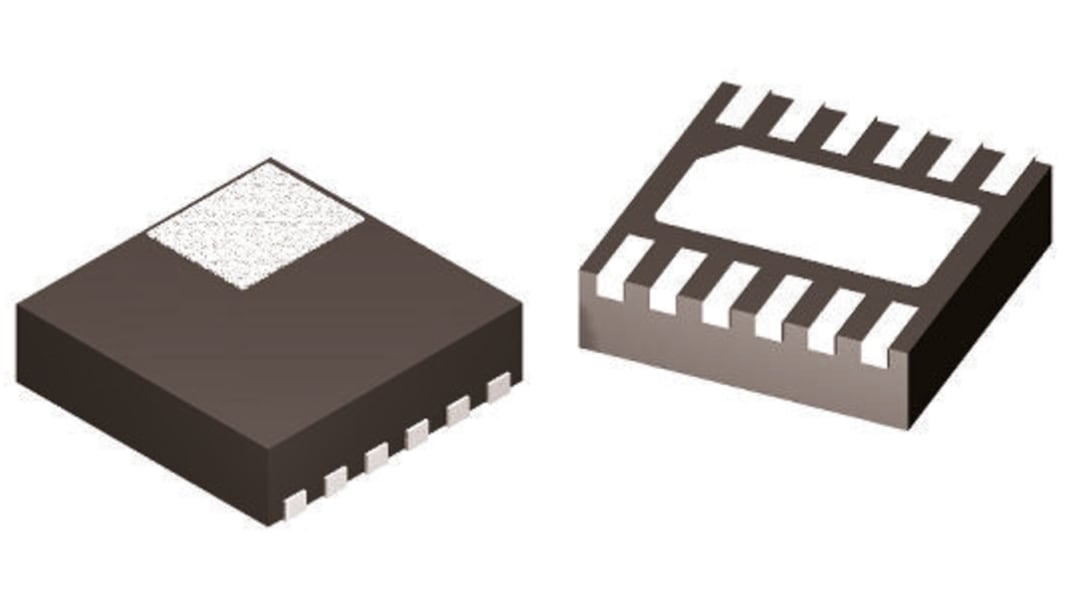

onsemi NCP45560IMNTWG-L, Load Management Power Switch IC 12-Pin, DFN
- RS Stock No.:
- 121-9890
- Mfr. Part No.:
- NCP45560IMNTWG-L
- Brand:
- onsemi
6000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 3000)
$1.88
(exc. GST)
$2.07
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | $1.88 | $5,640.00 |
| 6000 - 9000 | $1.858 | $5,574.00 |
| 12000 + | $1.818 | $5,454.00 |
| *price indicative | ||
- RS Stock No.:
- 121-9890
- Mfr. Part No.:
- NCP45560IMNTWG-L
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Load Switches, ON Semiconductor
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Voltage & Current Management, ON Semiconductor
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | Load Management |
| Switch On Resistance | 5.1mΩ |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Outputs | 1 |
| Power Rating | 3.49W |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 12 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.95mm |
