Infineon Evaluation Board For EiceDRIVER for IGBTs, SiC MOSFETs
- RS Stock No.:
- 232-5725
- Mfr. Part No.:
- EVAL1ED3251MC12HTOBO1
- Brand:
- Infineon
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$193.59
(exc. GST)
$212.95
(inc. GST)
| Units | Per unit |
| 1 - 1 | $193.59 |
| 2 - 2 | $189.72 |
| 3 + | $185.92 |
- RS Stock No.:
- 232-5725
- Mfr. Part No.:
- EVAL1ED3251MC12HTOBO1
- Brand:
- Infineon
Legislation and Compliance
Product Details

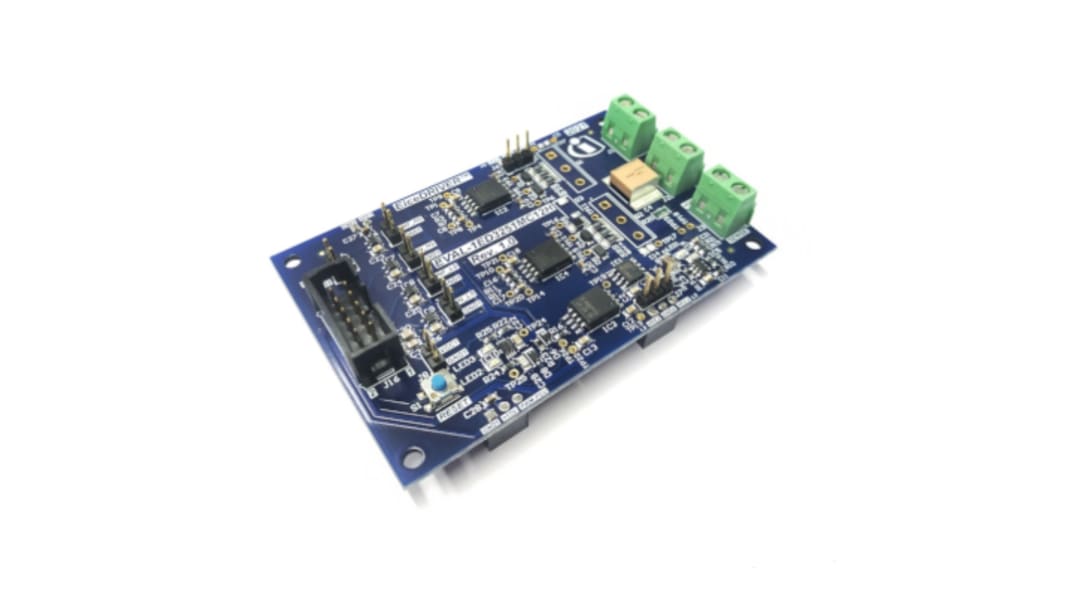

The Infineon's evaluation board is in half-bridge configuration with two-level slew-rate control enabled gate driver ICs 1ED3251MC12H and active miller clamp. This board enables the evaluation of the slew-rate control switching scheme. The switch type can be freely chosen. TRENCHSTOP™ IGBT IKQ75N120CT2 is recommended.
8 A typical sinking and sourcing peak output current
40 V absolute maximum output supply voltage
Maximum 110 ns propagation delay with typ. 35 ns input filter
High common-mode transient immunity CMTI >200 kV/μs
Short-circuit clamping and active shutdown
40 V absolute maximum output supply voltage
Maximum 110 ns propagation delay with typ. 35 ns input filter
High common-mode transient immunity CMTI >200 kV/μs
Short-circuit clamping and active shutdown
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| For Use With | IGBTs, SiC MOSFETs |
| Kit Classification | Evaluation Board |
| Kit Name | Evaluation Board For EiceDRIVER |
