Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase

RS Stock No.:: 217-0858
Mfr. Part No.:: FN406-6-02
Brand:: Schaffner

Schaffner, FN406 6A 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase

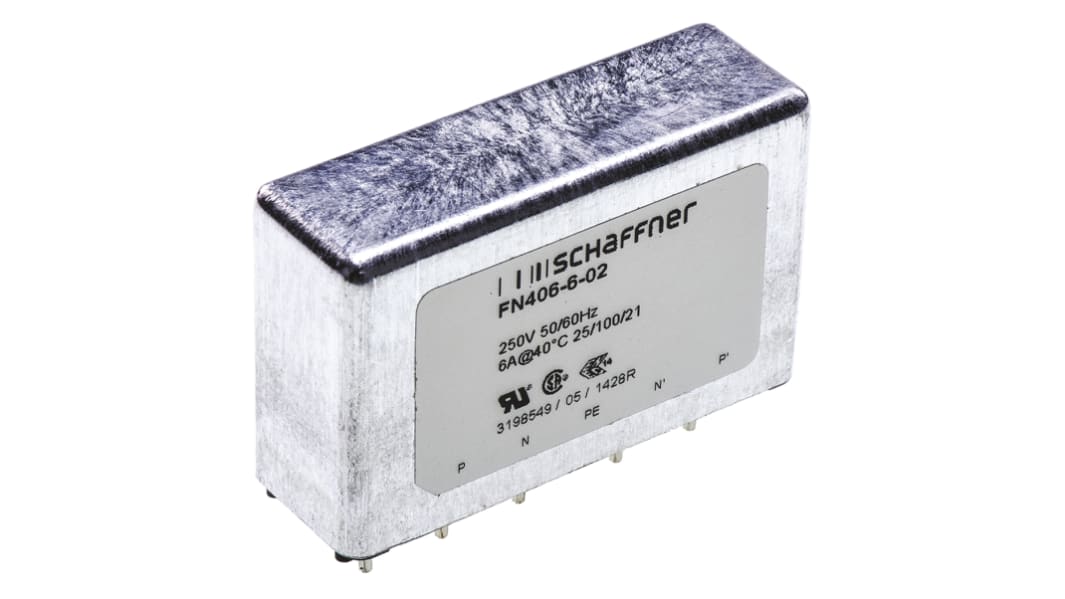

This image is representative of the product range

6 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$18.40

(exc. GST)

$20.24

(inc. GST)

Units	Per unit
1 - 62	$18.40
63 - 124	$18.19
125 +	$17.80

RS Stock No.:: 217-0858
Mfr. Part No.:: FN406-6-02
Brand:: Schaffner

Technical data sheets

Legislation and Compliance

Product Details

FN 406 Series

The FN406 PCB filter is a single-phase filter designed for easy, fast and compact PCB- mounting. A selection on amperage ratings and medical types are designed to offer you the desired standard product.

Can be used in a wide range of applications such as electrical & electronic equipment, small to medium-sized machines & household equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.

Compact PCB-mountable design
Low profile
Optional medical versions (B type)
Good conducted attenuation performance based on chokes with high saturation resistance and excellent thermal behaviour

Approvals

UL recognised, CSA Certified, VDE

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Maximum Current Rating	6A
Maximum Voltage Rating	250 V ac
Mounting Type	PCB Mount
Termination Style	Pin
Number of Phases	1
Series	FN406
Number of Stages	Single Stage
Operating Frequency	400Hz
Length	45mm
Depth	15mm
Height	29.5mm
Capacitance	2.2 nF, 100nF
Inductance	780 μH
Dimensions	45 x 15 x 29.5mm
Minimum Operating Temperature	-25°C
Leakage Current	0.373 mA
Maximum Operating Temperature	+100°C
Resistance	1MΩ
Standards Met	UL 94 V-0
